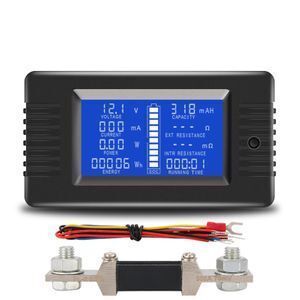

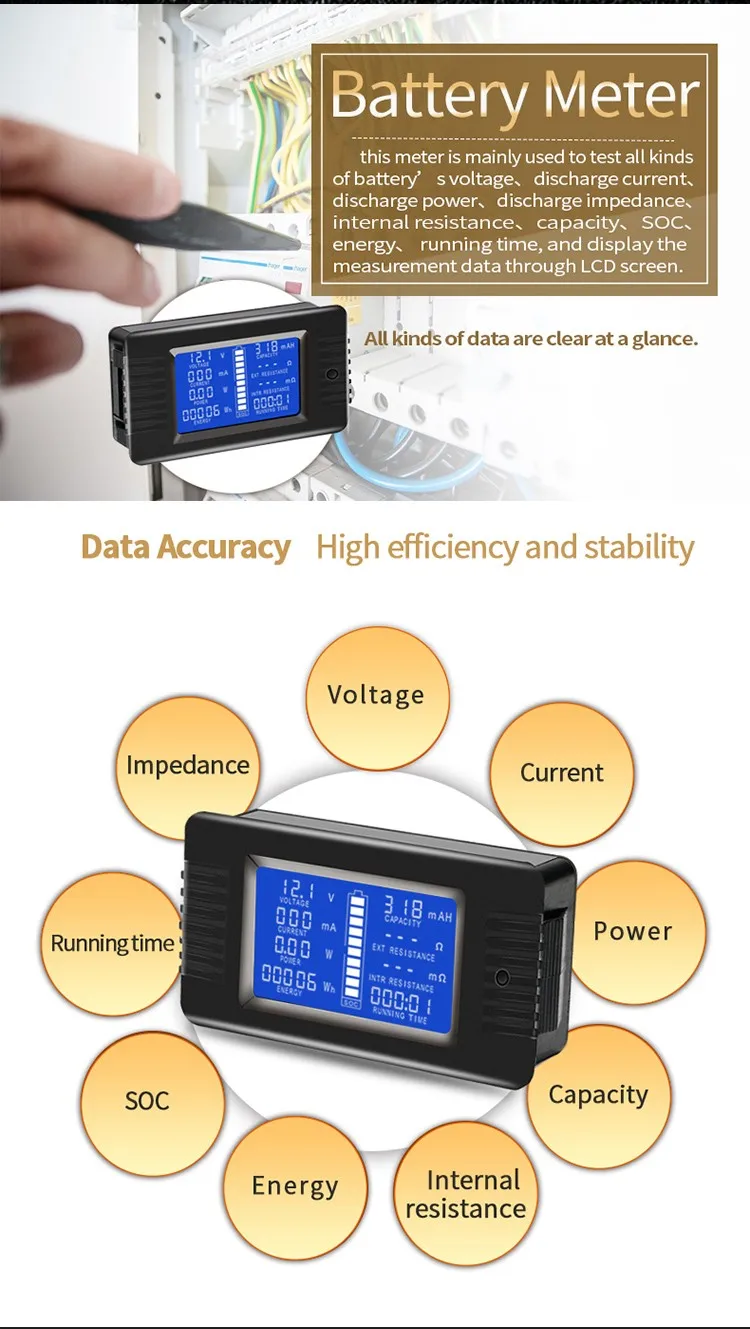

Peacefair PZEM-015 0-200V 300A Discharge Impedance Internal Resistance Capacity Ammeter Power Analyzer DC Energy Battery Meter

Click here to contact
Product details
WEIGHT:299g;Brand Name:peacefair;
Current:0-300A;Capacity:0-1000AH;
Impedance:0-1000Ω;Dimension:89.6*49.6*24.25cm;
Selling Units:Single item;Place of Origin:Zhejiang China;
Package Type:Carton;Single gross weight:0.3 KG;
Voltage Range:0-200V;Power:0-2000W;
Single package size:13X11X5 cm;Internal Resistance:0-999mΩ;
Model Number:PZEM-015;Certificate:CE, FCC;
PACKAGE:carton;
Product Description

Peacefair PZEM-015 0-200V 300A Discharge Impedance Internal Resistance Capacity Ammeter Power Analyzer DC Energy Battery Meter

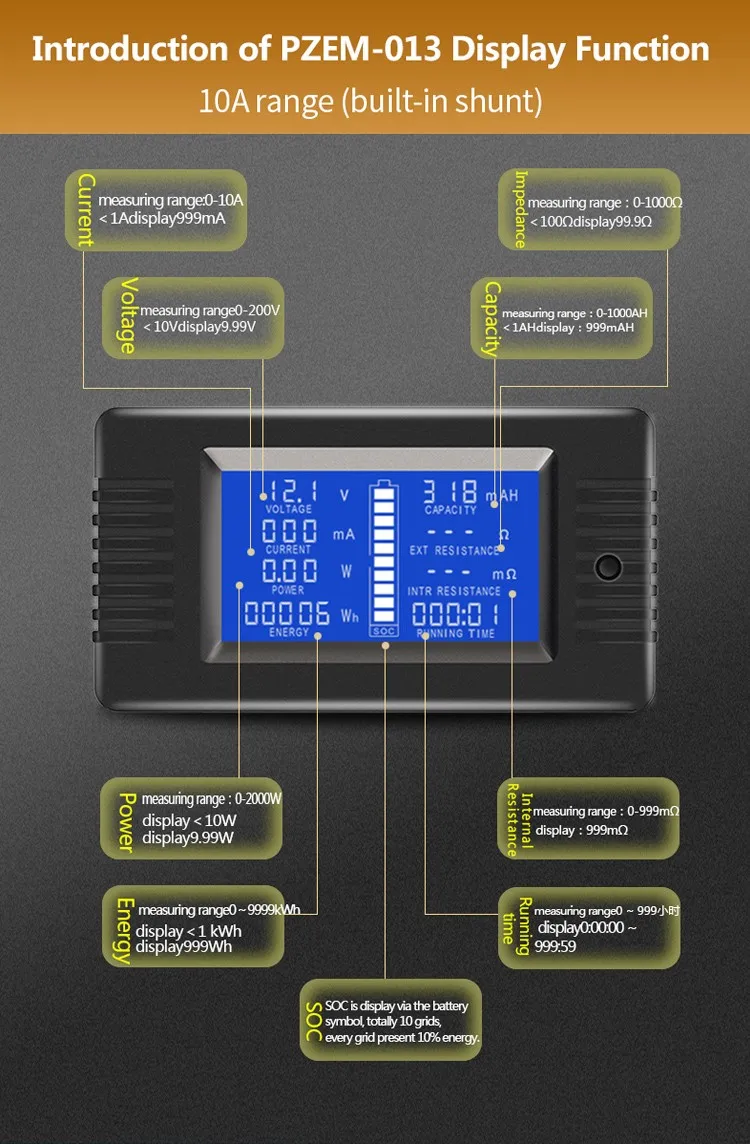

Parameter
Test Range
Resulation
Measurement accuracy
Voltage

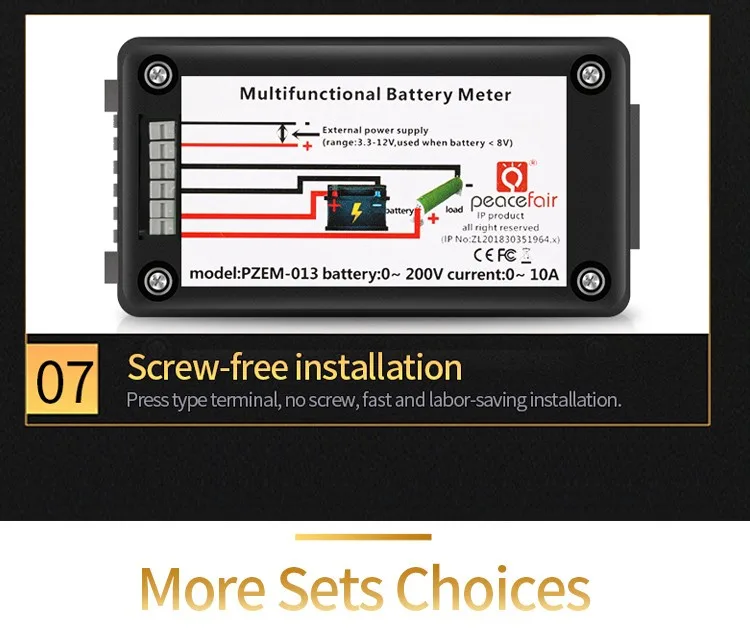

0-200V. (when the test voltage is <8V, please use the independent power supply mode)
0.01V
1%
Current
 0-300A
1mA
1%
Power
0-60000W
0.01W
1%
Impedance
 0-1000Ω
 0.1Ω
1%
 Internal Resistance
 0-999mΩ
1mΩ
1%
Capacity
0-1000AH
 1mAH
1%
Dump energy
Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy
Accumulate energy consumption
0~9999kWh
 1Wh
1%
Running time
 0 ~ 999 hour(without load the time will not accumulate)
