Precise Micro Spot Welder/ Battery Spot Welding Machine For 18650, Lithium Batteries

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE Certificate;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Voltage:	110v/220v;	Rated Duty Cycle:	60%;
Max output power:	15KVA;	Port:	Xiamen Port;
Brand Name:	TMAX;	Place of Origin:	Fujian China (Mainland);
Color:	Request;	Rated Capacity:	15KVA;
Max. Welding Thickness:	0.03 mm~0.5 mm;	Automatic counting function:	yes;
Time setting:	0-2.55s;	Usage:	Spot Welding;
Power(W):	15KVA;	Control mode:	CPU control;
Air supply:	≥0.5MPa;	Warranty:	2 Years;
Supply Ability:	10000 Set/Sets per Month;	After-sales Service Provided:	Online support,Video technical support;
Welding method:	Double pulse;	Dimensions:	470220320mm;
Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;	Welding power:	0-99% adjustable;
Condition:	New;	Weight:	30kg;
After-sales Service Provided:	Overseas service center available;

Product Description

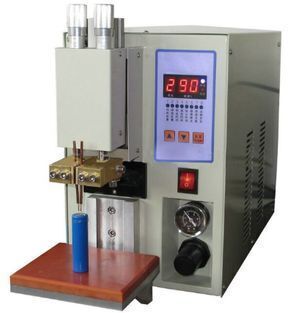

Precise Micro Spot Welder/ Battery Spot Welding Machine For 18650, Lithium Batteries

This pneumatic spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.02-0.2mm with good welding effect.
The Pneumatic model is with smaller volume and weight, easy for international shipping.

1 Microcomputer control, CNC current adjust
2 High precision welding power
3 Digital tube display, keyboard control, welding parameters flash storage.
4 Double pulse welding, make welding more firmly.
5 Small welding sparks, solder joint uniform appearance, the surface is clean
6 Welding times can be set
7 Can set preloading time, the holding time, time to rest, the welding speed can be adjusted.
8 Large power, stable and reliable.
9 Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.

Model	0.02-0.2mm Pneumatic Spot Wedling Machine TMAX-ARP30
Control mode	Pneumatic
Welding current	3000A
Welding power	0-99% adjustable
Welding method	Double pulse
Maximum output power	15KVA
Voltage supply	AC 220V±10% 50Hz±2Hz
Welding way	Ordinary welding and continuous automatic welding
Time setting	0-2.55s
Automatic counting function	yes
Weight	30kg
Dimensions	470220320mm

Product Images

Our Company & Team

Certifications

CERTIFICATE

Strength Proof

All our products are passed the inspection standards included SGS, CE, ASTM with 100% quality.

Cooperative Partner

Packaging & Shipping

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
