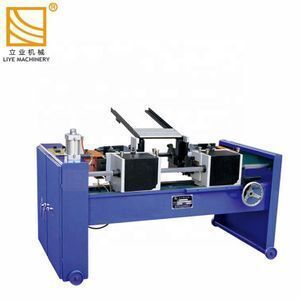

DJ52 Machine tool equipment auto tube bar chamfering machine

Supplier: Zhangjiagang Liye Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sarah Shi
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	DJ52 Machine tool equipment auto tube bar chamfering machine;	Place of Origin:	Jiangsu China;
Speed:	800/1600 RPM;	Port:	Shanghai;
Feature:	Full-automatic;	Supply Ability:	100 Set/Sets per Month DJ52 Machine tool equipment auto tube bar chamfering machine;
Applicable Industries:	machine equipment;	Suitable for bar:	9-30mm;
Payment Terms:	L/C,D/P,T/T;	Key Selling Points:	Easy to Operate;
Warranty:	1 Year;	OEM & ODM:	Available;
Color:	Blue or support customized;	Motor (Kw):	2.2KW;
Brand Name:	Liye;	Measurement size of machine (LWH):	255013001400;
Air pressure(Mpa):	0.6-0.8Mpa;	Weight (KG):	1250;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training;	Packaging Detail:	Plywood box for DJ52 Machine tool equipment auto tube bar chamfering machine.It depends on requirement.;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;

tube bar chamfering machine

Product Description

DJ52 Machine tool equipment auto tube bar chamfering machine

Detail:

Fittings of chamfering machine:

Sample:

Specification:

Specification	Unit	DJ52 ( Dual head )
Suitable for pipe diameter	mm	8-52
Suitable for bar	mm	9-30
Adjustable length of pipe	mm	30-600
Accuracy	mm	±0.1mm
Processing time	S	4S/pipe
Speed of mainshaft	RPM	800/1600
Power	V,Hz	380V,50Hz
Motor	Kw	2.2KW
Air pressure	MPa	0.6-0.8
Measurement size of machine (L×W×H)	mm	255013001400
Weight of machine	Kg	1250

Feature:

Double-end chamfering machine/ tube end/ rod end

Full-automatic chamfering machine
Full-automatic + automatic feed device, material arranging type
Full-automatic type:
1. One bag of hand tools
2. One pair of clamp mould

Special accessories:

1. Intermediate transmission station of different scale

2. Clamp mould of different size
3. Special cutting head and blade

4. Vibrating plate

Material arranging type:

1. Main machine

2. One bag of hand tools

3. One pair of clamp mould

4. Standard cutting head and one pair of cutting head for a complete set
