YJ-355Y Hydraulic Metal circular saw pipe cutter tube pipe cutting machine

Product details
Dimension(L*W*H):850 * 1100 * 1850 mm;Video outgoing-inspection:Provided;
Color:Blue;Packaging Detail:Plywood box for YJ-355Y Hydraulic Metal circular saw(pipe cutter).It depends on requirement.;
Key Selling Points:Easy to Operate;Machinery Test Report:Provided;
Warranty of core components:1 Year;After-sales Service Provided:Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Online support,Video technical support;
Blade speeds:18/36RPM;Applicable Industries:metal pipe machining enterprise;
Single package size:85X110X185 cm;Coolant pump motor:90W;
Marketing Type:Ordinary Product;Rated Power:3.3/4.0 KW;
Showroom Location:None;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Voltage:380V/50HZ;Selling Units:Single item;
Local Service Location:Russia;Type:Pipe Cutting Machine;
Place of Origin:Jiangsu China;Working Pressure:70MPa;
Accuracy of Cutting Angle Material:±1°;Clamping vise:Single;
Brand Name:LYM-Liye Machinery;Max. Pipe Cutting Ability:120mm;
Condition:New;Oil Hydraulic System:1.5 KW Motor Power;
Product name:YJ-355Y Hydraulic Metal circular saw(pipe cutter);Single gross weight:600.0 KG;
Warranty:1 Year;Weight:600kg;
Certification:CE&ISO&BV;Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;

circular saw



Product Description

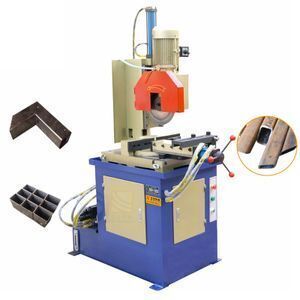

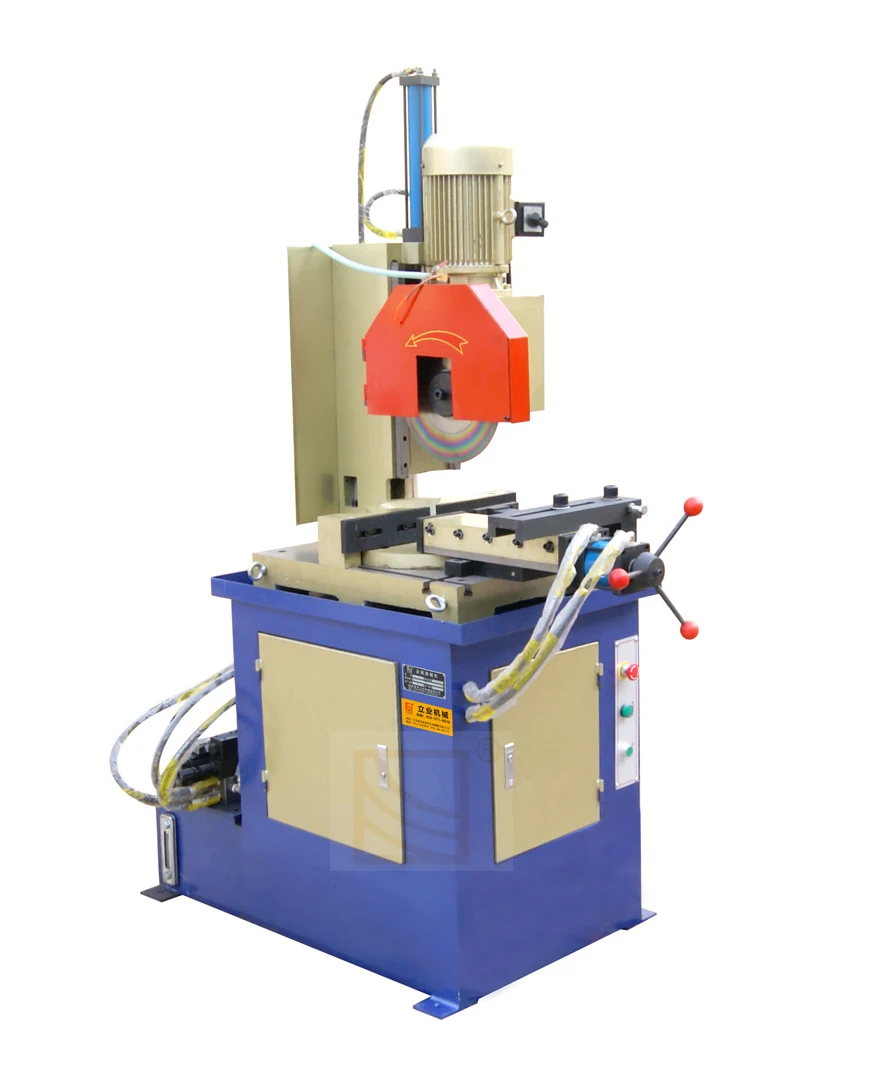

YJ-355Y Hydraulic Metal circular saw pipe cutter tube pipe cutting machine







Specification:

Metal circular saw    The best weapon to cut tubes/ profiles

European-style high-strength machine head, high-efficiency worm provided, turbine drive, reaching high cutting efficiency, no noise or burrs. The machine head can turn for 45° on the left and right, angle is made clearly, which makes adjustment easier. Manual and pneumatic bi-directional clamp, automatic cooling system and hand regulated retaining ruler are provided.



Specification YJ-355Y
Max. Pipe Cutting Ability  Φ 120mm
Saw Blade Drive Motors   3.3/4.0 KW / 380V/50HZor support customized
Saw Blade Speed   18/36 RPM
Angle adjustment range Right Cut :35°   Left Cut: 45°
Accuracy of Cutting Angle Material

±1°

Clamping Vise  Single
Coolant Pump Motor  90W
Oil Hydraulic System   1.5 KW Motor Power
Working Pressure

70MPa

Measurement Size of Machine   850 * 1100 * 1850 mm
Weight of Machine  600KG
Cutting material Iron, stainless steel, copper metal pipe material, solid rod, Angle iron, channel steel, special profile
Warranty 1 Year



Sample:



Feature:

No burrs and no dust

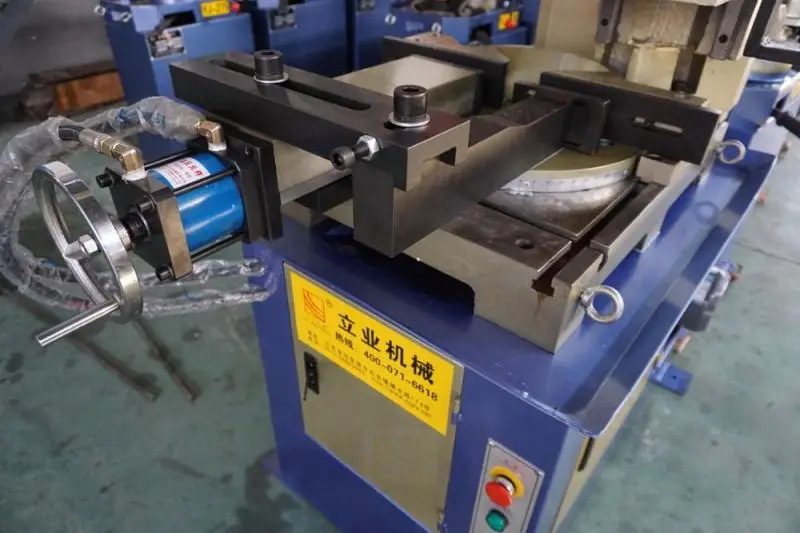

The bilateral and bi-directional clamps at both sides fix parts and ensure smooth cutting face without burrs. The saw cutting causes low noise and pollution.

Accurate-quick-bright and clean

Cutting prevision and speed are superior to that of band saw and bow saw. Meanwhile, the cutting face is bright and clean without heat generation, avoiding secondary processing.

Beveling or groove milling

Machine head can be adjusted to left or right for beveling or groove milling. The angle is accurate and the joint is perfect.

Cooling pump

The circulating cooling system has a large-capacity water tank to ensure service life of saw web and smooth cutting face.

Similar Product

Saw blade:



Company Information

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
