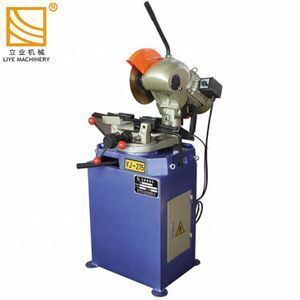

YJ-275S Double clamping vise band saw cutting machine for metal pipe

Supplier: Zhangjiagang Liye Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sarah Shi
Price: $800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight (KG):	180;	Applicable Industries:	machine equipment;
Supply Ability:	100 Set/Sets per Month band saw cutting machine;	Coolant pump motor:	40w;
Voltage:	380V/50HZ;	Max. Pipe Cutting Ability (mm):	80mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Type:	Pipe Cutting Machine;	Place of Origin:	Jiangsu China;
Brand Name:	Liye;	After-sales Service Provided:	Free spare parts,Online support,Field installation, commissioning and training,Video technical support;
Clamping Vise:	Bilateral;	Dimension(LWH):	650mm800mm1530mm;
Application:	Cutting Metal Material;	Certification:	CE&ISO&BV;
Port:	Shanghai;	Cutting Angle:	±45°;
Blade speeds:	60/120RPM;	Key Selling Points:	Easy to Operate;
Cutting material:	Iron, stainless steel, copper metal pipe material, and so on;	Warranty:	1 Year;
Packaging Detail:	Plywood box for YJ-275S Double clamping vise band saw cutting machine for metal pipe.It depends on requirement.;	Payment Terms:	L/C,D/P,T/T;
Rated Power:	2.0/2.4KW;

band saw cutting machine

Product Description

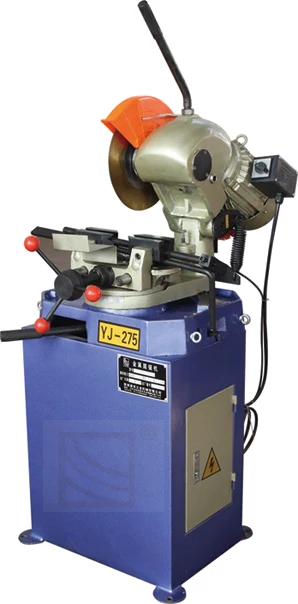

YJ-275S Double clamping vise band saw cutting machine for metal pipe

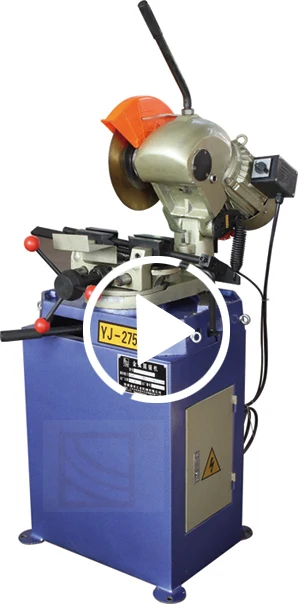

Machine video:

Cutting Solid Bar

Cutting Stainless Steel Pipe

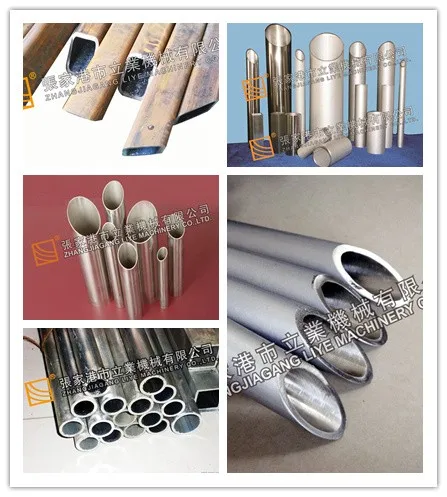

Sample:

Specification:

Specification	YJ-275S
Max. Pipe Cutting Ability (mm)	Φ80
Saw Blade Drive Motors	2.0/2.4KW/380V/50HZ or support customized
Saw Blade Speed	60/120RPM
Cutting Angle	±45°
Clamping Vise	Bilateral
Coolant Pump Motor	40W
Air Pressure(Consumption)	--
Measurement Size of Machine	6508001530mm
Cutting material	Iron, stainless steel, copper metal pipe material, solid rod, Angle iron, channel steel, special profile
Weight of Machine	180KG
Warranty	1 Year, Life-Long Maintenance

Feature:

Metal circular saw The best weapon to cut tubes/ profiles

European-style high-strength machine head, high-efficiency worm provided, turbine drive, reaching high cutting efficiency, no noise or burrs. The machine head can turn for 45° on the left and right, angle is made clearly, which makes adjustment easier. Manual and pneumatic bi-directional clamp, automatic cooling system and hand regulated retaining ruler are provided.

No burrs and no dust

The bilateral and bi-directional clamps at both sides fix parts and ensure smooth cutting face without burrs. The saw cutting causes low noise and pollution.

Accurate-quick-bright and clean

Cutting prevision and speed are superior to that of band saw and bow saw. Meanwhile, the cutting face is bright and clean without heat generation, avoiding secondary processing.

Beveling or groove milling

Machine head can be adjusted to left or right for beveling or groove milling. The angle is accurate and the joint is perfect.

Cooling pump

The circulating cooling system has a large-capacity water tank to ensure service life of saw web and smooth cutting face.
