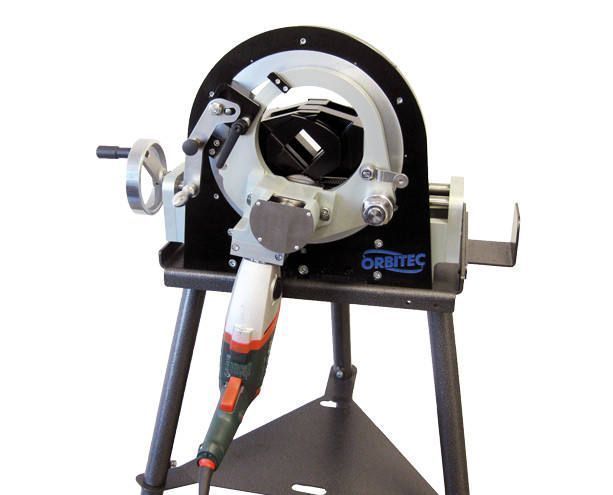

Cutting Pipe Saw for Orbital Weld Joint Preparation - ORS 115, Orbitec Products from Orbitec GmbH

Product Details

4. Electric drive:	single phase AC motor	8. Built-in electricity. variant. Cutting speed:	20 - 360rpm
Applicable industries:	manufacturing plant	Main selling points:	easy to operate
3. Wall thickness:	0.5 - 5 mm	6. Power supply:	1100W / 5.1A
9. Weight:	30 kg	7. Protection level:	two
1. Size range (mm):	OD 5 - 120 mm	brand:	Orbitec Corporation
Showroom location:	Germany	Warranty:	unavailable
Local service location:	Germany	Marketing Type:	normal product
Weight (kg):	30	place of origin; place of origin:	Germany
port:	seligenstadt	After warranty service:	Video technical support, online support, on-site maintenance and repair services
2. Inch size range:	0.196 - 4.724	Packaging Details:	1. Our products are packed according to international seaworthy packaging export packaging standards: cartons, plastic bags, wooden or iron/steel pallets or containers. 2. We can also carefully pack our products according to customer requirements. Please contact us for more details. 3. The package includes a full set of documents and (if necessary) operation and maintenance and engine operation manuals, spare parts list and inspection certificate issued by the manufacturer.
5. Supply voltage (input):	220/230VAC (50/60Hz) or 115V	Video shipment inspection:	not available
automation:	automatic	State of health:	new
Core component warranty:	2 years	Material/Metal Processing:	other
Core components:	other	Mechanical test report:	not available

Product Description

Precise 90-degree cuts are critical for orbital weld joint preparation.

- Portable light unit
- Square cut without burrs
- 2 cast aluminum jaws
- Multiple clamping points on the outside diameter of the tube provide distortion-free clamping
- For cutting thin-walled tubes and elbows
- The saw blade is positioned close to the clamp, providing optimum cutting results even with small pipe diameters
- Blade position indicator
- Precise scale for correct depth of cut

Technical data:
Size range (mm): OD 5 - 120 mm
Size Range (Inches): 0.196” - 4.724”
Wall thickness: 0.5 - 5mm
Electric drive: single-phase AC motor
Power supply voltage (input): 220/230VAC (50/60Hz)
Power: 1100W/5.1A
Protection class: II
Built-in electronic variable cutting speed: 20 - 360rpm
Weight: 30kg

Package includes:
- Track saws and drives
- 1 saw blade
- Tool wallet and tools
- 1 bottle of lubricant
- Transport case with inlay (600 x 800 x 600mm)

Elective:
- Miter Saw ORS 115, 115V (Product No. 1.1.4503) | Other sizes of saws on request
- Stand for ORS Miter Saw (Article No. 1.2.4510)
- for saw blades with wall thickness 1 - 3 mm, diameter 68 mm, 72 teeth (art. no. 1.3.4520)
- For saw blades with wall thickness 2.5 - 7 mm, diameter 68 mm, 44 teeth (art. no. 1.3.4521)
- Saw blades and oil, 250 ml bottle (article no. 1.3.4525)
- chopping board

feature:

Size range (mm)	OD 5 - 120 mm
Size Range (inches)	0.196 - 4.724
wall thickness	0.5 - 5 mm
electric drive	single phase AC motor
Supply voltage (input)	220/230VAC (50/60Hz) or 115V
strength	1100W / 5.1A
degree of protection	two
Built-in electricity. variant. cutting speed	20 - 360rpm
weight	30 kg
