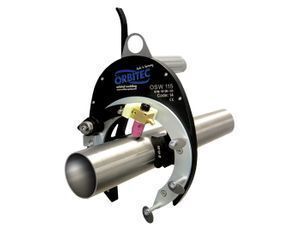

Open-frame weld head for orbital welding - OSW, Orbitec

Description:

The open-frame weld head locates one side of the weld joint. During welding, a gas or water cooled torch and cable assembly rotates around the tube or pipe.

Some advantages of open-frame weld heads:
- Robust construction
- Ease of handling
- Option to add wire feed
- No ‘size specific' collets required, each weld head will accommodate its full tube/pipe OD size range as supplied
- 90deg tilting torch bracket

Weld head | Tube size range mm | inch | weight | item number

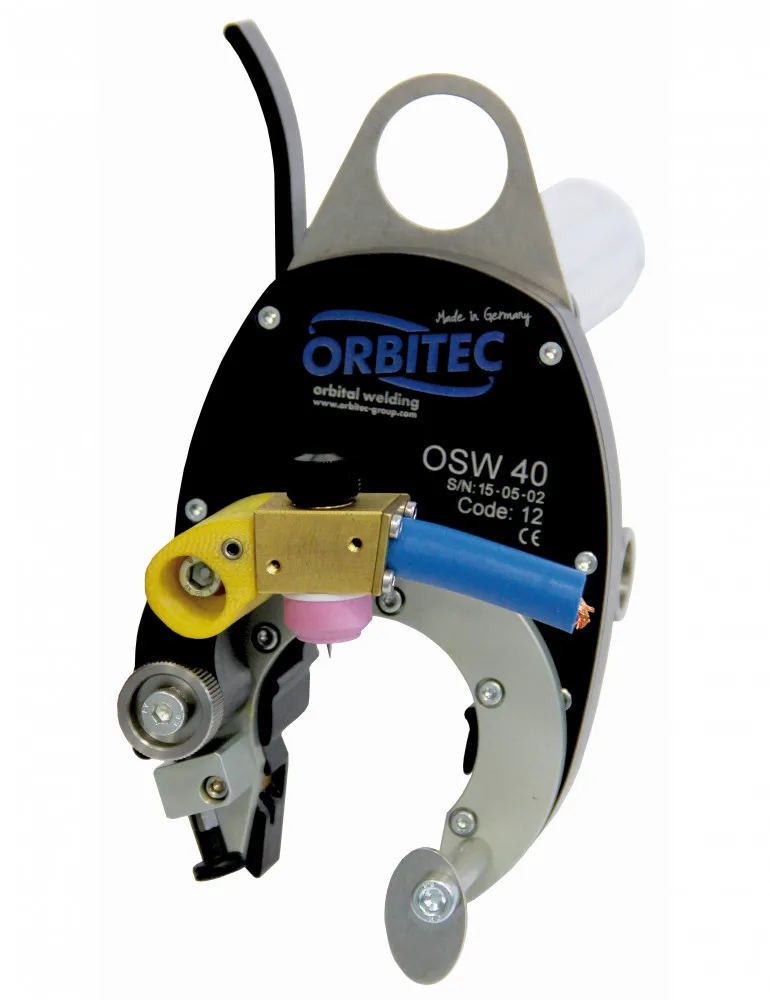

OSW 40 | OD 8 - 40mm | 0.394" - 1.575" | 2kg | 1.3.1001
OSW 80 | OD 10 - 76.2mm | 0.394" - 3.000" | 3kg | 1.3.1101

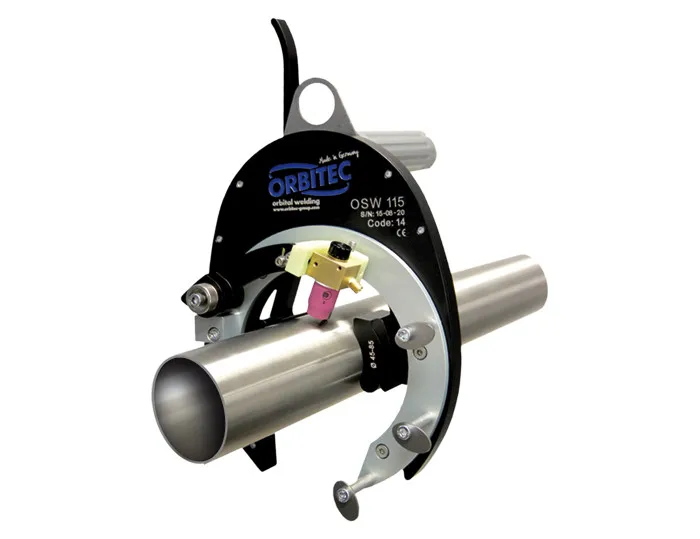

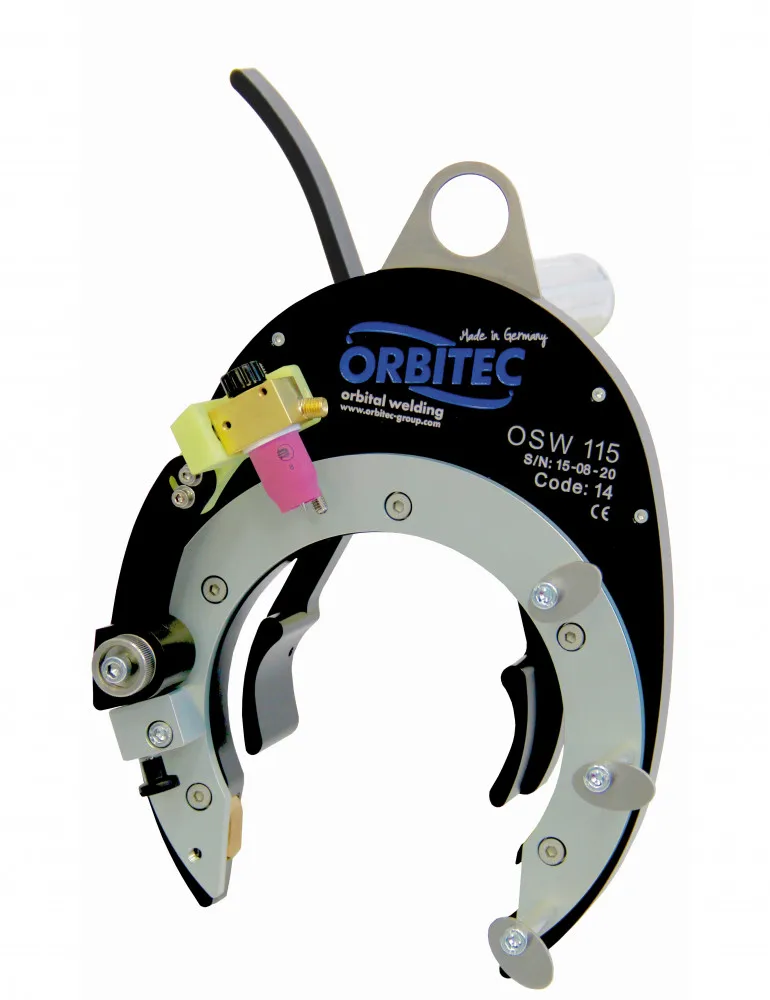

OSW 115 | OD 20 - 114.3mm | 0.787" - 4.500" | 4.5kg | 1.3.1201

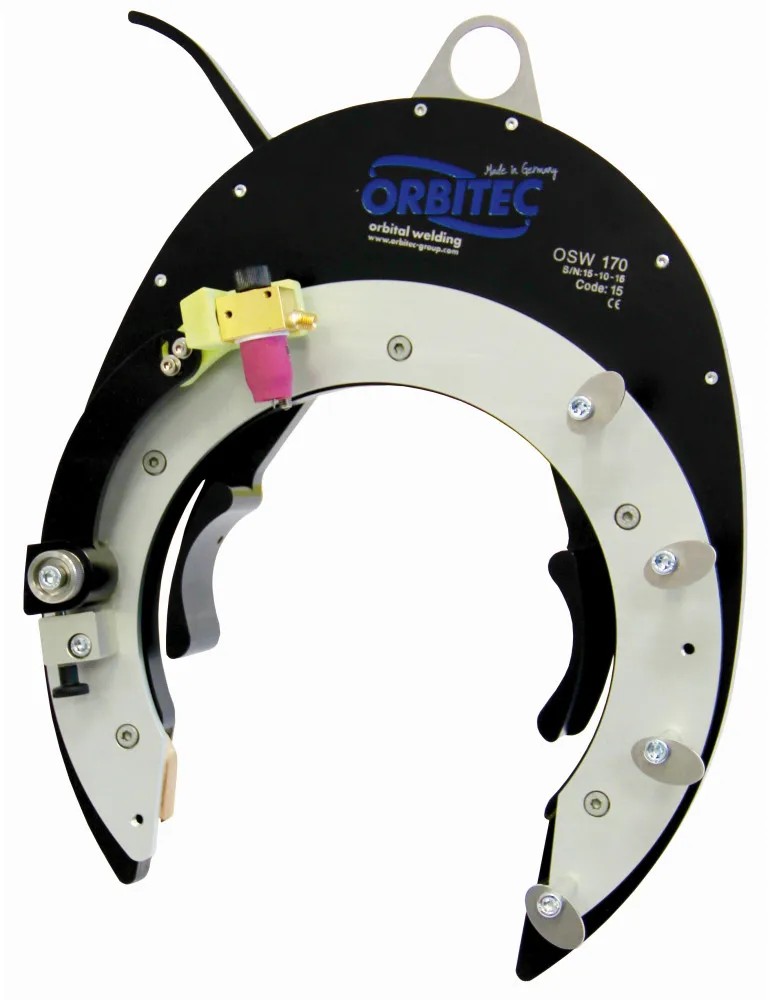

OSW 170 | OD 40 - 168.3mm | 1.575" - 6.626" | 6.5kg | 1.3.1301

Package includes:
- Weld head
- Integrated start/stop-button at the handle
- Clamp ‘shoes'
- Torch bracket
- Mechanical arc gap adjusting screw

Optional: Angular gear complete for OSW on request

Characteristics:

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.
2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.
3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.

Orbitec GmbH

http://ky.to/www.orbitec-group.com

Orbitec was founded in 1984. Orbitec designs, develops and manufactures orbital welding equipment for domestic hire and sales worldwide. Orbitec aims to provide high-quality and easy-to-use products at a reasonable price. Orbitec supplies products and services to industries such as: Pharmaceutical, Biotechnology, Semiconductor, Food & Dairy and Aerospace.
