Oxygen analyzer for precise purging and monitoring of weld quality for orbital welding - Oxy Smart, Orbitec

Supplier: Orbitec GmbH
Region: Hesse, Germany
Contact: Stefan Osswald
Price: $1.03 /piece
Min. Order: 1 piece

Click here to contact

Product details

port:	seligenstadt	2. Dimensions (LxWxH):	160mm x 80mm x 35mm
5. Charging cable:	100-240V with various adapter plugs	1. Measuring range:	5-999ppm oxygen
4. Power supply voltage:	12V	Packaging Details:	1. Our products are packed by sea according to international export packing standards: carton, plastic bag, wooden pallet or iron/steel pallet or container. 2. We can also provide carefully packaged products according to customer requirements. Please contact us for more details. 3. The package includes a complete set of documents and (if necessary) the operation and maintenance and engine operating manual, spare parts list and a set of inspection certificates issued by the manufacturer.
6. Battery life:	9h with Li-ion technology	model:	1.2.5004
payment terms:	Wire Transfer, Western Union, Cash	place of origin; place of origin:	Germany
brand:	Orbital Technology	3. Weight:	0.35kg

Product Description

Measuring equipment is the first step to perfect welding. Accurate purging is critical to controlling weld quality, especially when welding high alloy, corrosion-resistant materials that are highly sensitive to oxygen during the welding process.

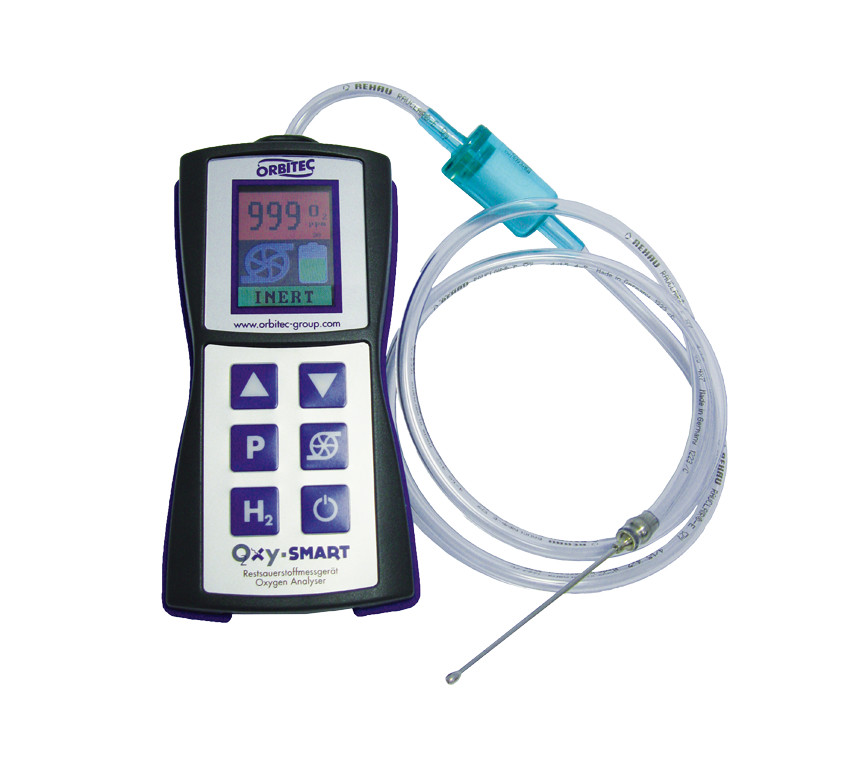

Oxygen Smart:
- Battery powered devices
- for inert gases
- For gas mixtures containing hydrogen (max. 10%)
- Measuring element made of zirconia (maintenance-free), long life thanks to intelligent software
- Rugged and field-ready (rubber protective frame)
- Dust and moisture proof, also suitable for high humidity environments
- Intuitive operator guidance via symbols
- Color enlightenment display
- Battery indicator
- Fault indication in the event of an error

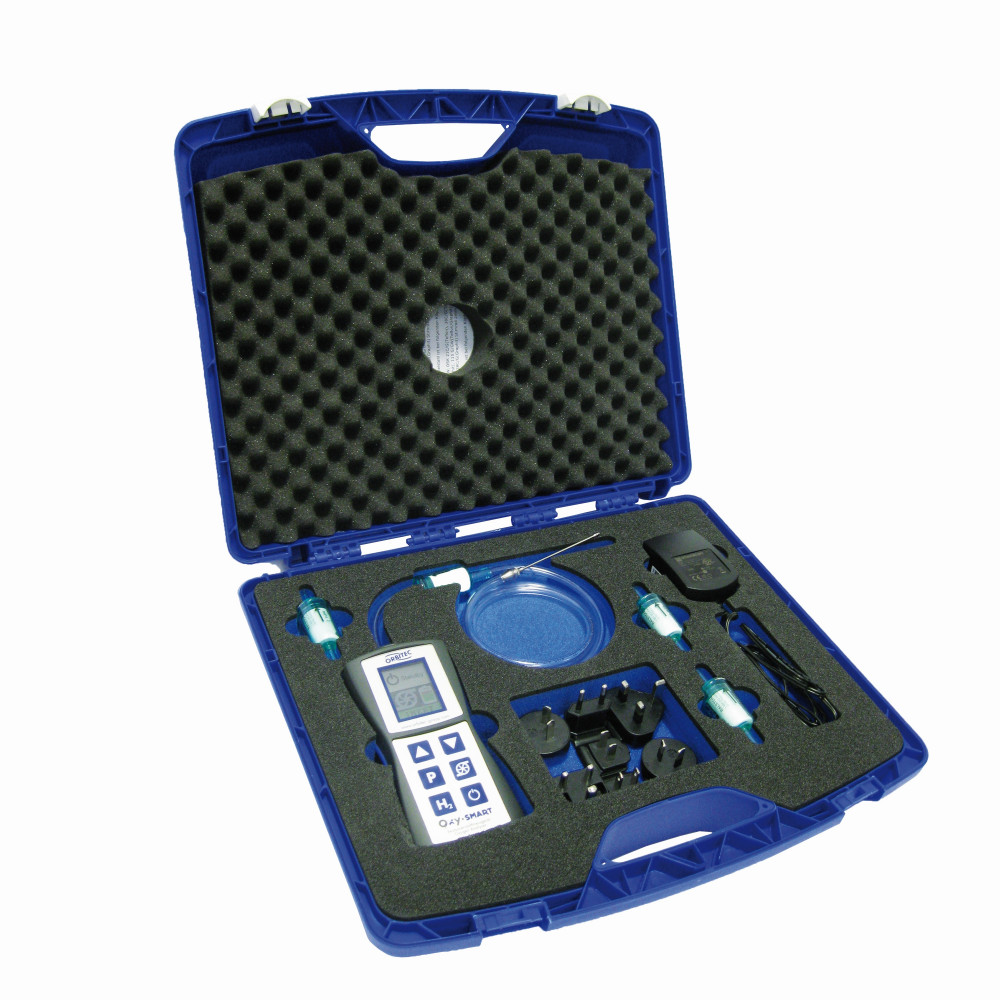

The package includes:
- Oxygen analyzer
- Charging cables with various adapter plugs for worldwide use
- Hose kit, 1m, incl. Filter and stainless steel probe
- Calibration certificate
- Plastic housing with inlay

Optional:
- Purge pressure analyzer PPA 2500
- Spare plastic hose
- Alternate filters
- Other purge accessories such as purge plugs or flexible purge dams

feature:

Measuring range	5-999ppm oxygen
Dimensions (LxWxH)	160mm x 80mm x 35mm
weight	0.35kg
voltage	12V
Charging Cable	100-240V with various adapter plugs
Battery Life	9h with Li-ion technology
