Electric Shearing Machine Electric Shearing Machine

Supplier: Anhui Runbang Heavy Industry Machinery Co., Ltd.
Region: Anhui, China
Contact: Ms Sammi Wang
Price: $3880.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting material:	metal stainless steel carbon steel aluminum	Voltage:	380V 220V optional
Health status:	new	Marketing Type:	2020 New Products
Cutting speed:	10-30 times	Warranty:	12 months, 1 year
Dimensions (LWH):	358013001610 mm	Core component warranty:	24 months
Showroom location:	Egypt, UK, Vietnam, India, Mexico, Thailand, Sri Lanka, Malaysia	Control System:	start control system
Main selling points:	competitive price	Cutting thickness:	0-1.5 mm
Name:	Electric Shearing Machine Electric Shearing Machine	application:	Industrial Metal Cutting
Mechanical test report:	if	type:	Shearing machine
Supply capacity:	5 sets per month	payment terms:	L/C, Western Union, T/T, MoneyGram
Packaging Details:	Plastic film or according to customer's requirements HS Code: 84623990 Electric Steel SS Aluminum Shearing Machine	Cutting method:	Mechanical
Applicable industries:	manufacturing plant	deliver goods:	10 working days
After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support	Weight (kg):	1000 kg
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, pump	rated power:	3 kW
brand:	rbqlty	Origin:	Anhui, China
Video outbound inspection:	if	Certification:	EU CE certification
color:	customizable	port:	Wuhu/Shanghai
Local service locations:	Egypt, UK, Vietnam, India, Mexico, Thailand, Malaysia, Sri Lanka	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services

Product Description

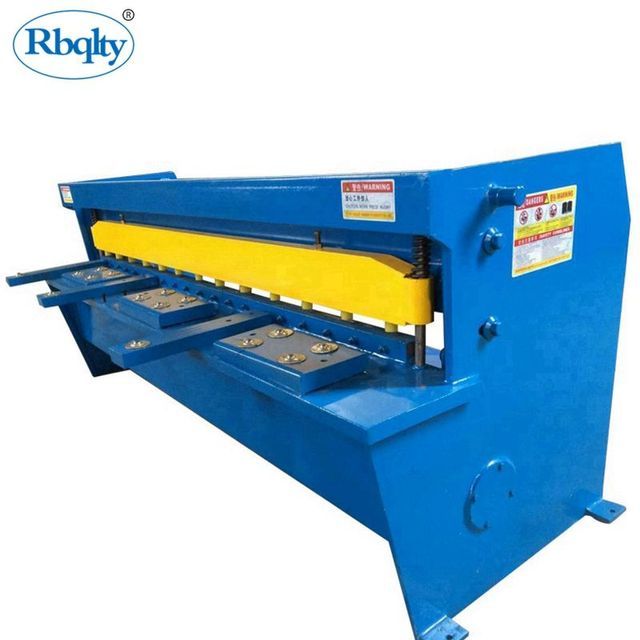

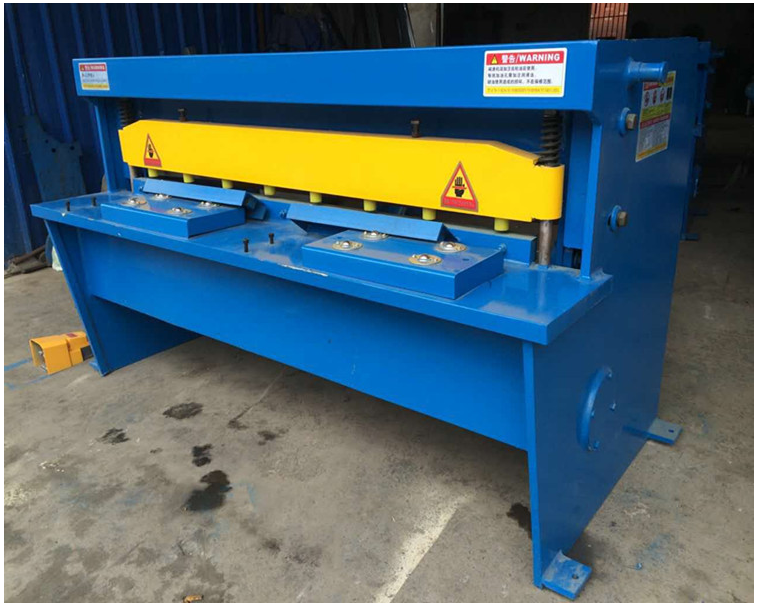

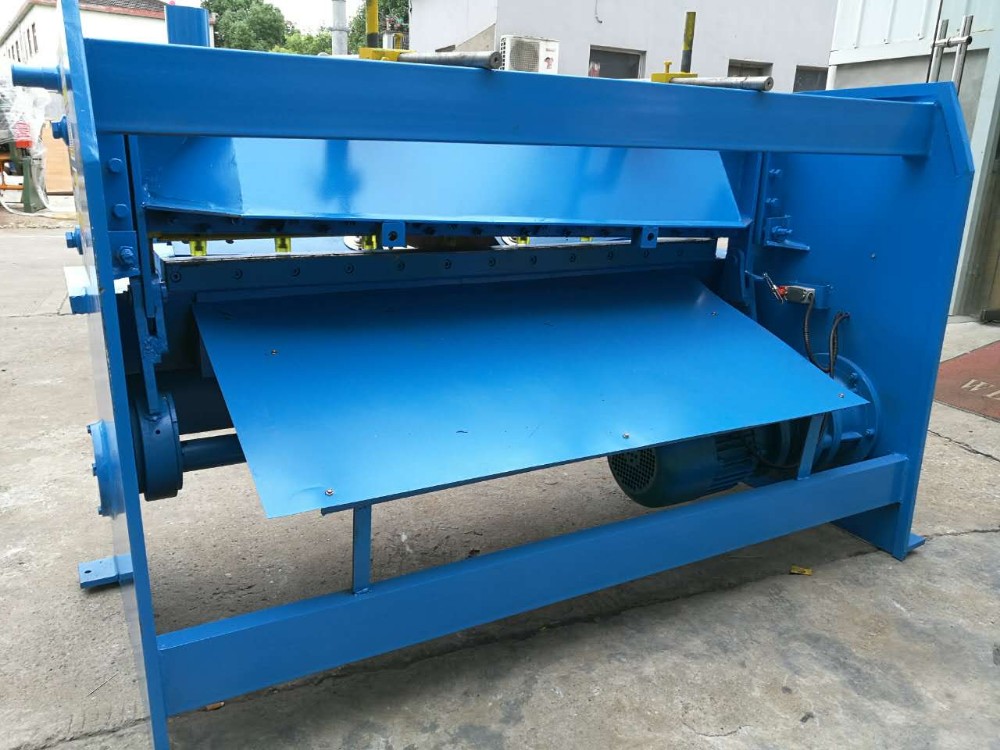

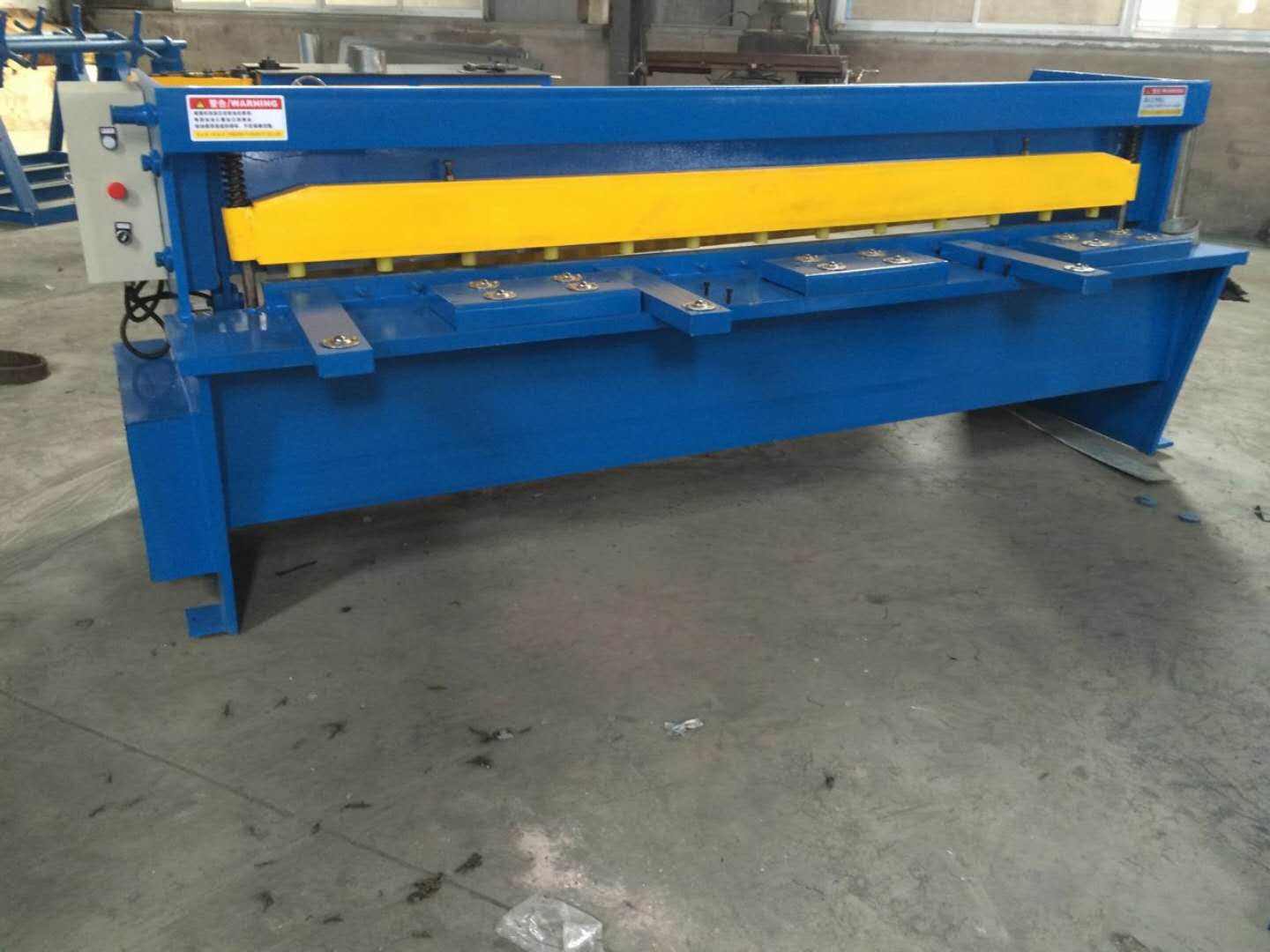

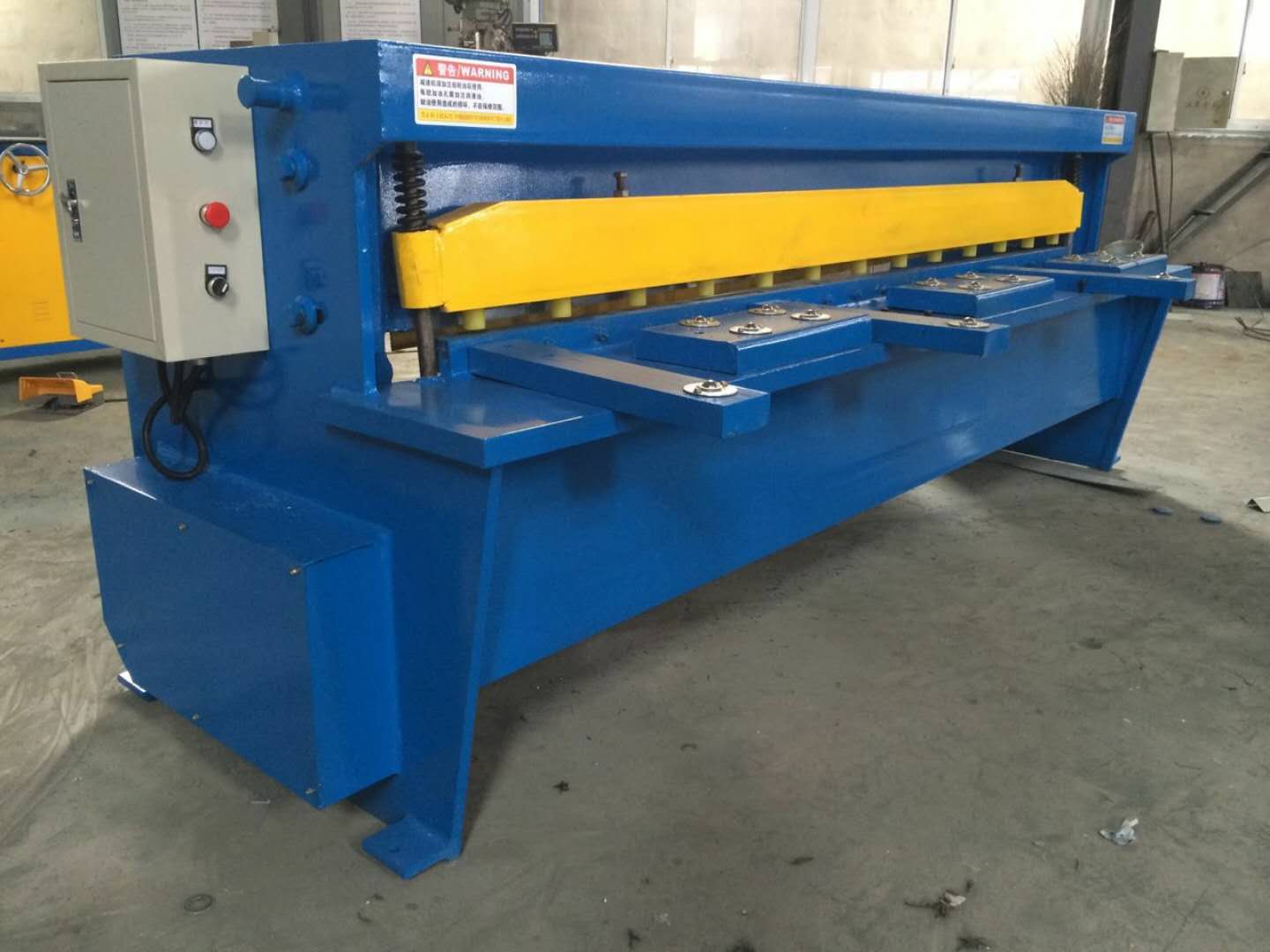

Electric Shearing Machine Electric Shearing Machine

Shearing machine description

1. Electric to cutThis machine is used for online shearing of metal sheets. The tensile strength of metal materials should be less than 450N/mm2. Non-metal materials include rubber and plastic. The temperature of the hot plate should be lower than 50°C during shearing. This machine can only make intermittent For shearing, if the tensile strength is high, the shear thickness should be reduced.
2,Electric Shearing MachineSuitable for uncoiling, leveling, shearing and other workshops of sheet metal processing production lines
3, electrical to cutmachineThe base is welded by steel plate, with compact structure and good rigidity.
4,The movement track of the blade is precision cast copper, with low friction
5,The upper guide rail can be adjusted until a good cutting section is achieved, and the lower blade can be adjusted by welding screws to make the cut smooth
6,The feeding device adopts spring pressure, and the clamp has a gasket, which has a large pressure and is not easy to damage the surface of the plate.
7, electrical to cutmachineusethe sCompletely independent closed gearbox transmission system, direct drive, compact structure, good gear lubrication, low noise and long life.
8,electrical to cutmachineEquipped with pneumatic clutch.

Technical data of shearing machine

Model	Maximum Cutting Thickness(mm)	Maximum cutting width(mm)	Stroke number(rpm)	Front angle (°)	Rear tooth adjustment distance(mm)	Main motor power (kw)	Dimensions (mm)
3*1200	3	1200	20	2°25'	350	3	201515001300
3*1300	3	1300	20	2°25'	350	3	211515001300
3*1500	3	1500	20	2°25'	350	3	251515001300
4*2000	4	2000	20	1°30'	500	5.5	320013001610
4*2500	4	2500	20	1°30'	500	5.5	358013001610
4*3200	4	3200	20	1°30'	600	7.5	438019001600
4*4000	4	4000	20	1°30'	600	7.5	465018201700
6*2000	6	2000	twenty four	2°	500	7.5	318017651550
