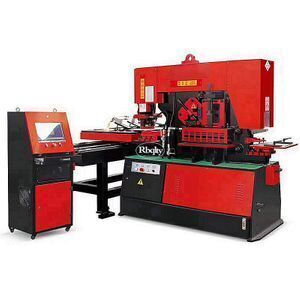

Q35Y-20 multifuncional section bar hydraulic punching and shearing machine
- 5000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| CNC or Not: | Normal; | Model Number: | Q35Y-20; |
| Warranty: | 1 year; | Size: | 1860*800*1900mm; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Raw Material: | High srong steel; |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; | Material: | Q235; |
| Selling Units: | Single item; | Color: | Customized; |
| Single gross weight: | 2.4 KG; | Machine Type: | shearing and punching; |
| Brand Name: | rbqlty; | Available bend profiles: | Channel Bar; |
| Material / Metal Processed: | Alloy,Stainless Steel,Aluminum; | Voltage: | 418/380/240; |
| Power Source: | Hydraulic; | Single package size: | 190X95X200 cm; |
| Showroom Location: | None; | Condition: | New; |
| Applicable Industries: | Manufacturing Plant; | Weight (T): | 2.4; |
| Nominal Force (kN): | 900 kN; | Keyword: | Q35Y-20 multifuncional hydraulic metal iron worker machine; |
| Place of Origin: | Anhui China; | Certification: | CE; |
| Machine Type: | Hydraulic Ironworker; | Motor Power (kW): | 7.5; |
| Key Selling Points: | Multifunctional; | Local Service Location: | None; |
| Extra Services: | steal punching and shearing; |
Product Description
Q35Y-20 multifuncional hydraulic metal iron worker machine
1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4. 2 independent hydraulic cylinders
5. 2 shielded foot controls
6. 2 Separate Die Openings for over sized punching
7. 5 working stations for wide applications
8. power inching on all 5 work stations
9. plate shear support table and notching table
10. adjustable stroke controls with indicators on both cylinders

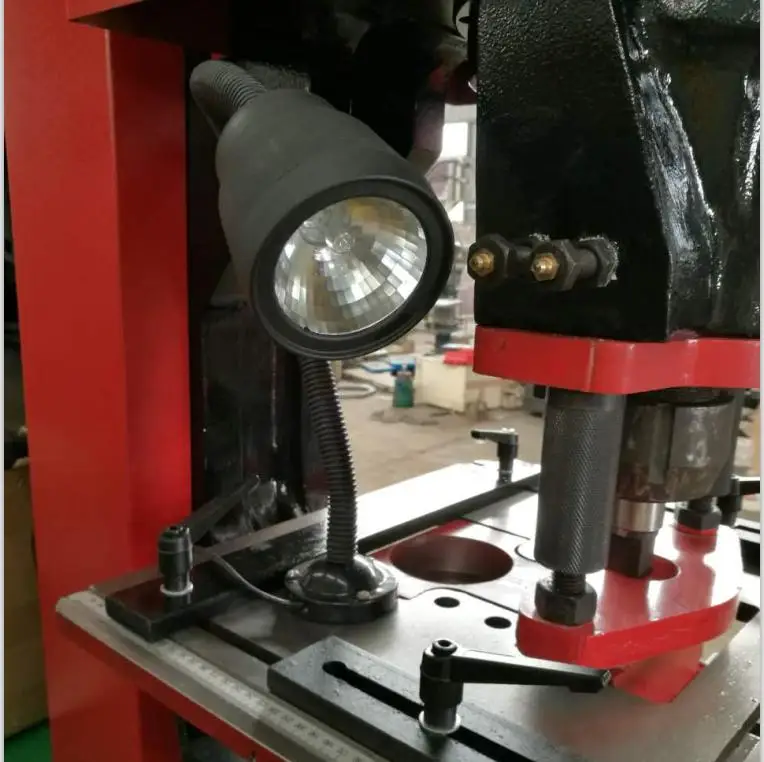

11. punching machine: Movable work light
12. overload protection on hydraulic system
13. electric back gauge
14. optional bending attachment

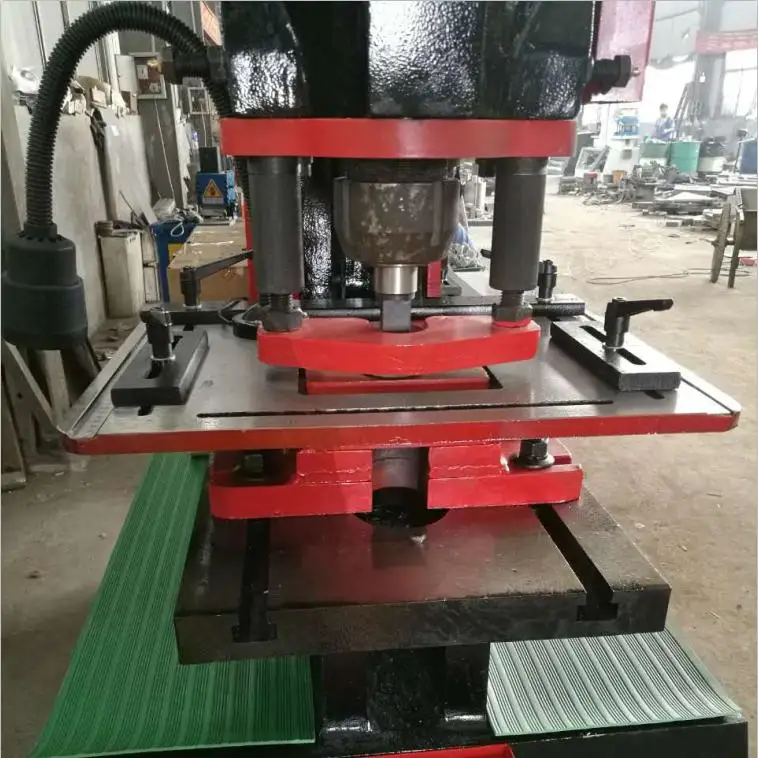

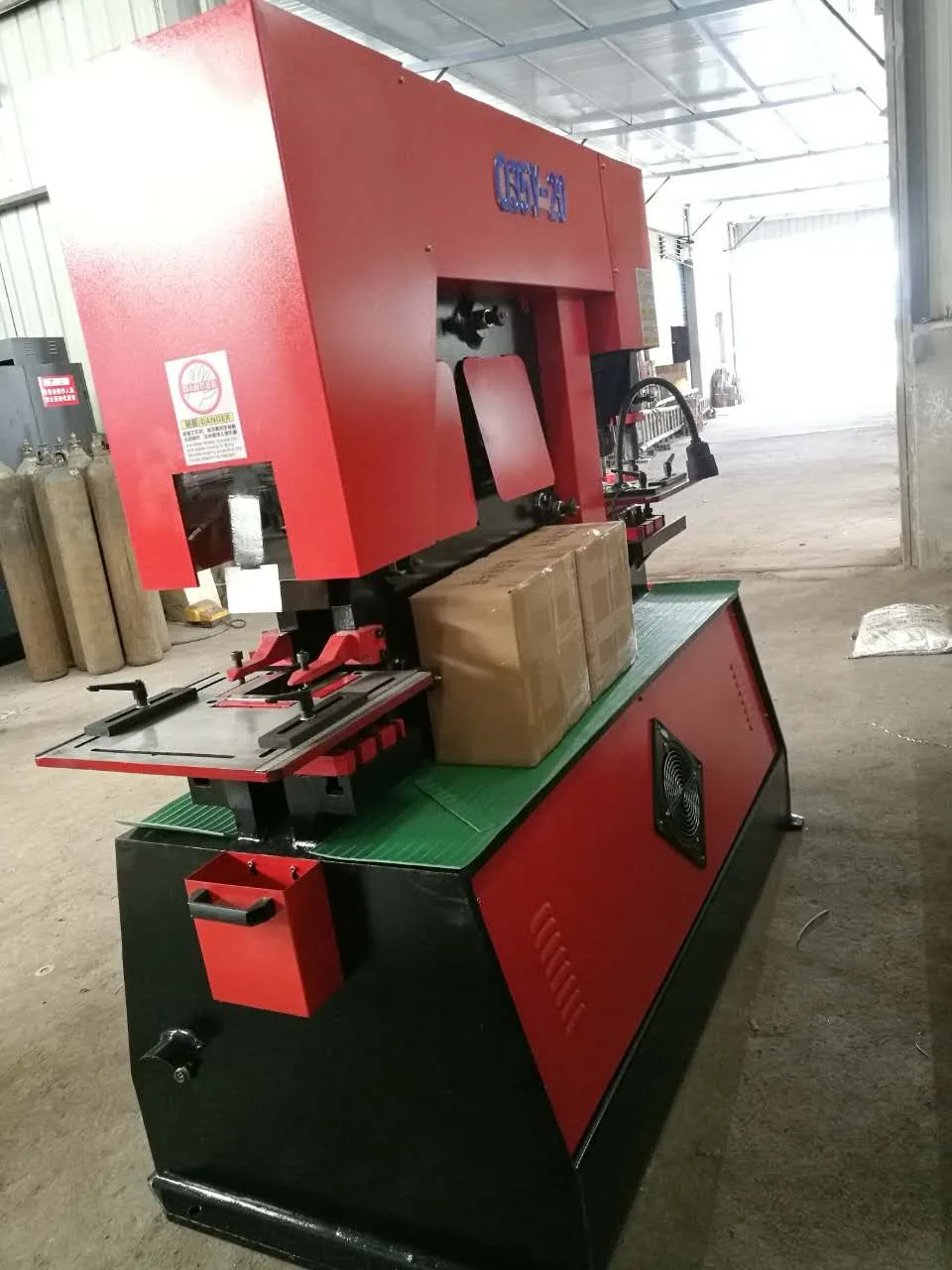

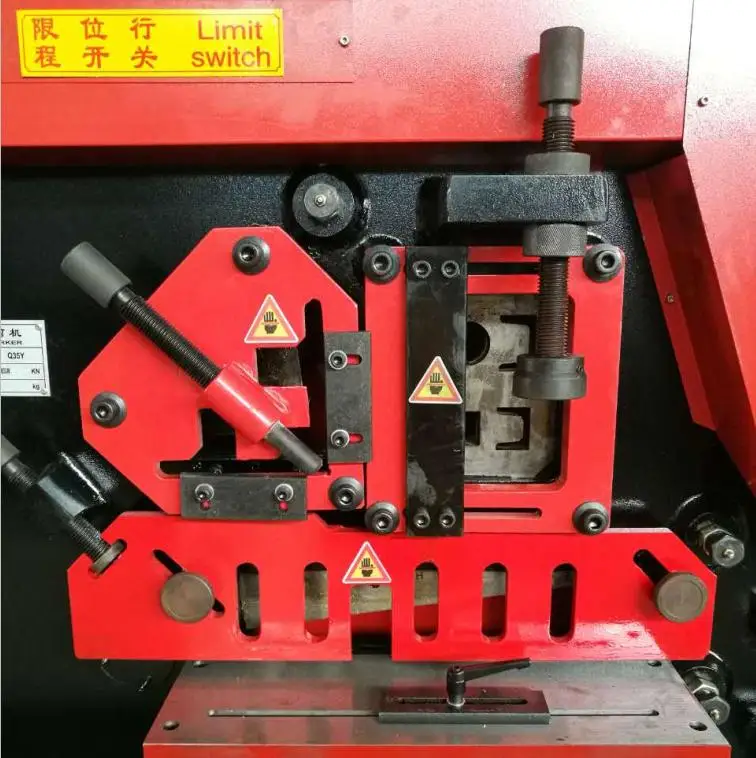

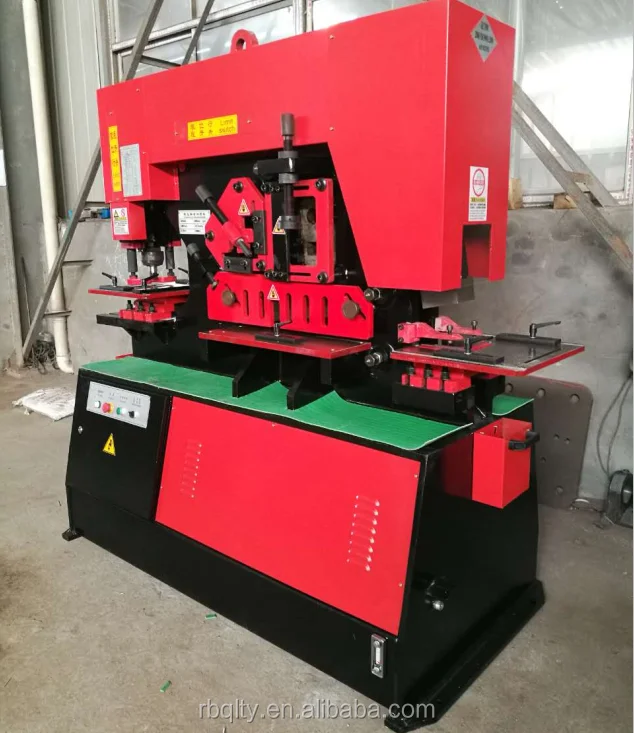

Machine details
Application
