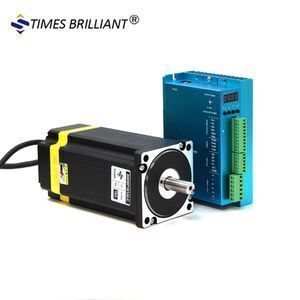

step motor Nema 34 12Nm motor 86EBP181ALC ZDM-2HA865 closed loop stepper motor and driver cnc kit

Supplier: BEIJING TIMES-CHAOQUN ELECTRONIC APPLIANCE COMPANY
Region: Beijing, China
Contact: Ms Selina xiao
Price: $75.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	24V-110V;	Phase:	2;
Selling Units:	Single item;	Model Number:	86EBP181ALC+ZDM-2HA865;
Weight:	7KG;	Keywords:	colseloop motor kit;
Brand Name:	Times Brilliant;	Certification:	CE,ISO;
Type:	Hybrid;	Frame size:	86MM;
Single gross weight:	7 KG;	Current / Phase:	6A;
Place of Origin:	Beijing China;	Motor type:	closedloop with encoder;
Package Type:	standard export package;	motor length:	176MM;
Single package size:	39X26X26 cm;	Application:	Industrial cnc;

Details:

Model	Step Angle °	Torque NM	Current A	Voltage V	Resistance Ω	Inductance mH	Motor Length mm	Increment Encoder	Shaft length mm	Shaft DIA mm	Weight kg
86EBP111ALC	1.8	5	6	24-110	0.42	2.4	105	1000PPR	34	14	2.6
86EBP147ALC	1.8	8.5	6	24-110	0.52	4.16	143	1000PPR	34	14	4.2
86EBP159ALC	1.8	10	6	24-110	0.7	7.3	154	1000PPR	34	14	4.7
86EBP181ALC	1.8	12	6	24-110	0.69	7.2	176	1000PPR	34	14	5.5

Size

Wiring:

Driver Manual:

Technical characteristics

· New DSP chip for 32-bit motor control;
· Advanced vector closed loop control technology;
·LED digital tube display button operation is intuitive and easy to operate;
· Static current and dynamic current can be set arbitrarily (0--7.2A range);
· Adaptive drive (57/60) and 86 series hybrid closed loop stepper motors;
· Input/output of photoelectric isolation signal;

. Pulse response frequency up to 200KHz;
·16 general subdivision options with a maximum of 256 subdivisions(51200 pulses/rotations);
· provide electronic gear matching to various pulse sources (any subdivided value);
· protection of over-current, over-heat, over-voltage and tracking error;

Mechanical installation dimension drawing
