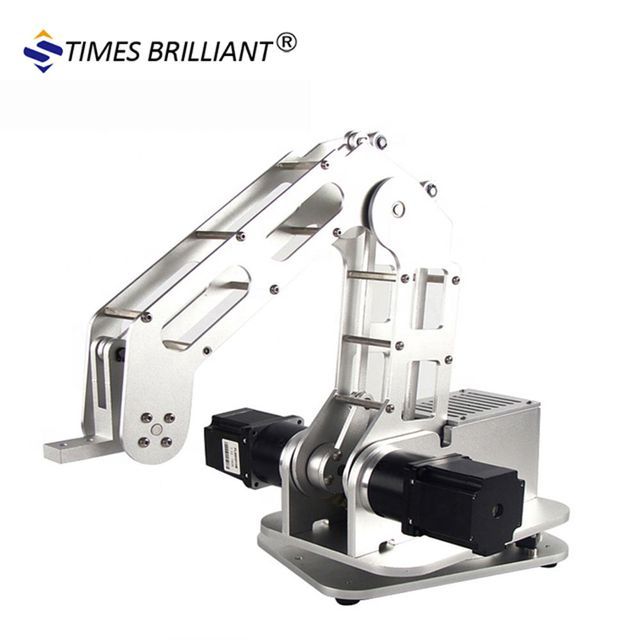

Industrial 4-axis robot arm 2.5kg load lifting Android APP control desktop DIY robotic arm
- 55.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

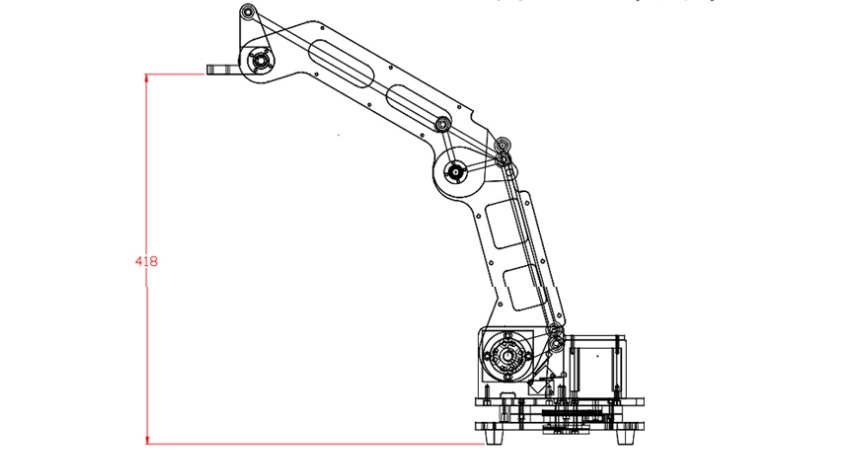

| feature: | Android APP control | Vertical travel: | 418mm |
| Gross weight per piece: | 21.000 kg | Health status: | new |
| Local service locations: | not any | Single pack size: | 50X50X50 cm |
| After Warranty Service: | Video technical support, online support | Core component warranty: | 3 years |
| Video outbound inspection: | if | Horizontal travel: | 580 mm |
| Commutation: | Wifi | strength: | 60 watts |
| Core components: | PLC, engine, gearbox, motor | Voltage: | 110V-240V |
| Sales unit: | single product | load: | 2.5 kg |
| Marketing Type: | normal product | Showroom location: | not any |
| After-sales service provided: | Video service, no overseas service | Dimensions (L*W*H): | 50*52*39cm |
| working environment: | -10℃--60℃ | Warranty: | 1 year |
| Certification: | ISO2009 | Mechanical test report: | if |
| Origin: | Beijing China | brand: | Brilliant times |
| application: | production line | Key words: | Industrial robotic arm |
| Packaging Details: | Styrofoam, cardboard box | weight: | 18 kg |
| Applicable industries: | Food Store, Printing Store, Food & Beverage Store | Control axis: | 4 axis |
Desktop four-axis robotic arm palletizing robot workshop assembly line replaces manual mechanized work load 2.5kg
| Specification | ||
| Number of axes | 4 | |
| load | 2.5 kg | |

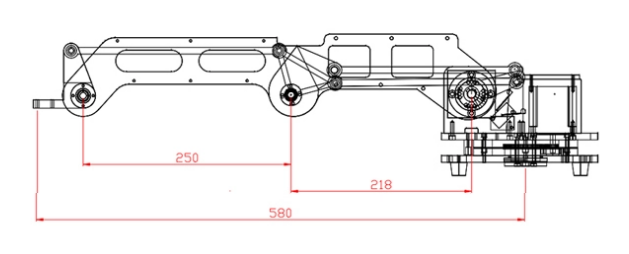

| Maximum extension distance | 580MM | |
| Repeatability | 0.3 mm | |
| Communication Interface | Wifi | |
| voltage | 100-240 V 50/60 Hz | |
| power input | 12V/5ADC | |
| strength | Maximum 60W | |
| Operating temperature | -10°C——60°C | |
| Axial motion parameters | ||
| axis | The scope of work | Maximum speed |

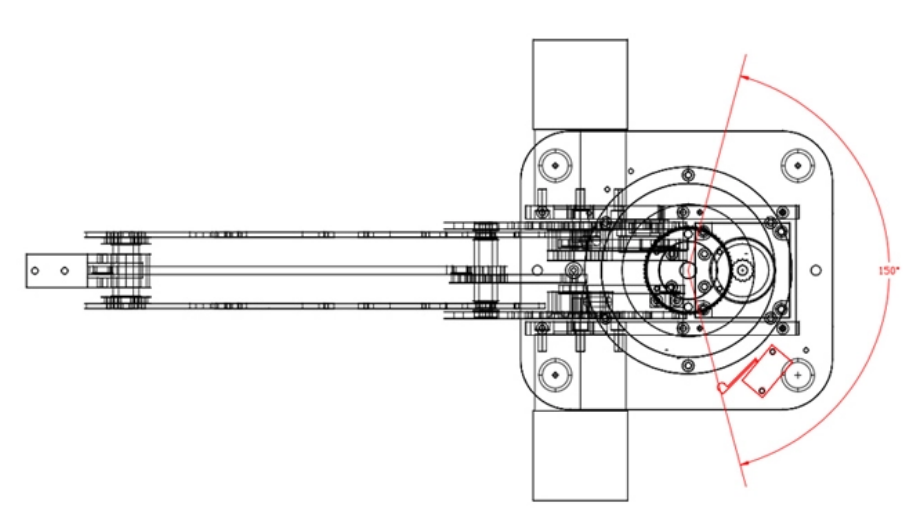

| Axial motion parameters | 0° to +85° | 320°/sec |
| Axis 1 Base | --10° to +95° | 320°/sec |
| Axis 2 Boom | +90° to -90° | 480°/sec |
| Axis 4 rotation | +90° to -90° | 480°/sec |
| end effector | ||

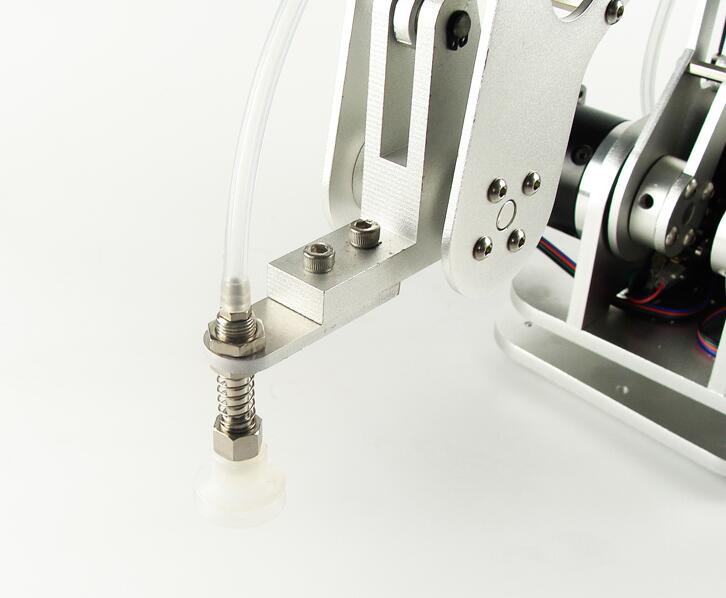

| paw | Suction cup diameter | 20mm |
| pressure | -35kpa | |
| Chuck | open size | 27.5 mm |
| driving style | pneumatic | |
| effort | 8n | |

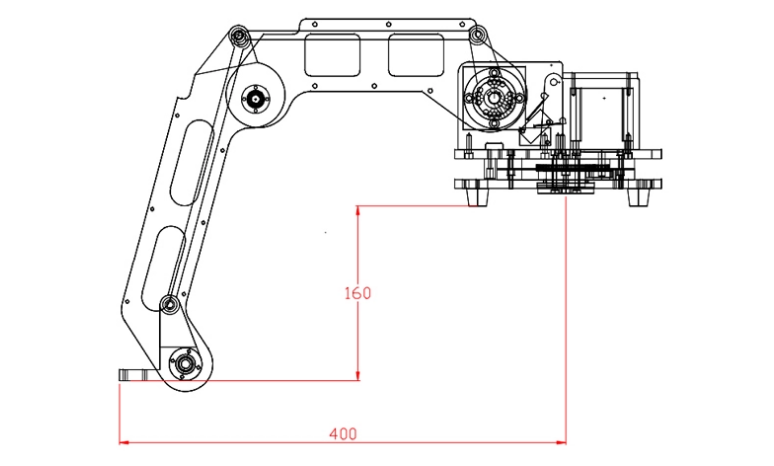

size
