Runma three-axis large bull head robot cartesiano 15kg light-duty elevated industrial robot is suitable for 650-800T IMM RN1700WS

Click here to contact
Product details
Voltage:220VVertical travel:1700mm
Warranty:1 yearHealth status:new
Weight (kg):1000Maximum load:15 kg
payment terms:L/C, Western Union, T/Tstrength:AC220±10V 50/60HZ
Production capacity:100 sets/monthVideo shipment inspection:if
port:ShenzhenCore components:PLC, engine, bearing, gearbox, motor, gear
Package preview:application:injection molding machine
Origin:Guangdong, ChinaPackaging Details:1. Wooden pallet 2. Crate 3. Wooden box
Core component warranty:1 yearbrand:run horse
Dimensions (L*W*H):3800*2540*2245Supply capacity:100 sets per month
Mechanical test report:ifMarketing Type:New Products 2020
Drive type:X, Y, Z- AC servo motorfeature:Take out the product
Showroom location:Italy, Vietnam, Brazil, Saudi Arabia, Indonesia, Kenya, South Korea, UAE, Colombia, Sri Lanka, Ukraine, UzbekistanApplicable industries:Building materials store, manufacturing plant, machinery repair shop, food and beverage factory, home use, construction work, food and beverage store
color:white and red
Product overview

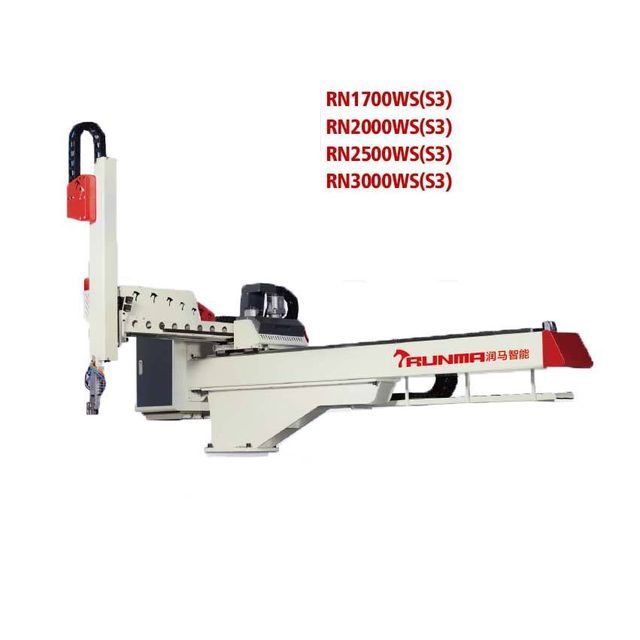

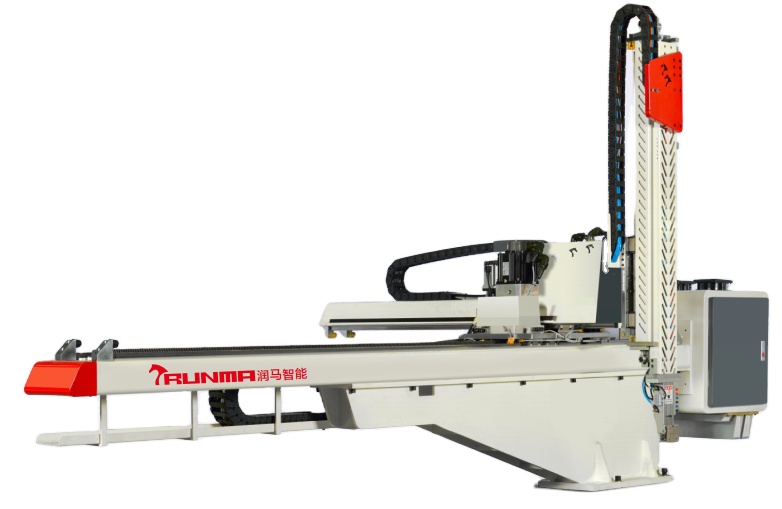

Large bull head traverse robot
Large-scale full-servo traverse manipulator, this series is mainly used in 650-3000T horizontal injection molding machines to take out finished products. With telescopic arm. The vertical, horizontal and horizontal strokes are all driven by AC servo motors. Low-noise THK (JP) or PMI (Taiwan) linear guide rails are used to ensure quiet and stable movement. Complete set includes standard accessories.
In addition, according to the actual use of the customer, the servo A-axis and B-axis or one of them can be added to the side posture group to move freely at multiple angles to achieve complex extraction methods and optimized extraction methods-exit paths.

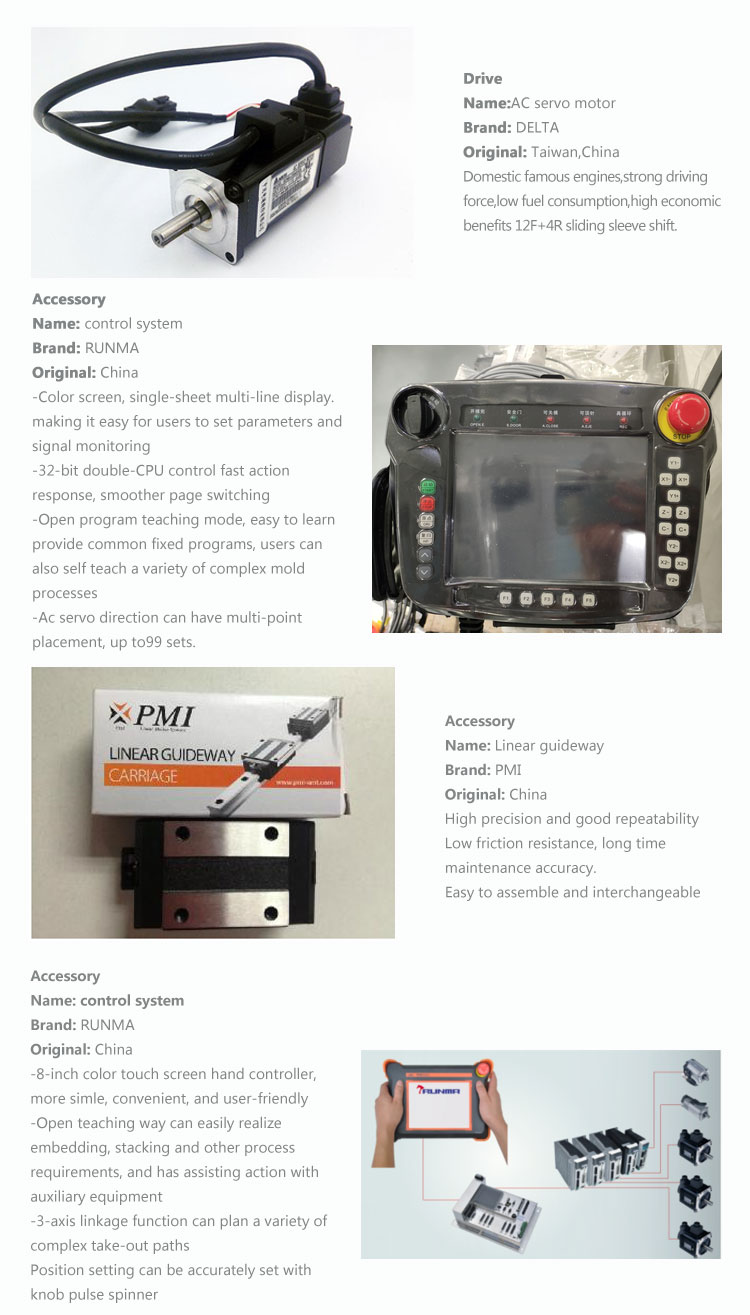

main part
product specification
No
thing
data
1
vertical travel
1700mm
2
side rotation angle
Post-90s.
3
maximum payload
15KG
4
take out
3.0 seconds
5
dry cycle time
16s
6
work pressure
5-7
7
northwest
1000KG
8
energy consumption
5.0Kva
Our advantage
