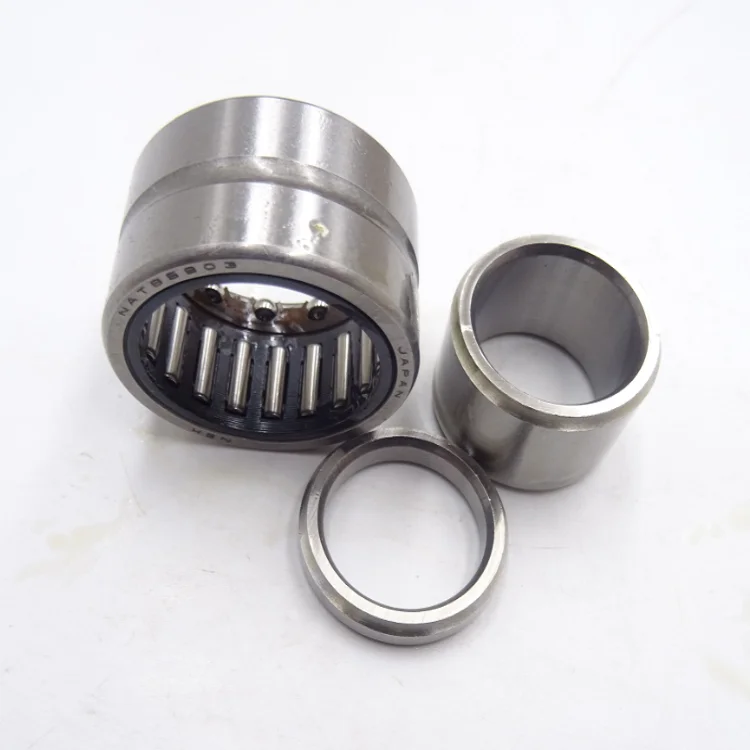

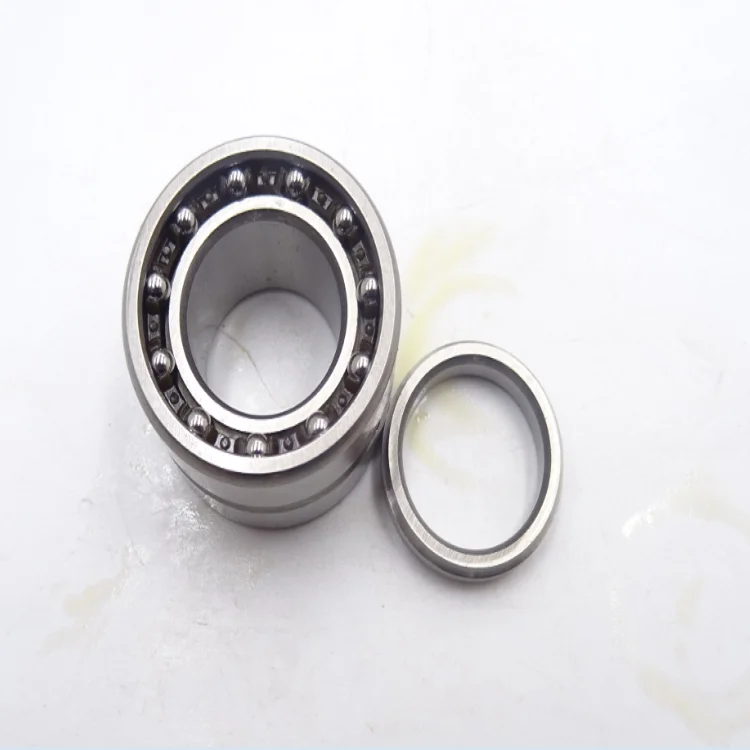

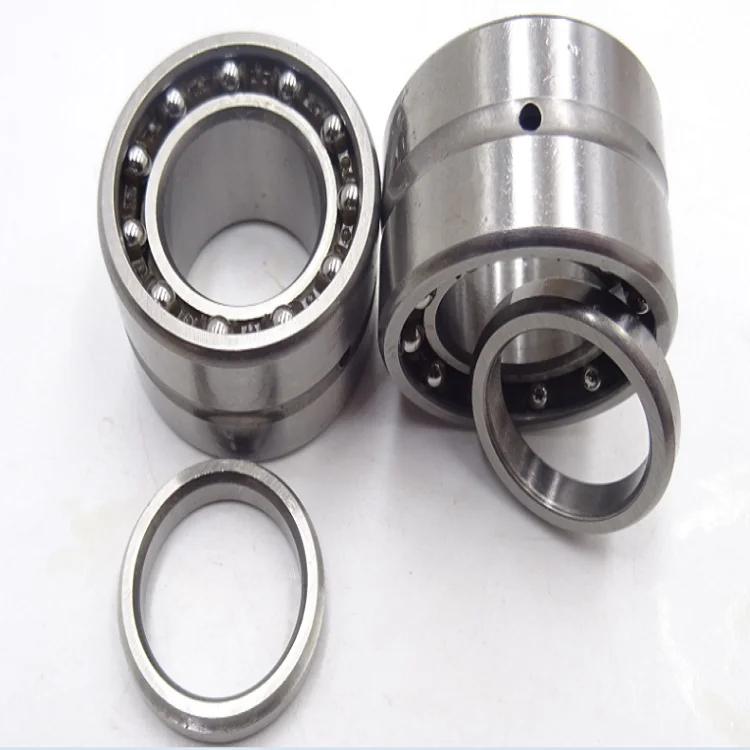

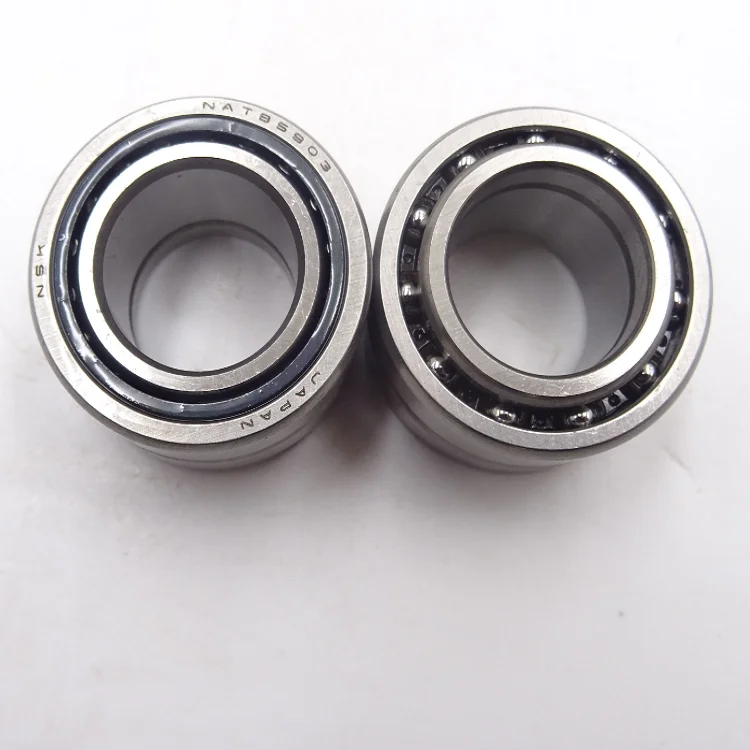

NSK High Quality Needle Roller Bearing NKIA5905

Supplier: Jinan Maolei Bearing Co., Ltd.
Region: Shandong, China
Contact: Ms jiessie zhang
Price: $0.20 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	A: barreled package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle;	Service:	OEM Customized Services;
Cage:	Steel Cage.Brass Cage.Nylon Cage;	Type:	Needle;
Package:	Original Package;	Product name:	Needle Roller Bearing NKIA5905;
Certification:	ISO9001:2008;	Port:	Guangzhou or your request;
Vibration:	Z1V1 Z2V2 Z3V3 Z4V4;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Lubrication:	Oil.grease;	Brand Name:	NSK LLH;
Number of Row:	Single Row;	Place of Origin:	Japan;
Precision Rating:	P0 P6 P5 P4 P2;	Feature:	High Speed Low Noise;
Material:	Chrome Steel;	Applicable Industries:	Energy & Mining;
Model Number:	NKIA5905;	Bore Size:	1 - 25 mm;
Seals Type:	Open;	Supply Ability:	1000000 Set/Sets per Month;

Packing & Delivery

Packaging Details A: barreled package+outer carton+pallets

B: single box+outer carton+pallets

C: tube package+middle

Delivery Time Shipped in 2 days after payment

Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and needle roller assembly featuring small section height,big load capacity & rigidity,compact structure and small size,high rotating accuracy with the structure of disposed inner ring.

Needle roller bearing is characterized by multiple structures,broad adaptability and easy installation.It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry andetc. Various machinery equipment. With this kind of bearing,machine design can realize the goal of small-scale & light weight.

Types of Designs:

This kind of bearing has multiple structural styles for the choice of customers,such as narrow & broad series,with or without inner rings,cages,rib or sealings. It can be designed according to the special structural requirements of customers as well.

Product Precision Accuracy:

Dimensional tolerance and geometrical accuracy is based on GB/T5801. Mutual difference of needle roller diameter is 2 um,and the precision grade is class G2(ISO GB/T309) The diameter of inscribed circle conforms to tolerance grade F6 before the fitting of outer ring with cage and roller assembly. Bearing radial running clearance conforms to the value defined by class 0 group of GB/T4604 Special precision grade in based on GB/T307.1 For fuller information on the special requirement of bearing running clearance, inscribed circle and precision grade,please contact our company.

Material:

Material for needle roller is GCr15 bearing steel,quench-hardening HRC60-65

Material for inner and outer rings is GCr15 bearing steel,quench-hardening HRC60-65

Material for cages is quality low-carbon steel or reinforced nylon.

Special Directions:

Bearing running clearance and inner-cutting roundness should be regulated according to different

conditions.

Machine tolls should be used for press-in fitting or thermal fitting when install the bearing.

Limited by plastic cages(suffixed with TN) and sealing-element material ,operating temperature

is -30℃--+100℃

For general-disposition design of bearings,refer to the relevant recommendation in the applied

technology of roller bearings.

High Quality Needle Roller And Angular Contact Ball Iko Combined Bearing Nkia5905 - Buy Iko Combined Bearing,Nkia5905,Needle Roller And Angular Contact Ball Bearing Product on Alibaba.com

NKIA 0000 Series Combined Bearing

Shaft Dia	Bearing Des	Boundry Dim					Basic Load Rating
		d	F	D	B	rsmin.	radial		axial

mm							CN	C0N	CN	C0N
12	NKIA 5901	12	16	24	16	0.3	7600	8300	2160	1940
15	NKIA 5902	15	20	28	18	0.3	10600	13600	2340	2370
17	NKIA 5903	17	22	30	18	0.3	11000	14600	2500	2750
20	NKIA 5904	20	25	37	23	0.3	21000	25500	3950	4200
22	NKIA 59/22	22	28	39	23	0.3	22800	29500	4250	4850
25	NKIA 5905	25	30	42	23	0.3	23600	31500	4350	5200
30	NKIA 5906	30	35	47	23	0.3	25000	35500	4750	6300
35	NKIA 5907	35	42	55	27	0.6	31500	50000	6000	8400
40	NKIA 5908	40	48	62	30	0.6	43000	67000	7400	10900
45	NKIA 5909 x	45	52	68	30	0.6	45000	73000	7700	12000
50	NKIA 5910 x	50	58	72	30	0.6	47000	80000	8100	13700
55	NKIA 5911	55	63	80	34	1	58000	100000	9700	16600
60	NKIA 5912	60	68	85	34	1	60000	108000	10000	17900

Jinan Maolei Bearing Co., Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.

The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.

We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.

Package: A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.

Payment Term: A.100%T/T

B.30%T/T in advance,70% aganist copy of B/L(For large order)

C.Western Union

Our Services

1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

FAQ

Q: Are you trading company or manufacturer ?

A: We are the manufacture of bearings for more than 20 years, "Quality is our culture

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What causes bearing noise?

A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.

Q: What is your terms of payment ?

A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union

D.Paypal

Any questions, please don't hesitate to contact us!

Welcome your inquiry!
