PXJ PCL VSI sand making plant sand making machine price for sale

Supplier: Henan Chunyue Import & Export Trading Co., Ltd.
Region: Henan, China
Contact: Ms ChunYue CY
Price: $23880.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	Stone VSI sand making machine price;	Weight:	7.8-25.6 T;
Dimension(LWH):	as model;	Single package size:	370X112.5X105 cm;
Selling Units:	Single item;	Type:	Main Shaft Impact Machine;
drawing:	supply;	Voltage:	220V;
Processed Materials:	Calcite;	Max feeding size:	45mm;
Warranty:	1 Year;	Spare Parts Supply:	Life Long Provide;
Power(W):	110-400kw;	Place of Origin:	Henan China;
Install:	Engineer Guide;	Key Selling Points:	Energy saving;
Brand Name:	CHUNYUE;	Application:	limestone,CACO3,talc,barite,silicon,glass material building material;
Color:	Request;	After-sales Service Provided:	Engineers available to service machinery overseas;

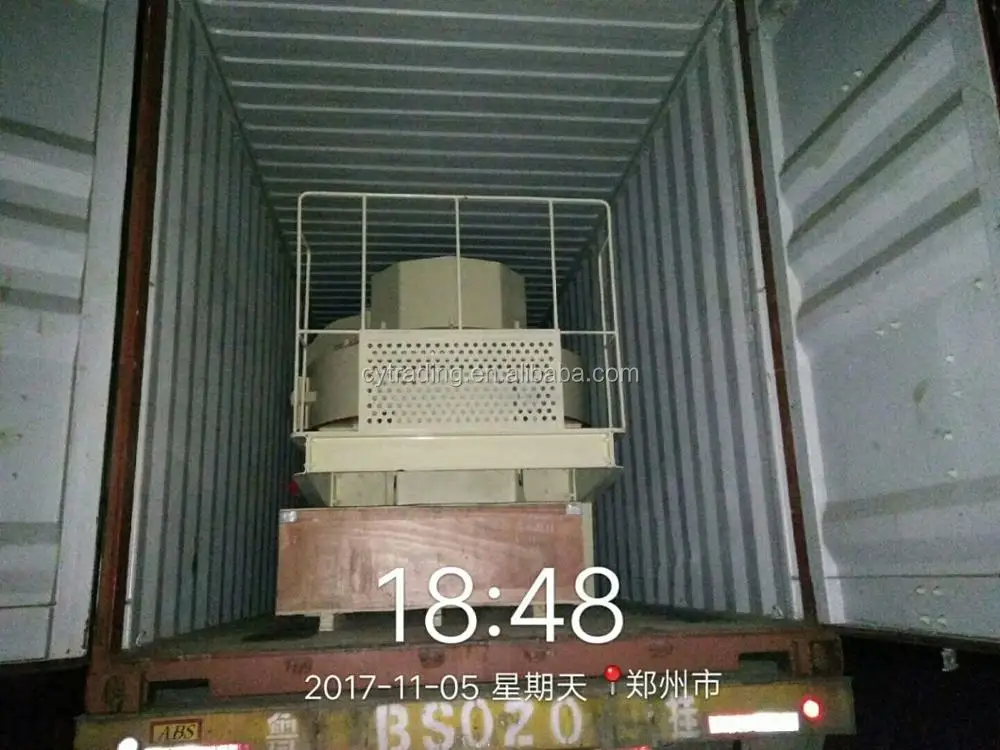

Applicable Industries:	Energy & Mining;	Package Type:	sandstone sand making machine,VSI Sand Making Machine,sand making machine price packaging: Standard containers or in bulk, bare main machine, motors and spare parts are packed in wooden cases.;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Single gross weight:	7,500 KG;
Certification:	ISO CE;	Condition:	New;

sandstone sand making machine,VSI Sand Making Machine,sand making machine price

Product Description

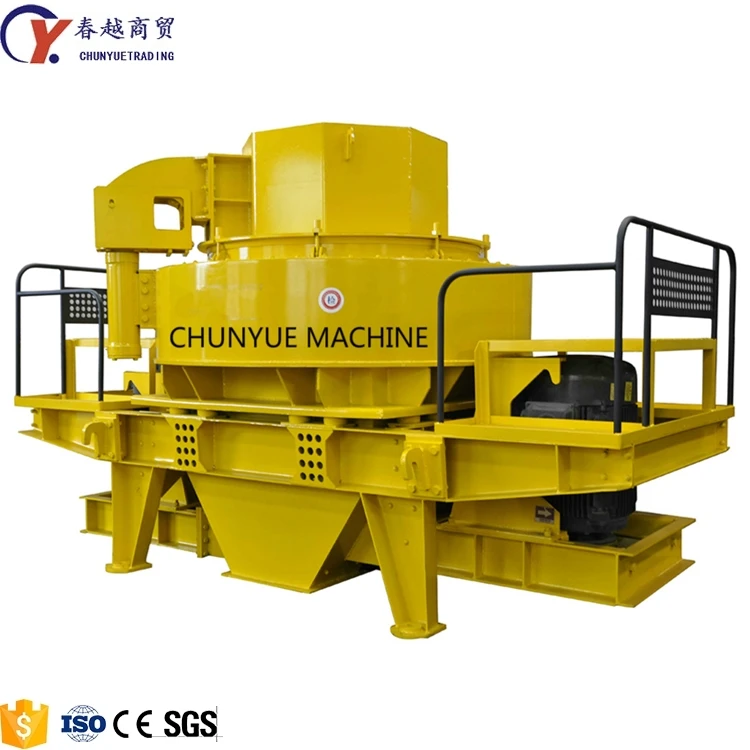

Vertical impact crusher is also known as sand making machine and shaping machine. It is the internationally advanced low energy crushing equipment which manages the fine crushing equipments for ore, river pebbles and Iron ore. It is the effective, practical and reliable sand shaping machine at this moment.

Application of the VSI sand making machine

This series of sand making machines are suitable for kinds of hardness material, widely used in metal ore or

non_metallic minerals, building sand, stones, metallurgical slag, and quartz. It is especially suitable for super hardness material and wear resistant material such as corundum, sintered bauxite, etc.

Technical data

Model			VSI-7611	VSI-8518	VSI-9526	VSI-1140
Capacity (t/h)		Center and Sides Feeding	120-180	200-260	300-380	450-520
Capacity (t/h)		Center Feeding	60-90	100-130	150-190	225-260
Max. Feeding Size (mm)		Soft Material	35	40	45	50
Max. Feeding Size (mm)		Hard Material	30	35	40	45
Rotation Speed(rpm)			1700-1890	1520-1690	1360-1510	1180-1310
Double Motor Power (kw)			110	180	264	400
Overall Dimension L×W×H (mm)			3700×2150×2100	4140×2280×2425	4560×2447×2778	5000×2700×3300
Weight (t)			7.8	10.3	16	25.6
Vibration Sensor			Inspection scope: 0.1-20mm/s continual adjustment
Hydraulic oil pump	Motor Power of Double Oil Pump(Kw)		2×0.31kw
	Overall Dimension L×W×H (mm)		820×520×1270
	Power of Oil Tank Heater		2KW

Application of the PCL Series Sand Making Machine

PCL Vertical shaft impact crusher is widely used in all kinds of mineral, cement, corhart, bauxite chmotte, carborundum grain, glass raw material, machine made construction sand,

stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnesite, and so on material with features of very hard and anticorrosion.

Application of the PXJ Series Sand Making Plant

PXJ Sand Making Machine The features of rational combination design of three crushing chambers, novel adjusting mechanism,effective control of uniformity of the product fineness

easy access fir maintenance have made the hammar and screen plates replaced more easily.

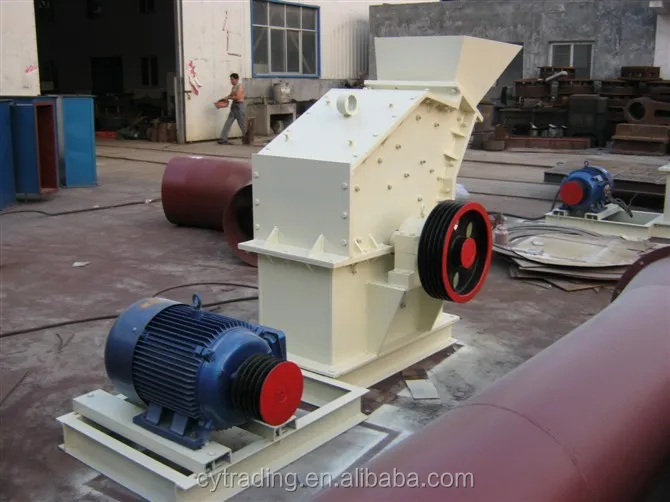

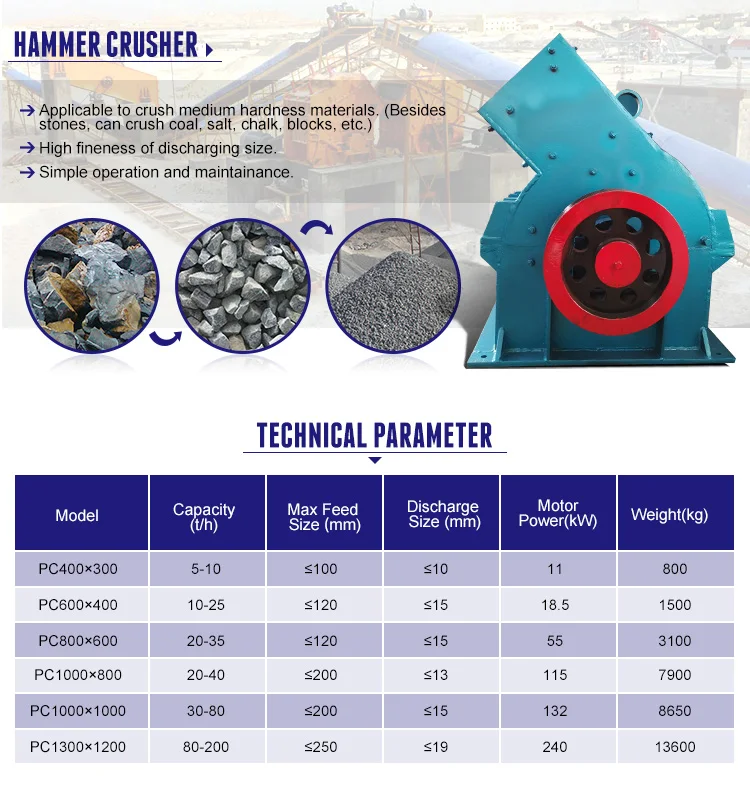

Application of the PC Hammer Sand making machine price

This series of sand making machine (hammer crushers) also called hammer mill,is suitable for crushing various hard and brittle materials such as coal, salt, chalk, plaster stone,gypsum, alumstone,

brick, tile, limestone etc. Whose compressive resistance does not exceed 150Mpa and the moisture content should not be greater than15%.
