Hypertherm BEST Warranty Portable Powermax 30xp Plasma Power Source

  • Supplier: Welding Center LTD
  • Region: -, China
  • Contact: Mr. Alexey Sharygin
  • Price: $2062.03 /unit
  • Min. Order: 1 unit
Product details
Rated Duty Cycle @40°C:35 %, 240v , 20 %, 120v;Power source type:IGBT invertor;
Place of Origin:United States;Open Circuit Voltage (OCV):256;
Condition:New;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Cutting speed:500mm/min;Warranty:More than 5 Years;
Payment Terms:T/T;Rated Power:5.5 kW for full 30 A output;
Additional information:Without AIR pump;Name:Plasma cutting system;
Brand Name:Hypertherm;Product name:Powermax 30xp;
Weight:14,96 KG;Rated Input Voltage:120-240 V, 1-PH, 50/60 Hz;
Cutting thickness:10 mm;Voltage:120-240 V, 1-PH, 50/60 Hz;
Supply Ability:Unit/Units per Week Plasma Cutting Machine;Color:Grey;
Max piercing (mm):16;Dimension(L*W*H):45*55*21 cm;
Certification:Certificate of Compliance;Application:Metal Cutting;
Packaging Detail:Supply Ability: Not limited 45*55*21 cm, 20 kg Configuration of the system Supply source, manual torch Duramax LT 4,5m with standard consumables, clamp 4,5m Operator's manual and safety manual A set of standard consumables with 1 standard nozzle, 1 electrode, 1 FineCut nozzle and 1 FineCut deflector Plastic carry case Carrying strap;
Product Description
Professional-grade plasma system

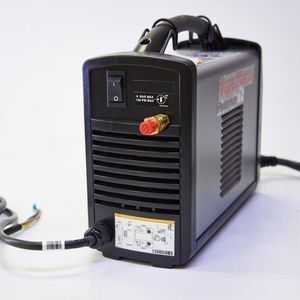

Powermax30 XP is a very compact portable plasma cutting system that is suitable for a wide range of applications. The unique two-in-one design allows you to cut high thickness materials at high power and perform precise cutting of thin metal sheets using FineCut® consumables. This universal system, designed for 30 A, uses air or nitrogen to cut electrically conductive metals (for example, low-carbon and stainless steel and aluminum).

Features

Plasma Cutting Machine Powermax 30 XP


High-power cutting on thick metal plus FineCut® consumables for detailed, thin metal cutting.
• Plug into any 120 or 240 V power with Auto-Voltage™ technology and included plug adapters.

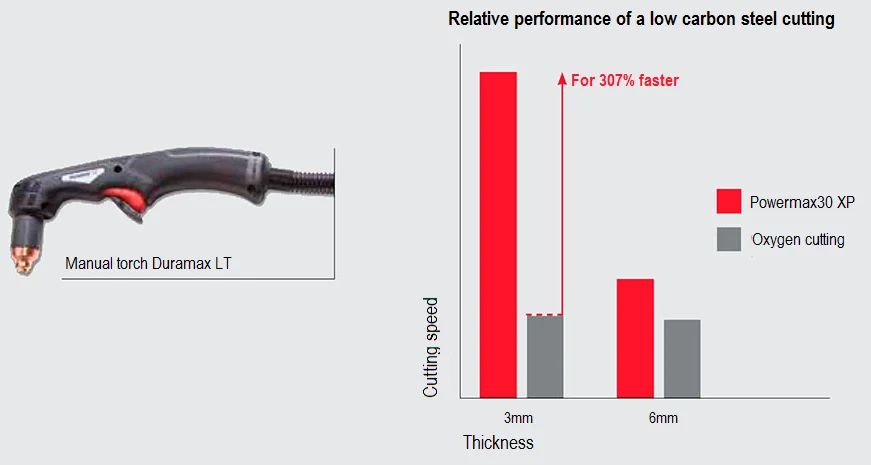

• 50% increase in cutting power* for fast cut speeds.
• Less edge preparation – patented consumables designs provide superior cut quality.
• Twice the consumable life* and 70% more efficient on average for lower cost of cutting.
• New Duramax™ LT torch designed to withstand impact and heat.
• Hypertherm Certified™ reliability ensures performance in the most demanding environments.
• Durable carrying case protects the system and gear.

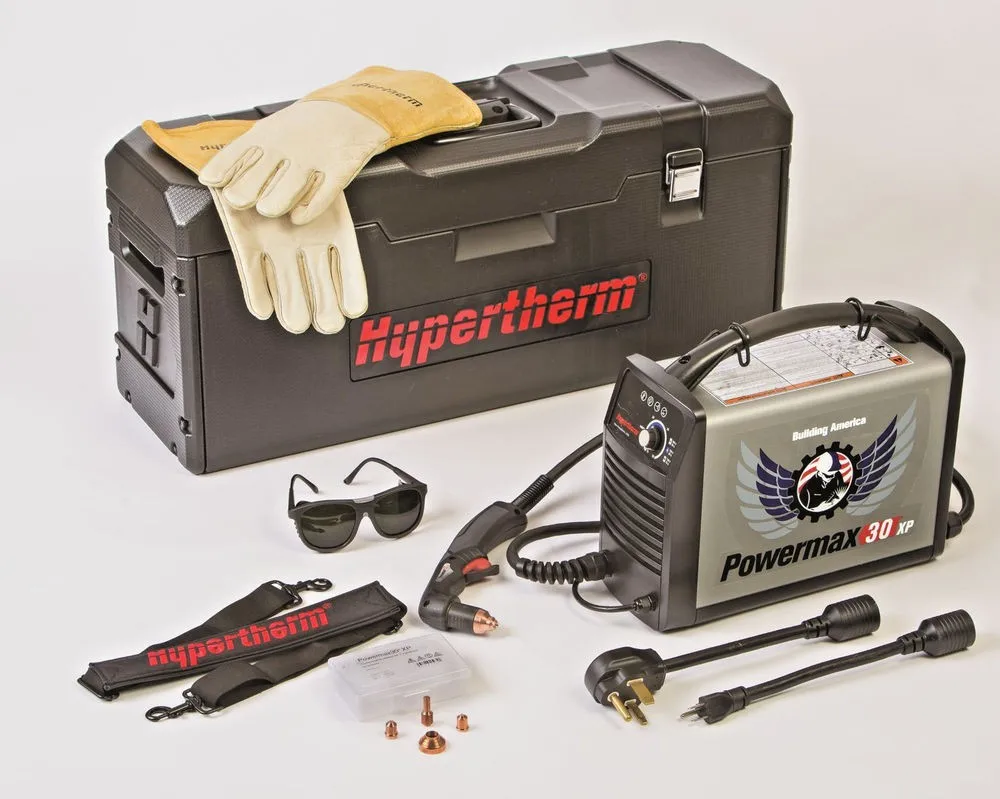

System includes

-Power supply, 15' Duramax™ LT hand torch with standard consumables, 15' work clamp
 - 240 V/20 A plug with adapters for 120 V/15 A and 240 V/20 A circuits
- Operator and safety manuals
- Consumable kit with 1 standard nozzle, 1 electrode,
- 1 FineCut® nozzle and 1 FineCut deflector
- Plastic carry case
- Carrying strap

-Leather gloves
- Shade 5 glasses


Type of consumable
Type of torch
Amperage
Shield/Deflector
Retaining cap
Nozzle
Electrode
Swirl ring
Contact cutting
Manual
30
420116

420114
420118

420120

420211
FineCut
Manual
30
420115
420117
HyAccess
Manual
15-45
420148
420144
420147
420137
220670
Specifications
Consumable type
Torch type
Amperage
Shield/ Deflector
Retaining cap
Nozzle and electrode set
Swirl ring
Standard
Manual
30
420116
420114
4282431
420211
FineCut
Manual
30
420115

4282442

1 The set includes 2 standard nozzles (420118) and 2 electrodes (420120).
2 The set includes 2 FineCut nozzles (420117) and 2 electrodes (420120).
