PV Solar Cell Scriber, Silicon Chip Wafer Slicing Dicing machine details
Software:5.0;Place of Origin:Hubei China;
Laser Type:Diode;Model Number:GSC-50;
Working Power:380(220/110V)50Hz/60Hz/3kva;Control Software:Laserscriber;
Scribing width:50μm;Graphic Format Supported:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT;
Working table:Negative pressure adsorbing and dust elimination;Supply Ability:5000 Set/Sets per Year;
Application:Laser Scribing;Delivery Detail:Shipped in 8 days after payment;
Cooling Mode:Water Cooling;Scribing speed:120mm/s;
Port:Shanghai/Be appointed;Certification:CCC,CE,GS,ISO,SGS;
Applicable Material:Wafer/Solar cell/PV cell;Brand Name:Keyland Laser /OEM;
CNC or Not:Yes;Payment Terms:L/C,D/A,D/P,T/T;
Laser power:50W;After-sales Service Provided:Engineers available to service machinery overseas;
Temperature control precision:0.5°C;Laser wavelength:1064nm;
Packaging Detail:International transport plywood package;Scribing accuracy:±10μm;
Working area:350mm*350mm;

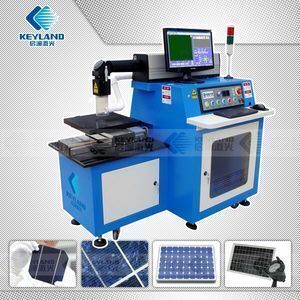

PV Solar Cell Scriber

Silicon Chip Wafer Slicing Dicing machine

Laser Power:50W

Laser modulation: Acousto-optic

Laser scribing/solar cell scriber  for  solar  mono crystalline silicon,poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers and etc.



Solar Cells Laser scribing Machine /solar cell scriber  's Working Principle :

Diode laser,Cooling by unified rotative homothermal water cooling system, Pulse Output of Continuous laser  in Q-state ;  Laser incidents from cell back , the whole piece or incomplete cell sorting divided into the size of need  in special software control.



Some Spec. of Solar Cells scriber /Laser scribing Machine :

+

Type specification

  Solar Cells scriber /Laser scribing  Machine

GSC-50S/ GSC-10E

Laser Power

50W/10W

Laser wavelength

1064nm

Scribing /cutting precision

±10μm

Scribing /cutting  line width

50μm

Max scribing/cutting speed

120mm/s

Worktable size

350×350mm

Powe supply

380V(110-220V)/ 50-60Hz/3kVA

Analog Type

Analog Type

Pulse rate

200H-50kH

Pulse Width

3-5um

Cooling way

Integration constant temperature circulation water  cooling

Worktable

Adsorption of double gas warehouse vacuum,

the T model platform is double position works

in turn

Floor size

2m*4m

Power consumption

5KW

Pump life

1500hours



Equipment components of  Solar Cells  scriber /Laser scribing  Machine :

1, Laser system


2, Power and electrical control system


3, Motion control systems



4, Thermostatic cooling system

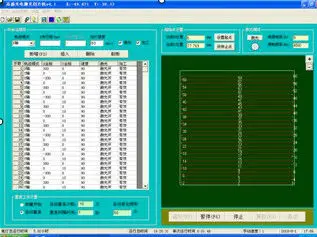

5, Software control system




6, Adsorption dust removal system



Solar Cells Laser scribing Machine  's Characters:



Imported Key parts

♥Automatic vacuum

1.Improved & new generation machine



2.Integration design,no exterior connect



3.Easy to install and move the machine



4.High precision and unified rotative homothermal water cooling system



5.Stable and continuous processing



6.Easy and convenient operation ,No to replace the Krypton lamp,maintenance-free.



7.Diode side-pump laser and high integration,better quality beam & high speed



8.Acousto-optic modulation



9.X-Y movable working table



10.Updated Software





Solar Cells scriber /Laser scribing  Machine 's Application:





We have three types of  Solar Cells Laser scribing  Machine  for option.

There is always a right for your needs



+

YAG   Solar Cells scriber Laser scribing Machine

Diode  Solar Cells scriber Laser scribing  Machine

Fiber  Solar Cells scriber Laser scribing Machine



 We Manufacture











Software:5.0;Place of Origin:Hubei China;Laser Type:Diode;Model Number:GSC-50;Working Power:380(220/110V)50Hz/60Hz/3kva;Control Software:Laserscriber;
