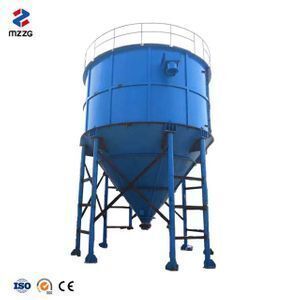

Application

Slurry water thickener mainly used for slurry water during sand or tailings washing process, changed slurry water into clean water flowing out and supplementary sand washing water.The process capacity is about 30-200m³/h, we often use chamber of belt filter press after this thickener, to turn slurry into mud cake discharge directly, within 25%-35% water content, to reduce the pollution for environment. In essence, the thickener belongs to a new type of mud-water separation sedimentation tank, special internal structure together with different kinds of flocculant for sediment makes it widely used.

What is the function of this thickener?

We often need to add a large amount of clean water to ensure the cleanliness of the finished washed sand materials, but the sewage water requires a large area of sedimentation tank for storage after sand washing process. In the long-term production, the sedimentation tank Dredging is very painful for the user. The sedimentation tank completely replaces the sedimentation tank through the interaction of the internal mechanism of the tank and the flocculant. The sewage washed into sand is clean and can be recycled for sand washing and water reduction. The occupation of resources and land meets the requirements of environmental protection and sustainable development.

Used for

The newly developed thickener has such remarkable features as speedy thickening efficiency, high treatment capacity and high underflow density, and is now widely applied to dewatering to various metal and non-metal ores and the slurry solid-liquid separation in sectors like metallurgy, coals, chemicals, mine tailings and environment protection.

Tech specification

Model	Feed concentration (%)	Process capacity(m³/h)	Sink volume≈m³	Tank diameter (mm)	Power(Kw)	Weight (kg)	Dimension L*W*H (mm)
WS-3000	≤10	100-150	1.9	Φ3000	20	5194	3000*3000*6578
WS-6000	≤10	160-250	18	Φ6000	34.4	12680	6000*6000*7530

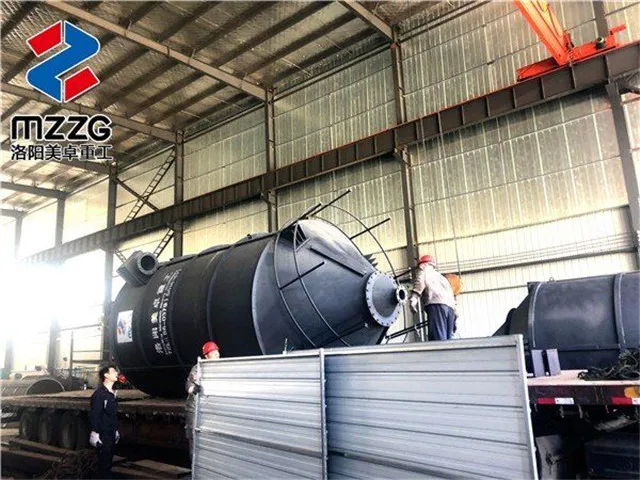

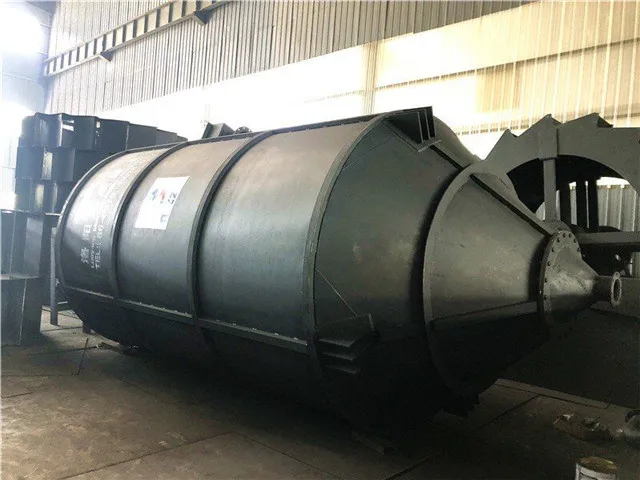

Pictures



Product details

Name	Slurry water thickener
Function	Solid-liquid Separation
Advantages	Change slurry water into clean
Installation	Technical Guidance
Keyword	Slurry Thickener Machine
Manufacture standard	Industrial Standard
Capacity	20-200M3/h
After Sales Service	Long Time Service
Keyword	Hot new products ore thickener machine with factory price
Sediment Area (m2)	2.55

CUITURE

Luoyang Meizhuo Heavy Machinery Co., Ltd. takes the new, green and sustainable development as our service concept, focuses on the manufacture of environmentally, friendly mining machinery and equipment, formed a series of products including fine sand recycling machine, linear dewatering screen, dehydrated screen, sand washing and recycling machine, slurry water thickener, chamber filter press, desander and muddy water zero discharges system etc. In a variety of large metals, non-metallic mines, aggregate sand and gravel production, metallurgy, electricity, chemicals, ceramics, glass, steel and other industries.
