Automatic Multi-cutters Manufacturing Straw Making Machine Paper

Supplier: Zhejiang Libangwei Automation Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Amy Zhang
Price: $14000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	1300KGS;	Single gross weight:	1,300 KG;
Brand Name:	LIWEI;	Condition:	New;
Cutting system:	Servo motor synchronism tracking cut;	Speed:	1-50m/min;
Selling Units:	Single item;	Straw inner size:	4.5-12mm;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Gluing way:	Single and double side;
Certification:	ISO;	Description:	Multi-cutters manufacturing straw making machine paper;
Straw wall thickness:	0.3-1mm;	Gluing unit:	3 layers;
Voltage:	380V 50HZ;	Working air pressure:	0.6Mpa;
Raw material:	Pure wood pulp paper;	Place of Origin:	Zhejiang China;
Dimension(LWH):	400015001250MM;	After-sales Service Provided:	Engineers available to service machinery overseas;
Single package size:	400X150X125 cm;	Warranty:	1YEAR;
Package Type:	PACKED IN SEAWORTHY PACKAGING AUTOMATIC MULTI-CUTTERS MANUFACTURING STRAW MAKING MACHINE PAPER;	Paper layer:	3 layers;
Power(W):	3.2KW;

MASS_APP4_1677_BEGIN

MASS_APP4_1677_END

Product Description

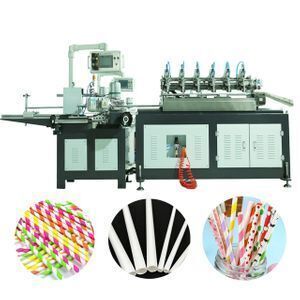

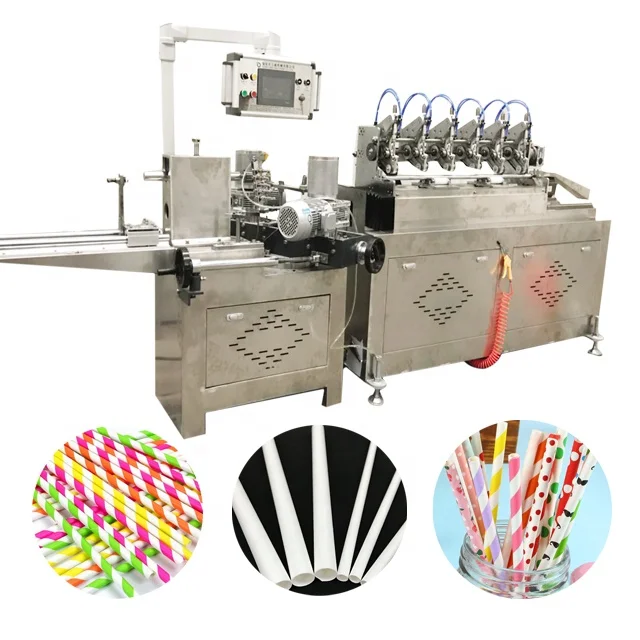

Product Description of Automatic Multi-cutters Manufacturing Straw Making Machine Paper

The high speed paper straw machine integrates raw material feeding, gluing, winding and cutting on one time.
The machine with multi-blades cutting system, can make different sizes paper straw, like the size 5.3mm, 6.3mm, 8.3mm, 10.3mm, etc.

SPECIFICATIONS OF AUTOMATIC MULTI-CUTTERS MANUFACTURING STRAW MAKING MACHINE PAPER
Model	LWXG-200	Gluing way	Single and double side
Paper layer	3layers	Power	380V/ 3phase /50HZ
Gluing unit	3layers	Operation person	1-2person
Straw inner size	4.5-12mm	Working air pressure	0.6Mpa
Raw material	Pure wood pulp paper	Machine size	400015001250mm
Straw wall thickness	0.3-1mm	Machine weight	1300kgs
Speed	1-50m/min	Operation space	About 8300*4150mm
Cutting system	Servo motor synchronism tracking cut

Main Features of Automatic Multi-cutters Manufacturing Straw Making Machine Paper

1.Automatic Multi-cutters Manufacturing Straw Making Machine Paper.
2.The machine is used for making paper straws.
3.Numerical control servo cutter device, high precision cutting.
4.Automatic cutting, automatic falling tube, automatic speed changing and reverting.
5.Computerized PLC control, touch screen man-machine interface operation.
6.Choose Single or double glue coating unit.
7.Spiral winding part , Hanging-type operation panel, specialized operation system, Belt tension device (hand-wheel driven).
8.Multi-blades System in-line cutting unit controlled by encoder, driven by servomotor,cutting final paper tube automatic and high efficiency.

Detailed Images

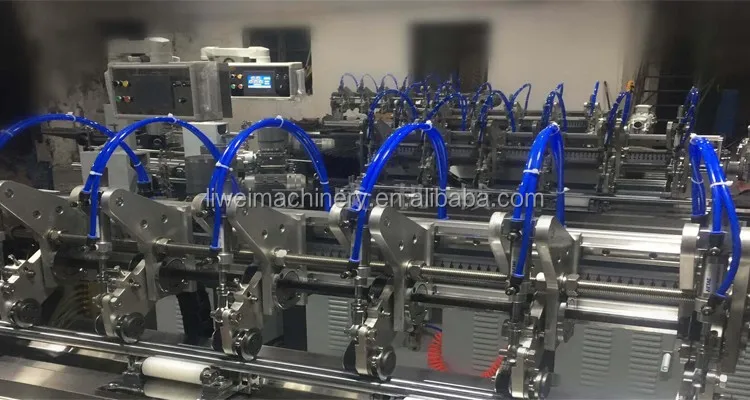

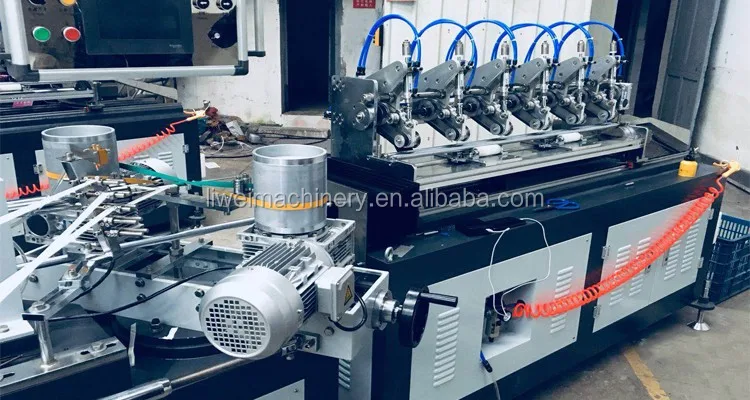

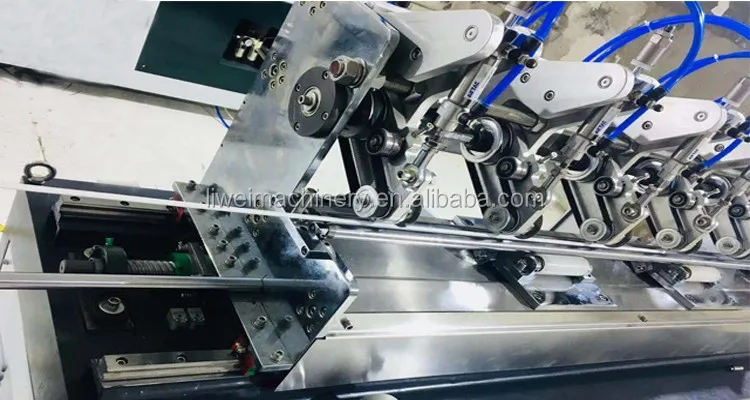

1.Multi-blades cutting system & spiral rolling mechanism of Automatic Multi-cutters Manufacturing Straw Making Machine Paper

Multi-blades cutting system and spiral rolling mechanism: Adopted man-machine control interface, touch screen parameters setting, easy for operating. Controlled by encoder, driven by servomotor, automatic and high efficiency. Rolling by belt and tension device adjusted by handle wheel. 3 options for machine body: Blue painting, white painting and stainless steel. Select and use famous brand suppliers for motor and electrical equipment.

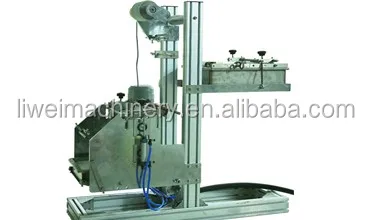

2.Stainless Steel Glue Unit of Automatic Multi-cutters Manufacturing Straw Making Machine Paper

Choose gluing single side or double sides. The drinking straws are glued evenly and stuck firmly.

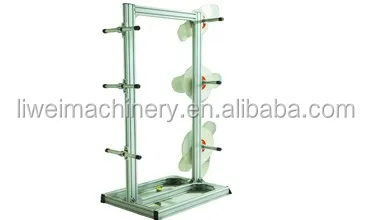

3.Paper Reel Stand of Automatic Multi-cutters Manufacturing Straw Making Machine Paper

Paper Roller Bracket: The paper roller can be easily installed on the T-bar and rotate flexibly. According to the requirement of paper layers, you can put 2~5 paper rollers.

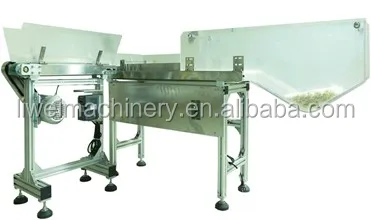

4.Straw Collector of Automatic Multi-cutters Manufacturing Straw Making Machine Paper

Pick the straws automatically and row them tidily at the container.

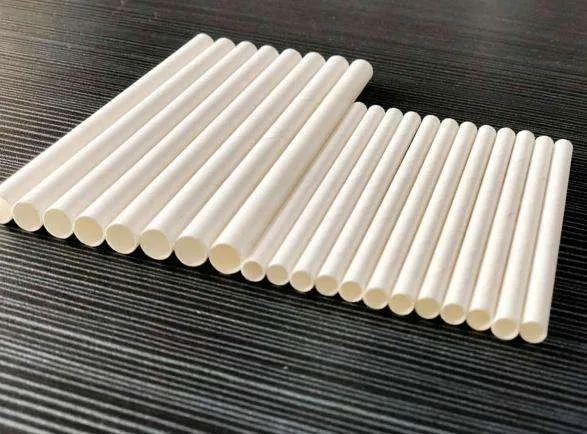

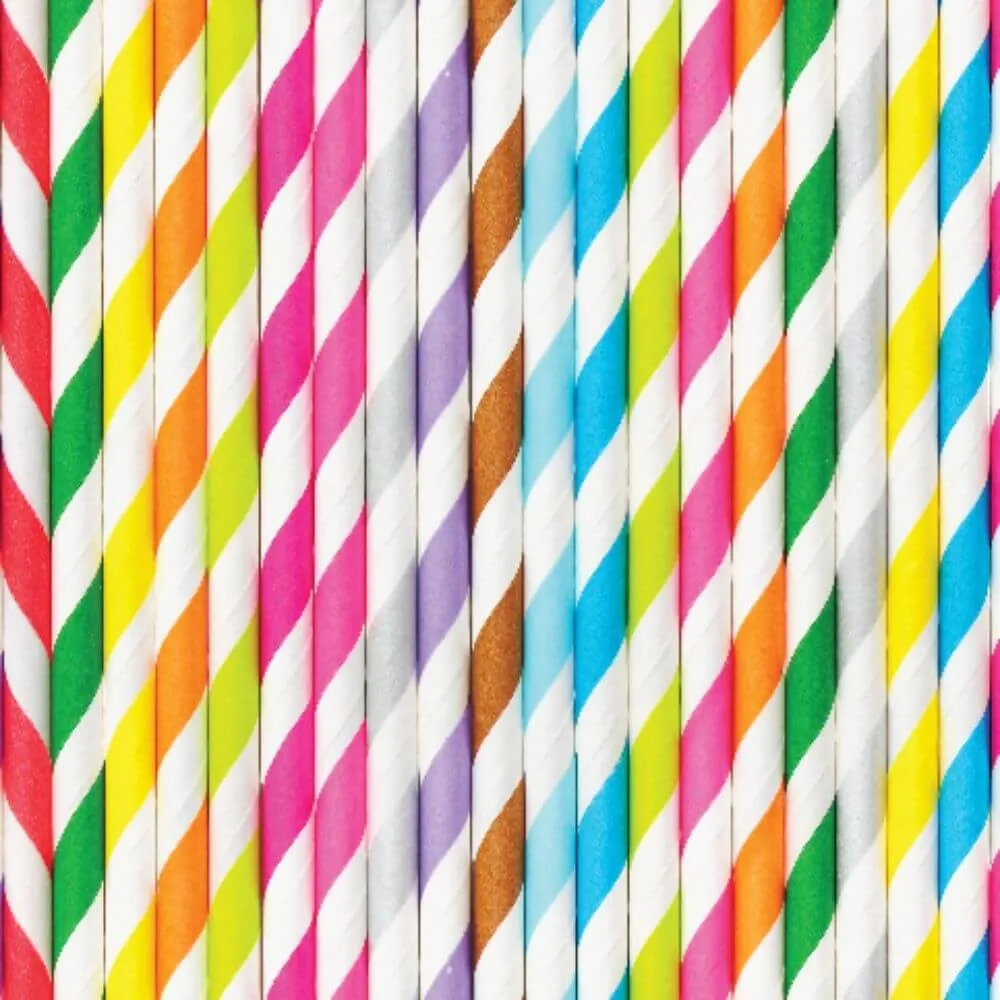

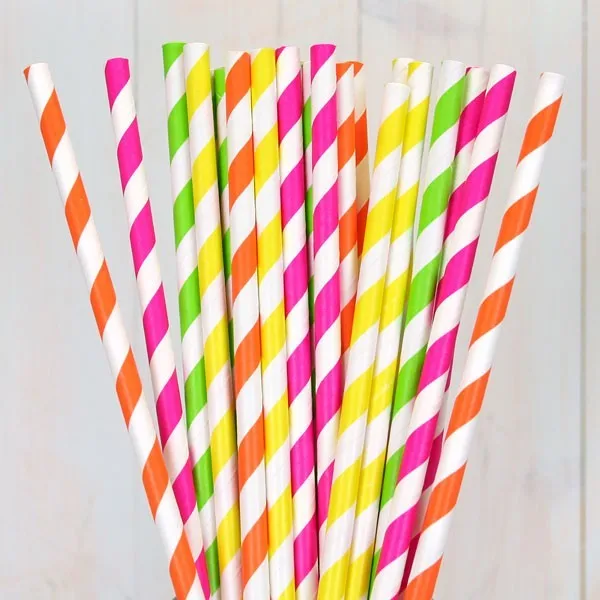

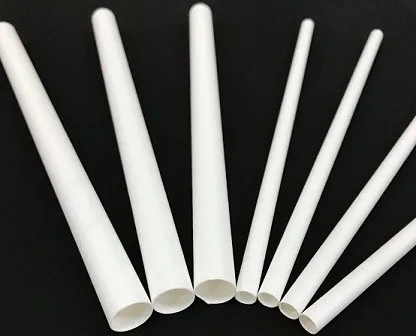

Final Products

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Wooden Case or Wooden Pallet
Description	We testing every machine before shipment
Weight	1300KGS/SET
Packaging Details	The machine will be packed and shipped by container The machine will be packed by film in standard Please noted that you can choose export standard wooden case packaging or export standard wooden pallet packaging if needed
