Slocable Customized 2.5mm2 4mm2 6mm2 10mm2 PV Cables with MC4 in Converter Lead Assembly
-
Supplier: Dongguan Slocable Photovoltaic Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Abby Peng -
Price: $0.50 / >=2 sets -
Min. Order: 2 sets
| Conductor of Cable: | Pure Copper, Tin Plated; | Length: | Customized; |
| Packaging Detail: | Standard carton:40*26*29cm; | Port: | shenzhen; |
| Insulation: | Double XLPE Insulaiton; | Number of Conductors: | Single; |
| Outer Diameter: | 6.9mm; | Model Number: | CA104B-CN40CM Cable Assembly; |
| Type of Connector: | 4mm2 MC4 Connector; | Application: | Solar and PV System; |
| Conductor Material: | Copper; | Jacket: | XLPE; |
| Brand Name: | Slocable; | Type of Cable: | PV Cable 1x4.0mm2; |
| Supply Ability: | 600000 Set/Sets per Month; | Conductor of Connector: | Pure Copper, Tin Plated; |
| Cross Section: | 4.0 square mm; | Insulation Material: | XLPE; |
| Rated Current: | 50 A; | Rated Voltage: | DC 1000V; |
| Place of Origin: | Guangdong China; | Payment Terms: | L/C,T/T,Western Union,Paypal; |
Slocable Customized 2.5mm2 4mm2 6mm2 10mm2 PV Cables with MC4 in Converter Lead Assembly
Technical Data of PV Wires and MC4 Connectors
Cables / Wires
TYPE | Cross Section | Wire Strand | Conductor Diameter | Outer Diameter | Conductor Resistance | Rated Voltage | Rated Current |
mm2 | No.OD (mm) | mm | mm | Ω/Km | V DC | A | |
1X2.5mm2 | 2.5 | 48XΦ0.25 | 2.0 | 5.2 | 8.06 | 1000 | 30 |
1X4.0mm2 | 4.0 | 56XΦ0.30 | 2.6 | 6.2 | 4.97 | 1000 | 50 |
1X6.0mm2 | 6.0 | 81XΦ0.30 | 3.3 | 7.2 | 3.52 | 1000 | 70 |
1X10mm2 | 10 | 74XΦ0.40 | 4.4 | 7.8 | 2.12 | 1000 | 95 |
Wire: Copper, Class 5, tinned | Temperature range: -40~+90℃ |
Insulation material:XLPE | High wear and abrasion resistance |
Double XLPE insulation | Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free | Smallest Permissible Bending Radius: 5 x D |
Microbe-resistance | Colours: Black, Red or blue |
Connectors
| MC4 Terminal Connector Technical Data | |||
| Rated Current | 50A | Degree of Protection | IP2*/IP68 |
| Rated Voltage | 1000V DC | Flame Class | UL94-V0 |
| Test Voltage | 6000V(50Hz,1min) | Safety Class | II |
| Overvoltage Category | CATIII | Suitable Cable | OD 4.5-8.5mm (2.5-10.0mm²) |
| Contact Resistance | <1.0mΩ | Temperature Range | -40℃~+85℃ |
| Contact Material | Copper, tin plated | Insulation Material | PPO |

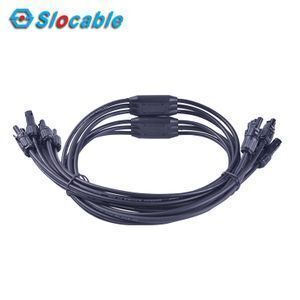

Pictures of Solar Panel Extension Cable:
(We can produce 2in1, 3in1, 4in1, 5in1 and 6in1 branch connectors,
which are without cables, you can consult me directly if you need)
Installation
More Products
Successful Cases
IF any inquiry, please contact me!
-
