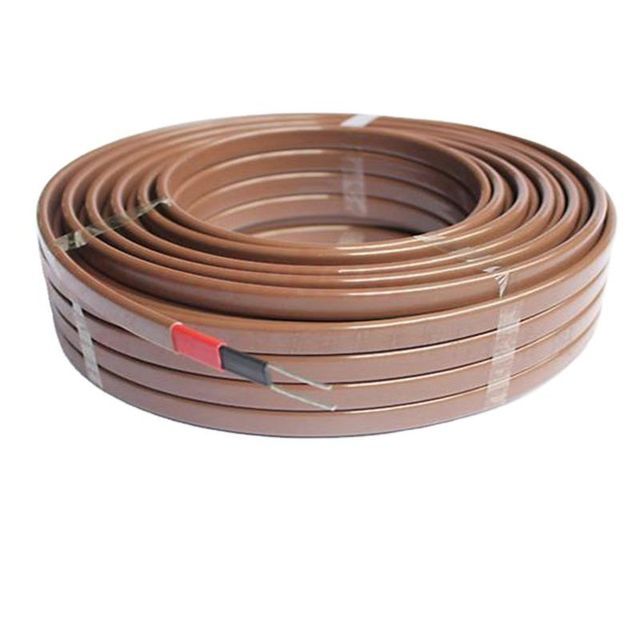

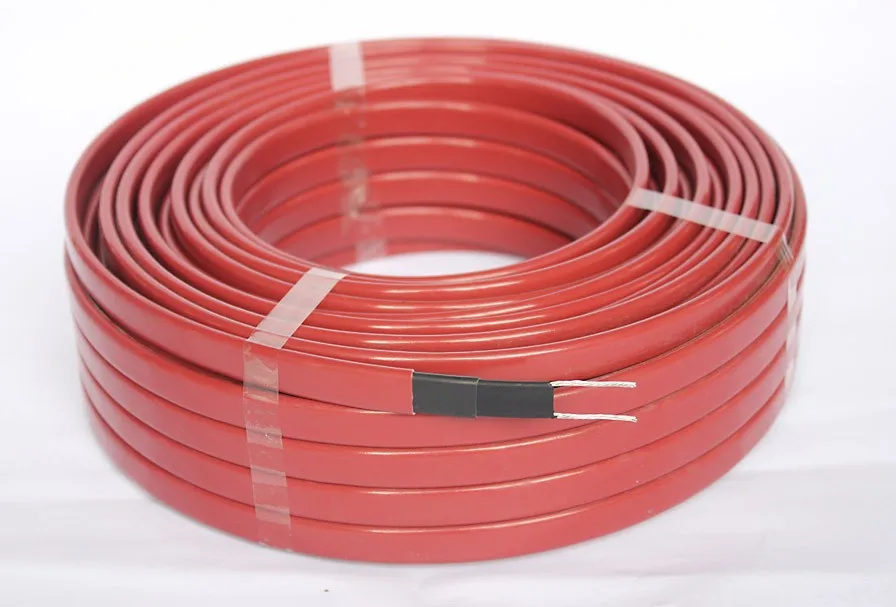

Self-regulating heating cable/heating pipe/heating wire

 Featuresheating cable

High efficiency and energy saving, automatically changing the power output according to the temperature change of the pipeline.

Easy to install, can be cut to any length (maximum circuit length) according to site needs, without wasting cables.

Lower installation costs, less maintenance and less downtime than steam tracing.

Won't overheat or burn even when wrapped on itself (overlapping).

Suitable for non-hazardous, hazardous and corrosive environments.

Cable construction Tinned copper busbars.

Self-regulating semiconductor core.

Thermoplastic insulation.

Tinned copper braid.

CR - Thermoplastic jacket.

CT-fluoropolymer jacket.

Use power 17, 25, 31, 40W.

Use voltage 110V-120V, 220-277V.

Maximum maintenance or continuous exposure temperature (energized) 65°C (149°F)

Maximum Intermittent Exposure Temperature, 1000 Hours (Power On) 85°C (185°F)

Minimum installation temperature -40°C (40°F)

Protection braid resistance <18.2 OHM/km

Bus wire gauge 16AWG

Obtained certificates: CE, UL, CUL
