WZUMER Resin Casting Low Voltage Waterproof Cable Gland Junction Box Straight Through Splice Splice Connection Kit For Underground Cables

Supplier: Wenzhou Yumao Electricity Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Vera Chen
Price: $17.90 / 10 - 499 pieces
$17.36 / 500 - 999 pieces
$17.00 / 1000 - 49999 pieces
$3.58 / >=50000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

port:	Ningbo	jacket:	eraser
Supply capacity:	70000 pieces per week	payment terms:	L/C, Western Union, T/T
Packaging Details:	5pcs/carton	Material:	plastic
Certificate:	CE certification	model:	SL
Origin:	China	Insulation Materials:	eraser
Material:	PC or PE	color:	transparent
Conductor material:	copper clad aluminum	application:	connection, waterproof cable connection
brand:	Wu Zuma	Number of Conductors:	4

You are here: Home>>Cable Gland Resin>>

click"Table of contents》 Learn more about Cable Gland Resins

Welcome to"Wu ZhongUmemergency room"

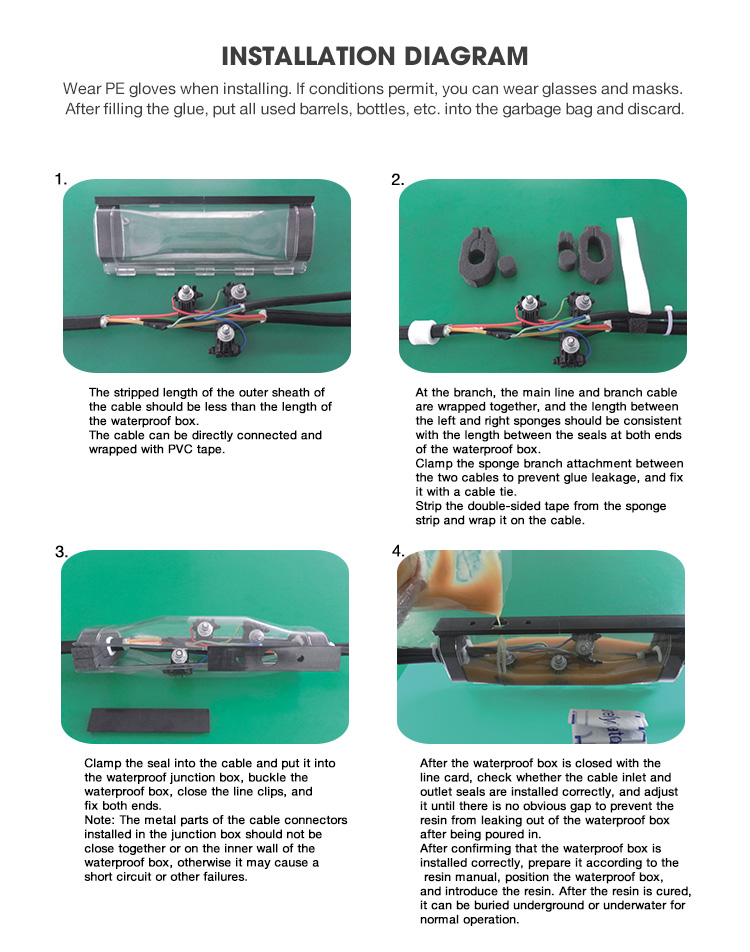

Resin usage method (please strictly abide by it, the store will not be responsible for any consequences caused by violating the following operation method)

1. Pull apart the gasket between group A and group B resin, and then fully soften for 2-3 minutes until uniform.

2. Immediately pour the mixed resin into the branch box. If the delay time is too long, it will make the resin sticky or even solidify.

3. Avoid direct contact with skin, eyes and resin.

detailed drawing

Product Description

thing	outer diameter	Maximum section range			aspect	Fill weight
				unarmored cable			Armored cable
SL-Z1	8-26mm	3*16mm²	3*10mm²	1854045mm	150 grams
						4*16mm²	4*10mm²
SL-Z2	14-32mm	3*35mm²	3*16mm²	2705555mm	365 grams
						4*25mm²	4*16mm²
SL-Z3	23-39mm	3*50mm²	3*50mm²	3556560mm	620 grams
						4*50mm²	4*35mm²
SL-Z4	28-50mm	3*95mm²	3*95mm²	4009075mm	1300 grams
						4*95mm²	4*70mm²
SL-Z5	45-65mm	3*240mm²	3*240mm²	485220180mm	6000 grams
						4*240mm²	4*240mm²
SLZD-8	Tunnel junction box (untruncated main cable) IP65
