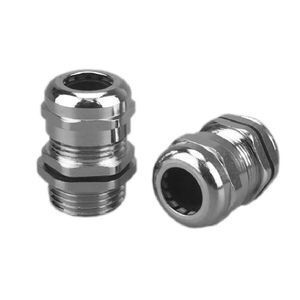

WZUMER Electrical Metal Stainless Steel Brass IP68 Standard Explosion Proof M Lengthen Cable gland
- 0.80 >=2000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Brand Name: | WZUMER; | Protection Grade: | IP68(with sealing); |
| Product name: | M Lengthen cable gland; | Protection Level: | IP68; |
| Certificate: | CE; | Model Number: | M Lengthen Thread; |
| Packaging Detail: | 200 pcs/bag; | Supply Ability: | 10000 Piece/Pieces per Day; |
| Size: | M12*1.5-M64*1.5; | Seal: | NBR; |
| Payment Terms: | L/C,T/T; | Port: | NING BO; |
| Thread: | M Lengthen; | Usage: | Cable Installation; |
| Work Temperature: | from -40℃ to 100℃(120℃ for short term); | Material: | Nickel plated brass; |
| Color: | White,Grey,Black,or By order; | Material: | Brass; |
| Place of Origin: | Zhejiang China; |
WZUMER Electrical Metal Stainless Steel Brass IP68 Standard Explosion Proof M Lengthen Cable gland
Product Description
Specification for screw teeth: metric teeth ( Metric), PG teeth, G(PF) teeth, NPT teeth:
| Name: | metal cable gland M Lengthen series |
| Material: | Nickel plated brass |
| Clamping Jaw: | Nylon,Flame Rating is V-2,According to UL94 |
| Seal: | NBR |
| Thread Type: | M according to EN 60423 |
| Test Standard: | EN50262/EN62444 |
| Protection Grade: | IP68(with sealing ) |
| Environment Temperature: | -40℃ to +100℃ |
| Note: | other seal material please inquire. |
+

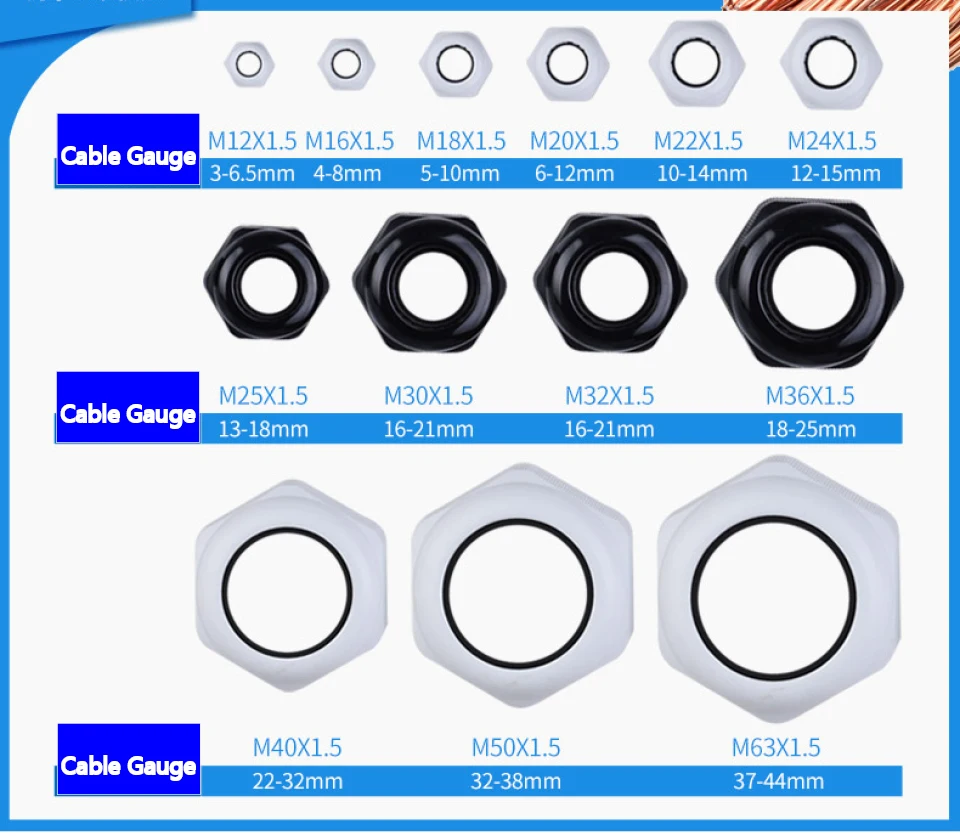

| Thread | Cable Range (mm) | Thread Length (mm) | Body Height(mm) | Spanner Size (mm) | Thread O.D(mm) | Panel Mounting Hole (mm) | Packing (Pcs/Bag) |
| M12x1.5 | 3-6.5 | 10 | 18 | 14 | 12 | 12-12.3 | 100 |
| M14x1.5 | 4-8 | 10 | 20 | 17 | 14 | 14-14.3 | 50 |
| M16x1.5 | 4-8 | 10 | 20 | 17 | 16 | 16-16.3 | 50 |
| M18x1.5 | 5-10 | 10 | 21 | 20 | 18 | 18-18.3 | 50 |
| M20x1.5 | 6-12 | 10 | 22 | 22 | 20 | 20-20.3 | 50 |
| M22x1.5 | 10-14 | 10 | 23 | 24 | 22 | 22-22.3 | 50 |
| M24x1.5 | 10-14 | 10 | 23 | 24/27 | 24 | 24-24.3 | 50 |
| M25x1.5 | 11-16 | 12 | 25 | 27 | 25 | 25-25.3 | 25 |
| M27x1.5 | 13-18 | 12 | 25 | 30 | 27 | 27-27.3 | 25 |
| M28x1.5 | 13-18 | 12 | 25 | 30 | 28 | 28-28.3 | 25 |
| M30x1.5 | 13-18 | 12 | 25 | 30/32 | 30 | 30-30.3 | 25 |
| M32x1.5 | 13-18 | 12 | 25 | 34 | 32 | 32-32.3 | 10 |
| M33x1.5 | 18-25 | 12 | 30 | 40 | 33 | 33-33.3 | 10 |
| M36x1.5 | 18-25 | 12 | 30 | 40 | 36 | 36-36.3 | 10 |
| M37x1.5 | 18-25 | 12 | 30 | 40 | 37 | 37-37.3 | 10 |
| M40x1.5 | 19-28 | 15 | 31 | 44 | 40 | 40-40.3 | 5 |
| M42x1.5 | 22-32 | 15 | 35 | 50 | 42 | 42-42.3 | 5 |
| M47x1.5 | 22-32 | 15 | 35 | 50 | 47 | 47-47.3 | 5 |
| M48x1.5 | 22-32 | 15 | 35 | 50/52 | 48 | 48-48.3 | 5 |
| M50x1.5 | 27-35 | 15 | 37 | 55 | 50 | 50-50.3 | 5 |
| M54x1.5 | 32-38 | 15 | 57 | 57 | 54 | 54-54.3 | 5 |
| M56x1.5 | 32-38 | 15 | 57/59 | 57/59 | 56 | 56-56.3 | 5 |
| M60x1.5 | 37-44 | 15 | 64 | 64 | 60 | 60-60.3 | 4 |
| M63x1.5 | 37-44 | 15 | 64/68 | 64/68 | 63 | 63-63.3 | 4 |
| M64x1.5 | 37-44 | 15 | 64/68 | 64/68 | 64 | 64-64.3 | 4 |
Certifications
Application
Company Profile
FAQ
FAQ:
+
1.Online Service and Perfect After-sell Service |
24-hour online service, Pls feel free to contact with us. |
2.Manufacturer |
| We are Factory Direct Sales, ensuring Competitive Price, High Quality and Quick Delivery. |
| 3. OEM/ODM |
| We have our own Professional Team for more than 10 Years, can make as you require. |
| 4.Payment Term |
| Usually by T/T, if other terms, welcome to disguss with us. |
| 5.Delivery |
| Within 5-20 Days after receipt of the deposit. |
| 6.Certificate |
| ROHS,CE,ISO9001,SGS,CQC |
| 7.Free sample |
| We provide samples for Free, and you pay for the express fees. |
Packing Diagram
