Cable Clamp Strain Relief Connectors
-
Supplier: Taizhou Muyton Import And Export Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Adela Leng -
Price: $1.00 /piece -
Min. Order: 1 piece
Product details
| model: | Deluxe Cable Clip | Packaging Details: | Normal: polybag and carton and pallet Special: customized packing |
| brand: | Maiton | application: | cable protection |
| product name: | Deluxe Cable Clip | Processing: | accepted |
| port: | Shanghai, Ningbo, Shenzhen | size: | custom made |
| Supply capacity: | 100000 pieces per month | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Origin: | Jiangsu, China | Protection class: | IP68 |
| Material: | Stainless steel | color: | silver |
Product Description

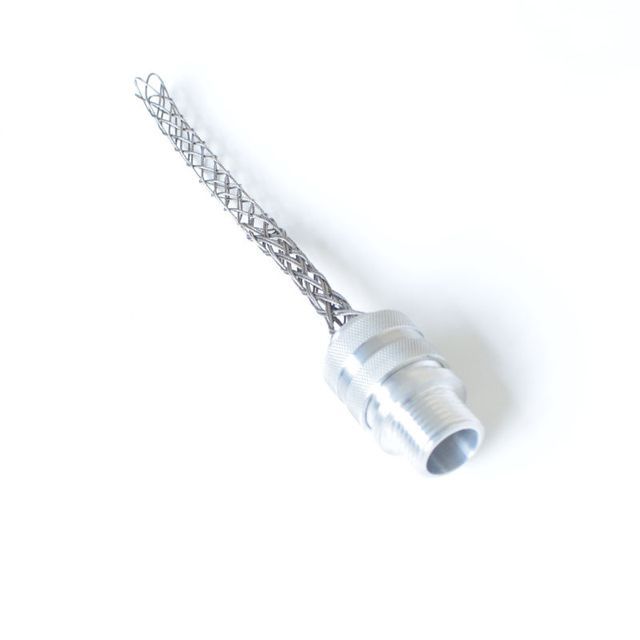

Strain Relief Grip--Deluxe Cable Clip, Straight Male
* Strain relief clips pull cables, ropes or pipes into place and support them after installation to prevent cables from pulling out.
* Woven from stainless steel mesh with a corrosion resistant aluminum body.
* Prevents pulling force reducing cable pull out and system downtime.
* For use where cables or wires are exposed to moisture or frequently washed.
* Woven from stainless steel mesh with a corrosion resistant aluminum body.
* Prevents pulling force reducing cable pull out and system downtime.
* For use where cables or wires are exposed to moisture or frequently washed.
Part Number | Cable diameter | NPT fittings | mesh length |
DCG409 | 0.250-0.375"(6.35-9.52mm) | 1/2" | 4.25 inches (108.00 mm) |
DCG412 | 0.375-0.500"(9.52-12.70mm) | 1/2" | 6.25 inches (158.75 mm) |
DCG416 | 0.500-0.625"(12.70-15.88mm) | 1/2" | 6.50 inches (165.10 mm) |
DCG419 | 0.625-0.750"(15.88-19.05mm) | 1/2" | 8.25 inches (209.55 mm) |
DCG422 | 0.750-0.875"(19.05-22.23mm) | 1/2" | 9.25 inches (235.00 mm) |
DCG609 | 0.250-0.375"(6.35-9.52mm) | 3/4" | 4.25 inches (108.0 mm) |
DCG612 | 0.375-0.500"(9.52-12.70mm) | 3/4" | 6.25 inches (158.75 mm) |
DCG615 | 0.500-0.625"(12.70-15.88mm) | 3/4" | 6.25 inches (158.75 mm) |
DCG619 | 0.625-0.750"(15.88-19.05mm) | 3/4" | 8.25 inches (209.55 mm) |
DCG812 | 0.375-0.500"(9.52-12.70mm) | 1" | 5.75 inches (146.05 mm) |
DCG815 | 0.500-0.625"(12.70-15.88mm) | 1" | 6.50 inches (165.10 mm) |
DCG819 | 0.625-0.750"(15.88-19.05mm) | 1" | 8.25 inches (209.55 mm) |
DCG822 | 0.750-0.875"(19.05-22.23mm) | 1" | 9.25" (234.950mm) |
DCG825 | 0.875-1.000"(22.23-25.40mm) | 1" | 8.13 inches (206.38 mm) |
DCG1025 | 0.875-1.000"(22.23-25.40mm) | 1-1/4" | 8.63 inches (219.08 mm) |
DCG1028 | 1.000-1.125"(25.40-28.58mm) | 1-1/4" | 9.00" (228.60mm) |
DCG1032 | 1.125-1.250"(28.58-31.75mm) | 1-1/4" | 10.00" (254.00mm) |
DCG1034 | 1.250-1.375"(31.75-34.93mm) | 1-1/4" | 12.00" (304.80mm) |
DCG1228 | 1.000-1.125"(25.40-28.58mm) | 1-1/2" | 9.00" (228.60mm) |
DCG1232 | 1.125-1.250"(28.58-31.75mm) | 1-1/2" | 10.00" (254.00mm) |
DCG1234 | 1.250-1.375"(31.75-34.93mm) | 1-1/2" | 10.00" (254.00mm) |
DCG1434 | 1.250-1.375"(31.75-34.93mm) | 2.00" | 12.00" (304.80mm) |
DCG1436 | 1.312-1.437"(33.32-36.50mm) | 2.00" | 12.00" (304.80mm) |
DCG1439 | 1.437-1.562"(36.50-39.67mm) | 2.00" | 13.13 inches (333.38 mm) |
DCG1442 | 1.562-1.687"(39.67-42.85mm) | 2.00" | 15.70 inches (398.78 mm) |
DCG1446 | 1.687-1.812"(42.85-46.02mm) | 2.00" | 16.25 inches (412.75 mm) |
DCG1447 | 1.750-1.875"(44.45-47.63mm) | 2.00" | 16.25 inches (412.75 mm) |
DCG1449 | 1.812-1.937"(46.02-49.20mm) | 2.00" | 16.25 inches (412.75 mm) |
DCG1452 | 1.937-2.062"(49.20-52.37mm) | 2.00" | 16.25 inches (412.75 mm) |
DCG1455 | 2.062-2.187"(52.37-55.55mm) | 2.00" | 17.50 inches (444.50 mm) |

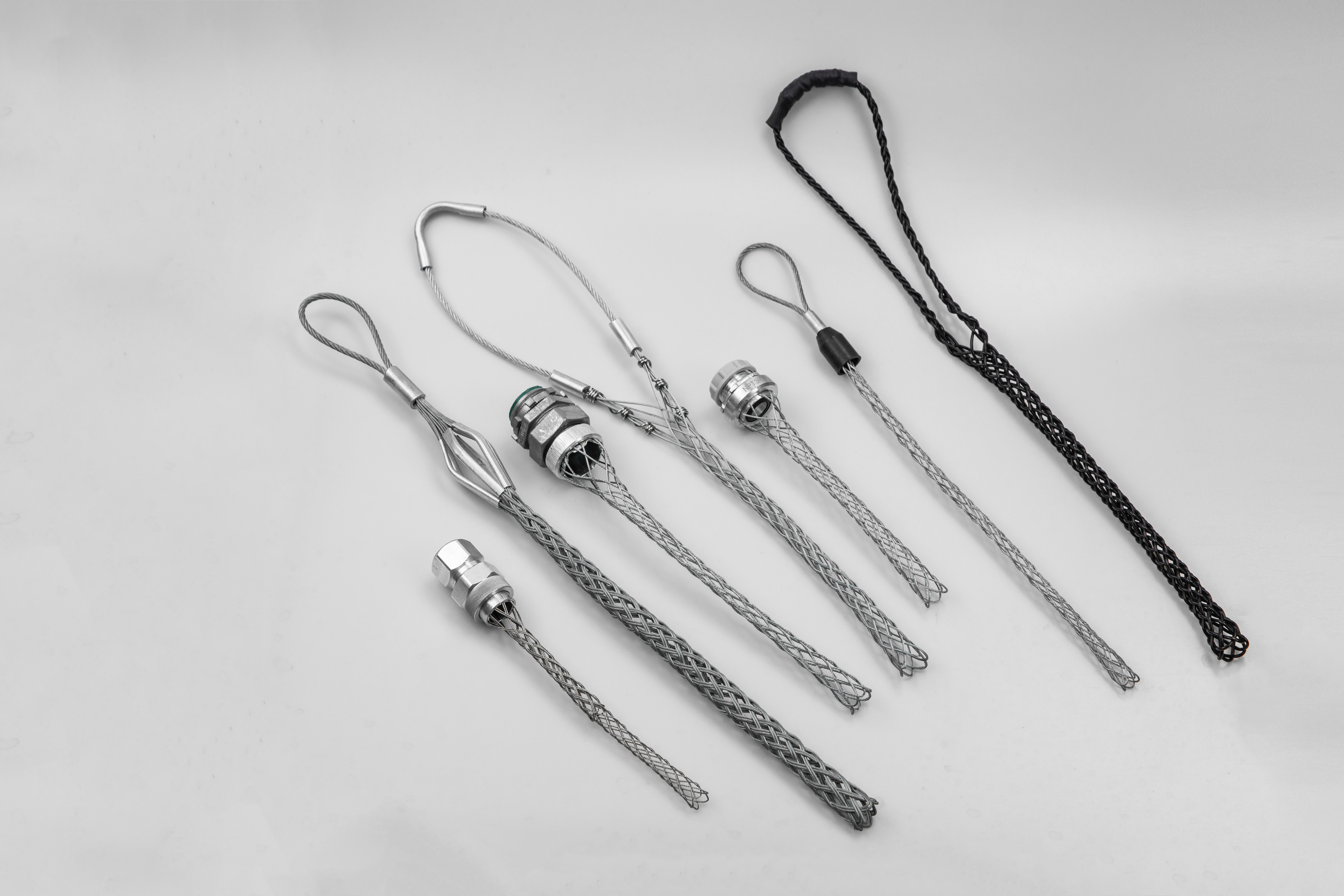

Types of Strain Relief Clamps
Wire Mesh Grip Series
Muyton offers a variety of strains rLighten, pull and support the grip over a wide rangeStyles and sizes to meet all your cable protection needs.
support handle
Support handles distribute the weight of vertical drops and tilts
Run the length of the handle to protect the cable from damage.
A variety of suspension options are available to accommodate a wide range of cables
Support for installation.
Run the length of the handle to protect the cable from damage.
A variety of suspension options are available to accommodate a wide range of cables
Support for installation.
handle
Pulling Grips are reusable tools for pulling cables, wires and/or
Ropes in overhead and underground cable traction. These handles protect
Cables are protected from fraying and ease through bending and cable
rough surface.
Ropes in overhead and underground cable traction. These handles protect
Cables are protected from fraying and ease through bending and cable
rough surface.
Strain Relief Grip
Strain relief clips for connecting cable housings and industrial
equipment. These clamps prevent the cable or conduit from being pulled out at this point
Terminated by tension. Strain relief clamps also distribute stress
Runs through the entire length of the mesh during bending, extending service life
cable.
equipment. These clamps prevent the cable or conduit from being pulled out at this point
Terminated by tension. Strain relief clamps also distribute stress
Runs through the entire length of the mesh during bending, extending service life
cable.
