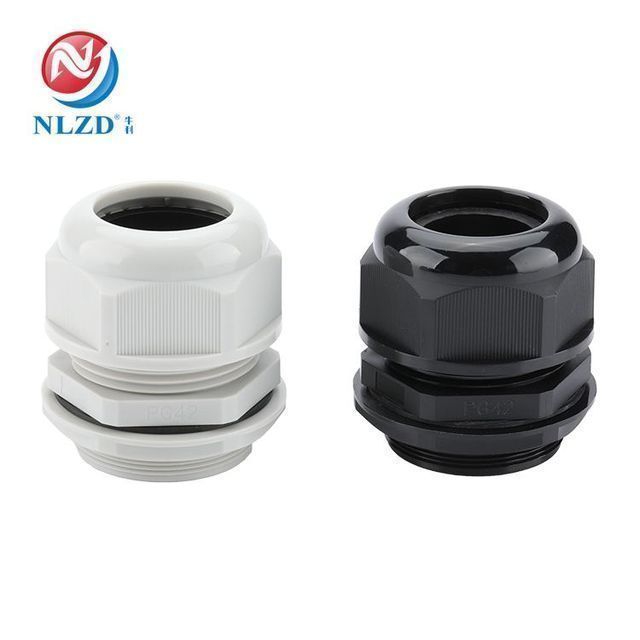

NLZD nylon plastic IP68 wire and cable waterproof connector fixed head PG connector cable gland
- 0.05 1000 - 4999 pieces
- 0.04 5000 - 99999 pieces
- 0.02 >=100000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Protection class: | IP68,IP68 | Packaging Details: | 100pcs/bag+sticker+export carton+mark support custom packaging and customer's LOGO |
| place of origin; place of origin: | Zhejiang, China | brand: | NLZD |
| Certification: | CE, ROHS, SGS | sample: | free |
| OEM&ODM: | usable | Material: | nylon, nylon |
| Operating temperature: | Static: -40~100℃ (120℃ for a short time) | port: | Ningbo, Yiwu, Shanghai, Shenzhen, Guangzhou |
| color: | White, grey or black, other colours on request | product name: | Cable Connector |
| size: | PG7~PG63 | port: | Ningbo or Shanghai or Guangzhou |
| payment terms: | L/C, T/T, Western Union, PayPal | Supply capacity: | 10000 bags per day Delivery term: FOB, CIF, DDP or express |
| model: | NLCG09 |
Product Description
product name | Cable Connector |
Wire | PG |
color | Natural white, black (ral9005), grey (ral7035), other colors available upon request |
Material | UL Listed Nylon 66, Flammability 94V-2 |
seal | Nitrile rubber, EPDM rubber |
Cable range | 3~40mm |
IP level | IP68 (with seal) |
Operating temperature | Static: -40°C to 100°C (120°C for a short time) Dynamic: -20°C to 80°C (100°C for a short time) |
Certificate | CE, RoHS, SGS |
postscript | The sealing ring and gasket are made of EPDM (high temperature, cold and anti-corrosion rubber can be customized) |
detailed picture
Size Information
Please refer to the following specifications:
