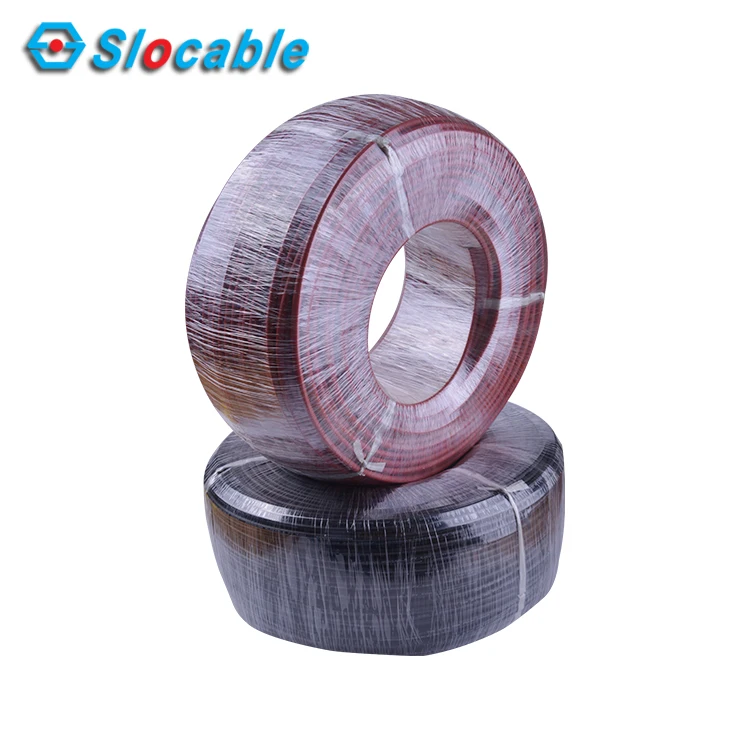

Slocable solar cable dc red black 4mm suppliers
-
Supplier: Dongguan Slocable Photovoltaic Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Abby Peng -
Price: $0.44 / >=100 meters -
Min. Order: 100 meters
Product details
| Packaging Detail: | 250meters a roll .2 rolls in a carton. Size:38cm*38cm*11cm G.W:17kg; | cross section: | 4.0mm2; |
| Conductor Material: | Copper; | Colours: | black&red; |
| Number of Conductors: | 1; | Payment Terms: | L/C,T/T,Western Union,paypal; |
| Conductor material: | copper; | Temperature range: | -40℃-+90℃; |
| Model Number: | PV-1*4.0mm2; | Delivery Detail: | 3-15 working days; |
| Wire: | class5,tinned; | Port: | shenzhen; |
| Supply Ability: | 800000 Meter/Meters per Month; | Rated voltage: | DC1000V DC1500V; |
| Brand Name: | Slocable; | Insulation material: | XLPE; |
| Insulation Material: | XLPE; | Application: | solar energy system; |
| Place of Origin: | Guangdong China; | Flame test according to: | DIN EN 50265-2-1 UL 1571(VW-1); |
| Life time: | 25 years; | Smallest permissible bending radius: | 5*D; |
| Jacket: | PE; |
Detail information for Slocable solar cable dc red black 4mm suppliers:

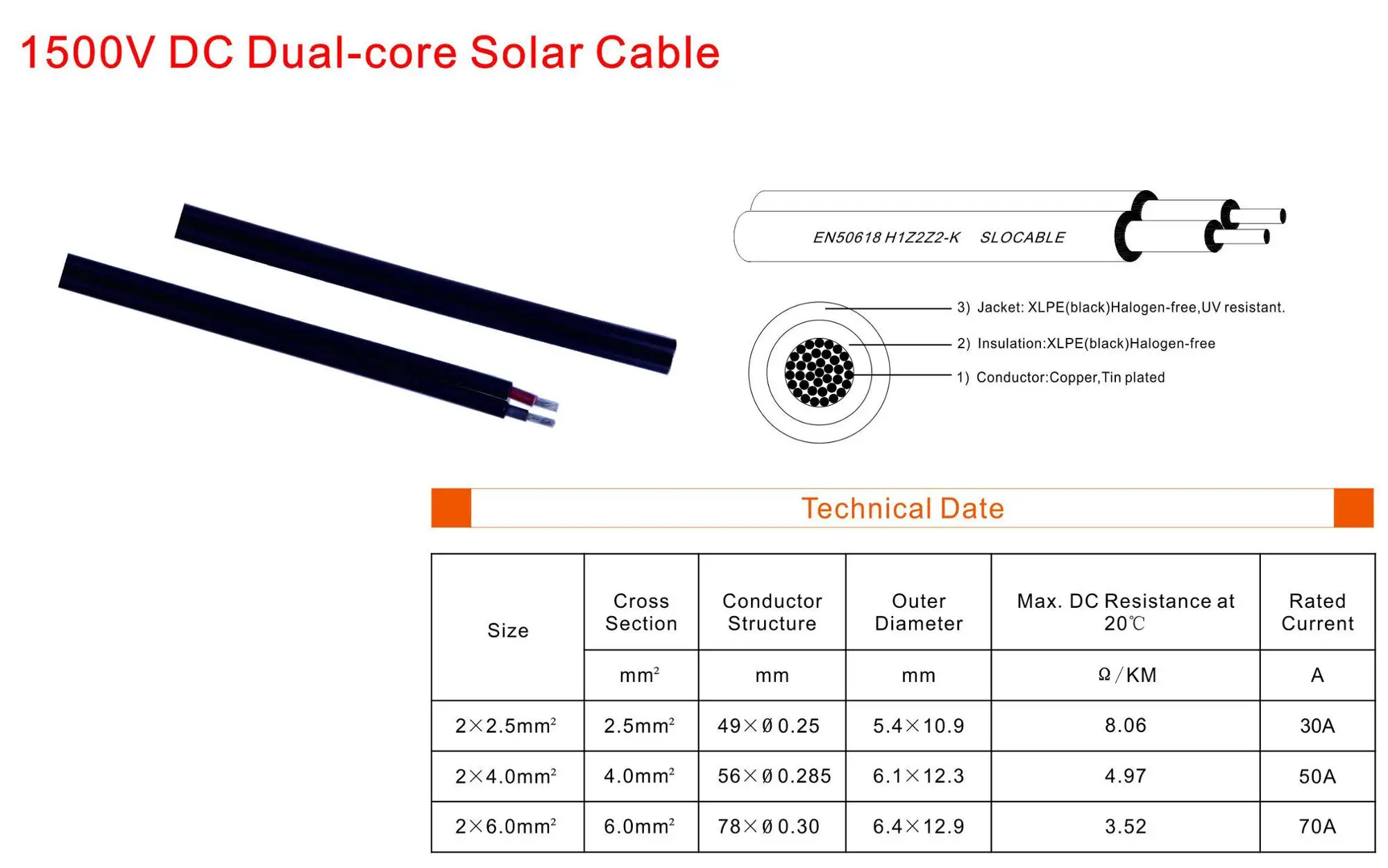

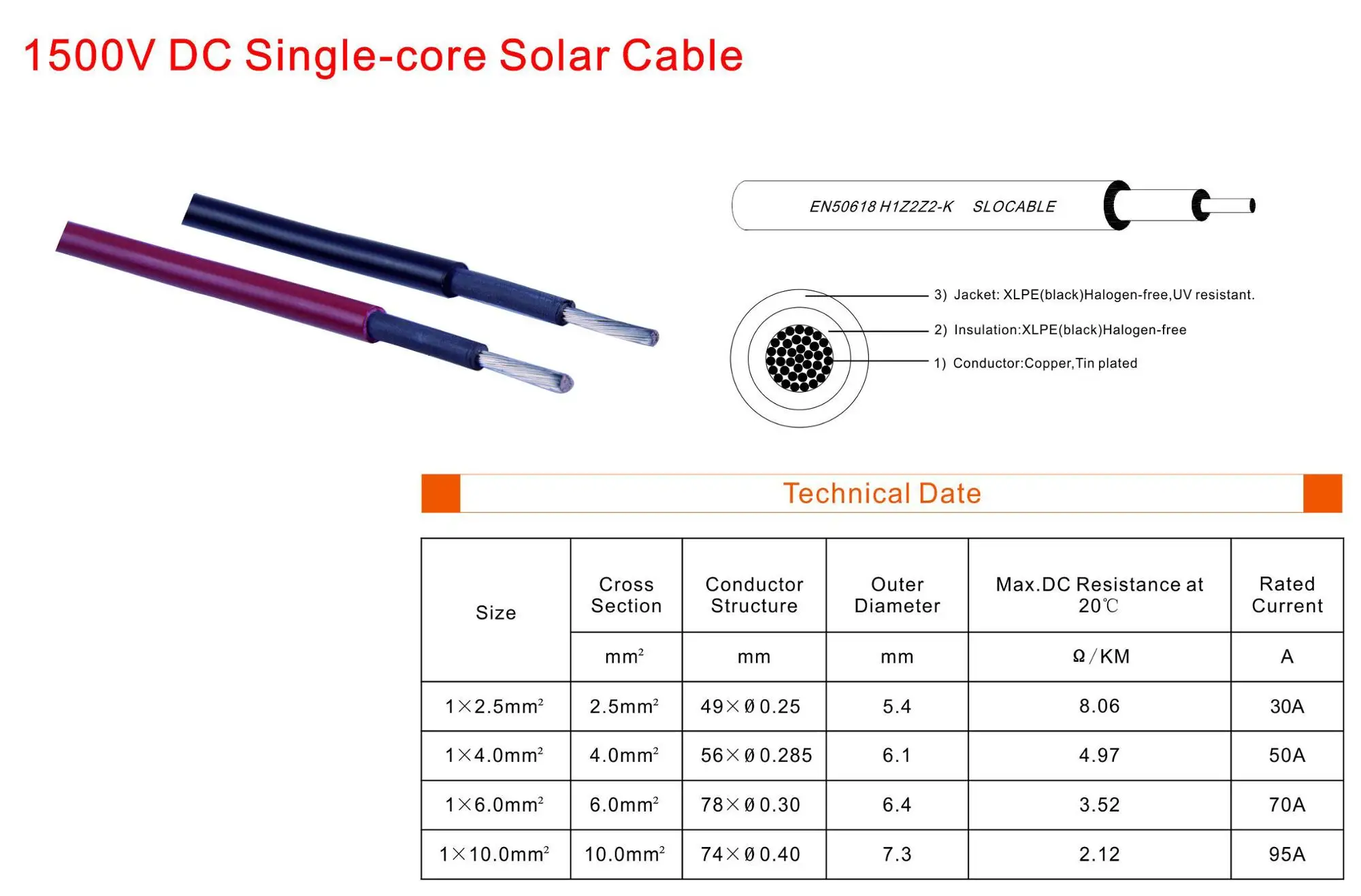

1000V Solar cable PV cable Data sheet
Type | Cross section | Wire struct No.OD(mm) | Conductor diameter | Conductor diameter | Conductor resistance | Rated voltage | Rated current |
mm2 | No.OD(mm) | mm | mm | Ω/Km | V AC/DC | A | |
1x2.5mm2 | 2.5 | 48X0.25 | 2.0 | 5.3 | 8.06 | 1000/1800 | 30 |
1X4.0mm2 | 4.0 | 56X0.30 | 2.6 | 6.2 | 4.97 | 1000/1800 | 50 |
1X6.0mm2 | 6.0 | 81X0.30 | 3.3 | 7.2 | 3.52 | 1000/1800 | 70 |
1X10.0mm2 | 10.0 | 74X0.40 | 4.4 | 8.3 | 2.12 | 1000/1800 | 95 |
2X2.5mm2 | 2.5 | 48X0.25 | 2.0 | 5.40X10.90 | 8.06 | 1000/1800 | 30 |
2X4.0mm2 | 4.0 | 56X0.30 | 2.6 | 6.20x12.50 | 4.97 | 1000/1800 | 50 |
2X6.0mm2 | 6.0 | 81X0.295 | 3.3 | 7.10x14.30 | 3.52 | 1000/1800 | 70 |
