Solar Panel MC4 PV Inline Fuse Holder for Solar System

Supplier: Dongguan Slocable Photovoltaic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Abby Peng
Price: $3.90 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Type:	Fuse Holder;	Rated Current:	MAX.30A(1...30A);
Contact material:	Copper, Tin plated;	Port:	Shenzhen, Guangdong, China;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Place of Origin:	Guangdong China;
Packaging Detail:	38g/pcs 300pcs/carton,;	Insulation material:	PPO;
Quality assurance:	5 years;	Supply Ability:	500000 Piece/Pieces per Month;
Contact resistance:	<5mΩ;	Rated Voltage:	1000V/1500V DC;
Brand Name:	Slocable;	Model Number:	CN40-FURY PV fuse holder;
Ambient temperature range:	-40℃...+85℃(IEC);	Degree of protection:	IP68;
Test voltage:	8kV(50Hz,1 min);

Product description

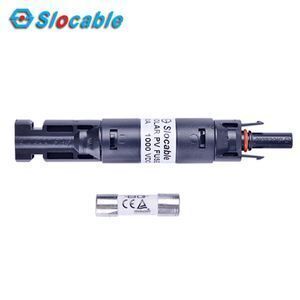

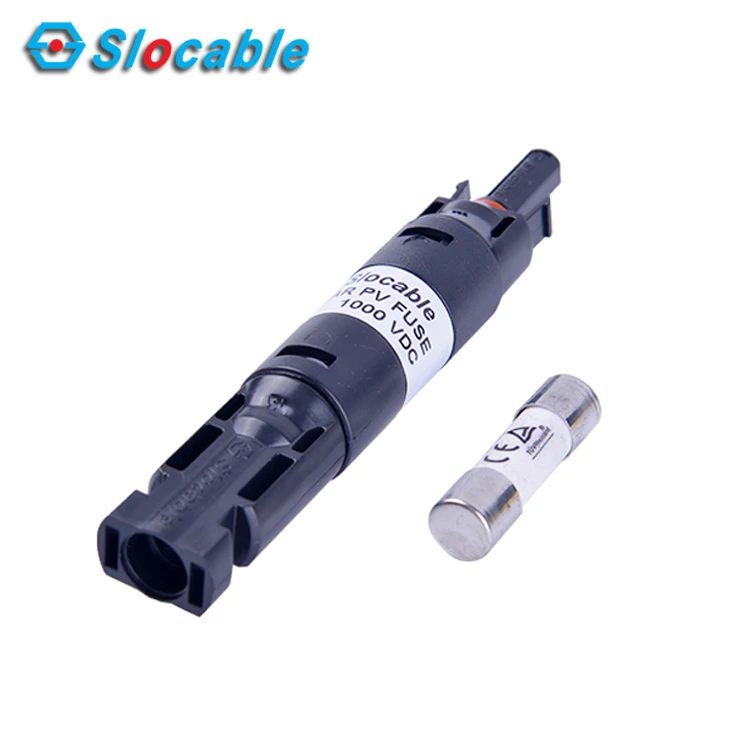

IP68 Waterproof PV Fuse Holder for Solar Project

Technical data

Technical data
Insulation material	PPO
Rated current	MAX.30A(1...30A)
Rated voltage	1000/1500V DC
Test voltage	8kv(50HZ,1min)
Contact resistance	<5mΩ
Contact material	Copper,Tin plated
Degree of protection	IP68
Safety class	II
Flame class	UL94-V0
Insertion force	Max.50N
Withdrawal force	Min.50N
Ambient temperature range	-40°C-+85°C(IEC)
Suitable cable cross sections	2.5/4.0/6.0/10.0 mm2 14/12/10/8 AWG

Advantages of our connectors:

Compatible for MC4.
Easy and quick for assembling.
Safe mating provided by auto-lock operation.
Multiple plugging and unplugging cycles.
Accomodates PV cable with different insulation diameters.
High current carrying capacity.
TUV and CE approved.

Product pictures

Detail Pictures:

Click here to see other products:

Company and factory

Packing & Shiping

Our Application Projects:

FAQ

Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?

Solar Cables, Connectors (MC4,MC3,TYCO), PV Fuse Holder,Circuit breakers and other solar relative products. We are the Manufacturer with more than 9 years experience.

Q2: How can I get the Quotation of the products

Message us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.

Q3: How does your company do regarding Quality Control?

All raw material we selected the high quality one.

Professional & Skilful workers care every details in handling the producing.

Quality Control Department specially responsible for quality checking in each process.

Q4: Do you provide OEM Project Service

OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.

Q5: How Could I get the Sample?

We are honored to offer you samples,Samples is free provided,but need pay the courier freight.

If you have a courier account, you can send your courier to collect samples.

Q6: How long is the delivery time?

For Sample: 1-3 Days ; For small Orders: 3-10 Days;For mass Orders: 10-18 Days.
