Y Type MC4 PV Branch Splitter Connector for Cable Wires

Supplier: Dongguan Slocable Photovoltaic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Abby Peng
Price: $2.15 / >=50 sets
Min. Order: 50 sets

Click here to contact

Product details

Packaging Detail:	50g/set Standard carton packing;	Rated Current:	50A;
Supply Ability:	600000 Set/Sets per Month;	Gender:	Male & Female;
Place of Origin:	Guangdong China;	Quality assurance:	5 years;
Port:	Shenzhen, Guangdong, China;	Insulation material:	PPO;
Test voltage:	8kV(50Hz,1 min);	Brand Name:	Slocable;
Degree of protection:	IP68;	Type:	MMCX;
Flame class:	UL94-V0;	Ambient temperature range:	-40℃...+85℃(IEC);
Model Number:	BC40 MC4 branch connector;	Contact material:	Copper, Tin plated;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Contact resistance:	<5mΩ;
Application:	Power;	Rated Voltage:	1500V DC;

Product description

PPO MC4 PV Branch Connector for Solar System

Technical data

Technical data
Insulation material	PPO
Rated current	50A
Rated voltage	1500V DC
Test voltage	8kv(50HZ,1min)
Contact resistance	<5mΩ
Contact material	Copper,Tin plated
Degree of protection	IP68
Safety class	II
Flame class	UL94-V0
Insertion force	Max.50N
Withdrawal force	Min.50N
Ambient temperature range	-40°C-+85°C(IEC)
Overvoltage category	CATIII/2

Advantages of our connectors:

Compatible for MC4.
Easy and quick for assembling.
Safe mating provided by auto-lock operation.
Multiple plugging and unplugging cycles.
Qucik, paraalle connection of PV modules.
High current carrying capacity.
TUV and CE approved.

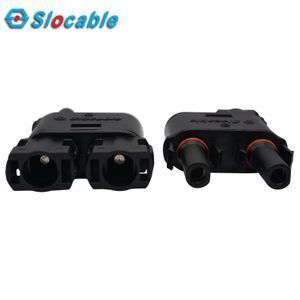

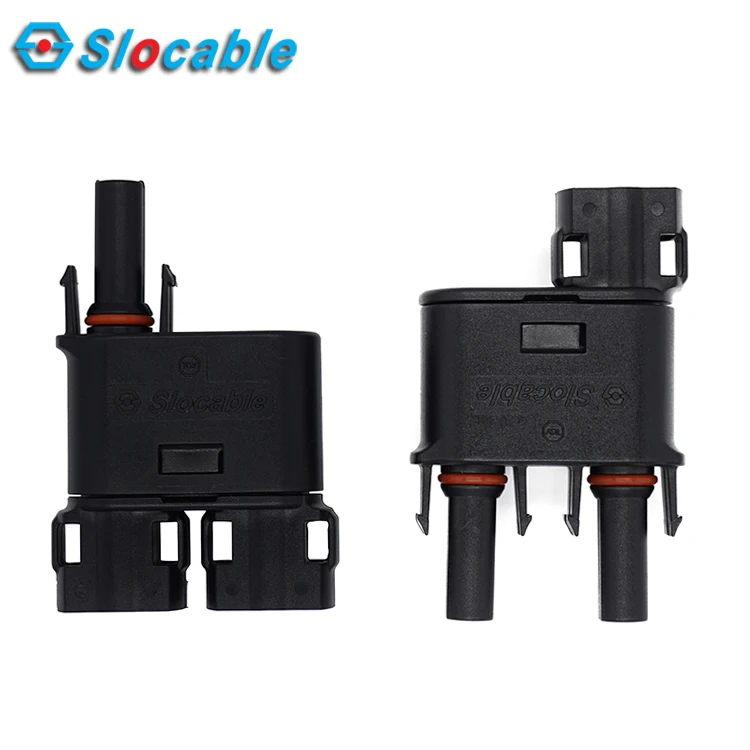

Product pictures

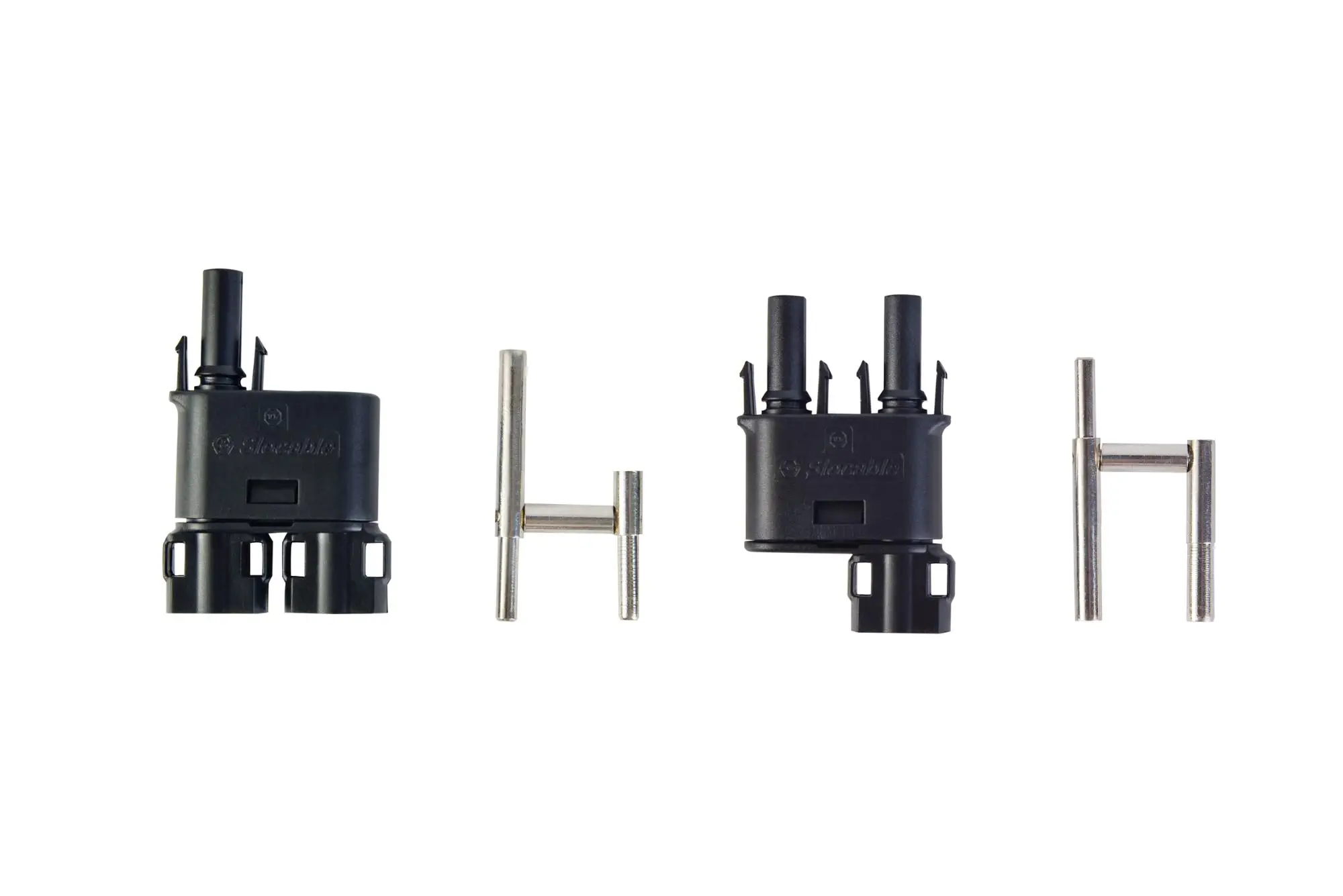

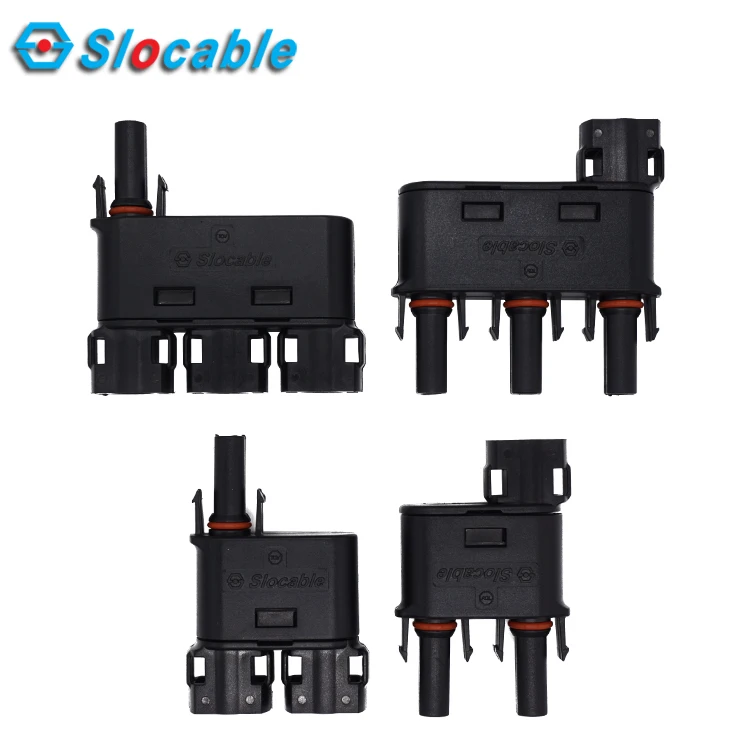

Detail pictures:

Click here to see other products:

Company and factory

Packing & Shiping

Our application projects:

FAQ

Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?

Solar Cables, Connectors (MC4,MC3,TYCO), PV Fuse Holder,Circuit breakers and other solar relative products. We are the Manufacturer with more than 9 years experience.

Q2: How can I get the Quotation of the products

Message us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.

Q3: How does your company do regarding Quality Control?

All raw material we selected the high quality one.

Professional & Skilful workers care every details in handling the producing.

Quality Control Department specially responsible for quality checking in each process.

Q4: Do you provide OEM Project Service

OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.

Q5: How Could I get the Sample?

We are honored to offer you samples,Samples is free provided,but need pay the courier freight.

If you have a courier account, you can send your courier to collect samples.

Q6: How long is the delivery time?

For Sample: 1-3 Days ; For small Orders: 3-10 Days;For mass Orders: 10-18 Days.
