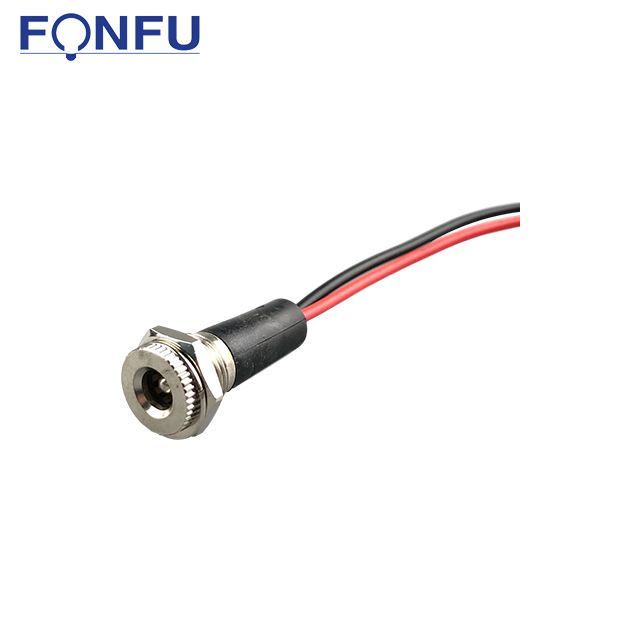

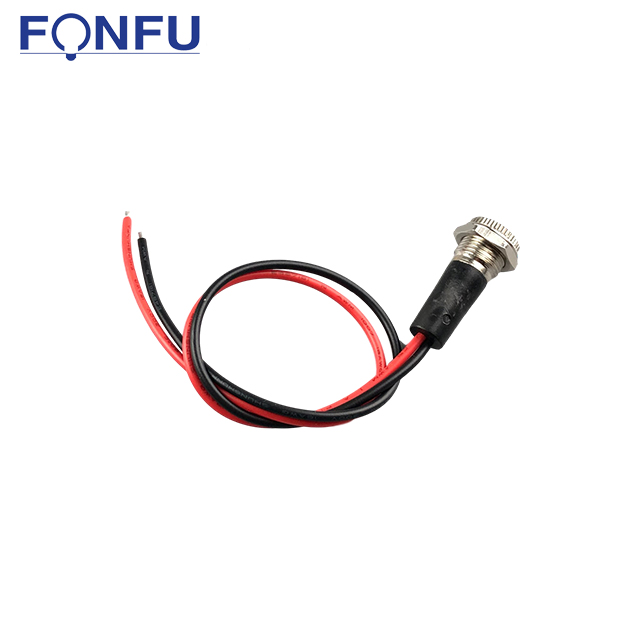

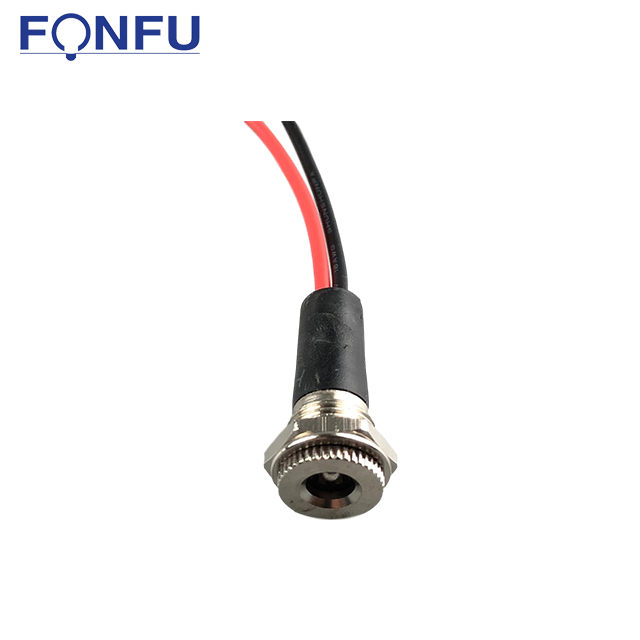

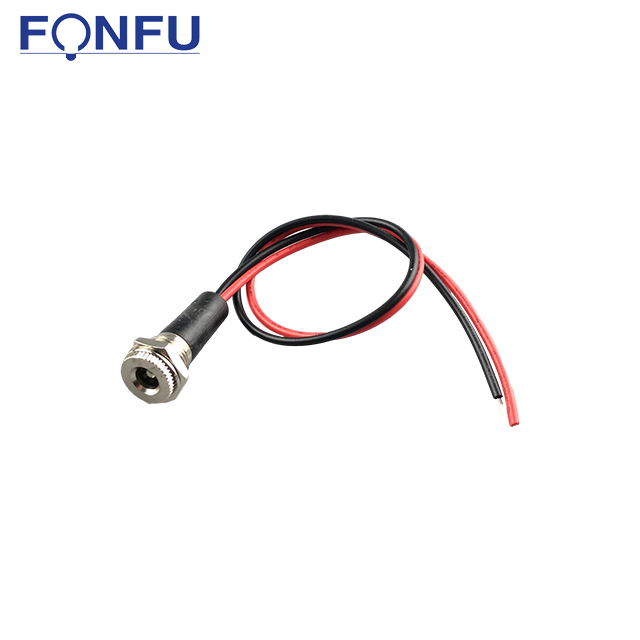

DC-099 DC Power Jack Connector 5.5 x 2.5mm Thread Female Thread Panel Mount Power Jack with Cord

Supplier: Shenzhen Fengfu Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms sun chen
Price: $0.58 / 1 - 999 pieces
$0.56 / 1000 - 4999 pieces
$0.55 / >=5000 pieces
Min. Order: 1 piece

Click here to contact

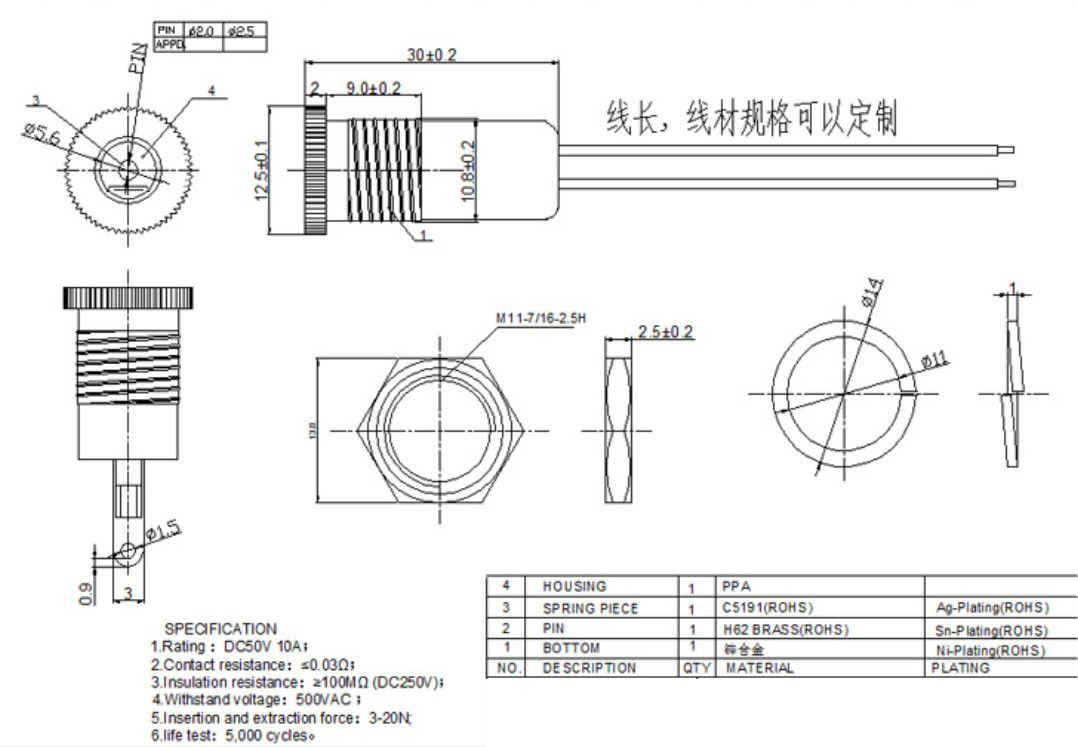

Product details

Rated current:	5A	Service life:	5000
Gross weight per piece:	0.012 kg	gender:	female
Single package size:	2.5X1.4X1.4 cm	model:	DC-099 5.5*2.5mm with wire
color:	Black	Sales unit:	single product
application:	car	Rated voltage:	50V
Origin:	Guangdong, China	type:	direct current
Pin:	5.5*2.5	Operating temperature:	-40℃~+80℃
brand:	Rich

Product Description

The power socket is a device used to connect the alternating current provided by the mains to power household appliances and portable small devices. The power socket is a female connector with a slot or notch, which is used to insert a rod-shaped or copper-plate-shaped power plug, through which electrical appliances are powered
