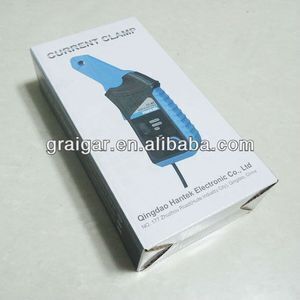

Hantek AC/DC Current Clamp CC-65 For DSO3064 kit
- 40.00 piece
| Supply Ability: | 8000 Piece/Pieces per Week; | Port: | Shenzhen; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; | Brand Name: | HANTEK; |
| Delivery Detail: | 7; | Model Number: | CC-65; |
| Place of Origin: | Guangdong China; | Packaging Detail: | export carton; |
Hantek AC/DC Current Clamp CC-65 For DSO3064 kit
Feature:
- AC/DC frequency range: Up to 20 kHz
- Effective Measurement Range: 20mA to 65A DC
- It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
- Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage.
- And if connect to an oscilloscope by BNC type connector, you are able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.
Application:
- Power circuit measurement and malfunction analysis;
- Motor drive of frequency converter (or other electronics) measurement;
- Power electronics equipments measurement.
Specification:
DCA range | 1 mV /10mA | +/-(1.5%+/-5mA) 10mA ~ 20A |
1mV/100mA | +/-(2%+/-20mA) 100mA ~ 40A | |
+/-(4%+/-0.3A) 40A ~ 65A | ||
ACA range | 1mV/10mA | +/-(2%+/-30mA) 100mA ~ 10A (40Hz ~ 2KHz) |
+/-(4%+/-30mA) 100mA ~ 10A (2KHz ~ 10KHz) | ||
+/-(6%+/-30mA) 100mA ~ 10A (10KHz ~ 20KHz) | ||
+/-(8%+/-30mA) 10A ~ 15A (40Hz ~ 20KHz) | ||
1mV/100mA | +/-(2%+/-30mA) 200mA ~ 40A (40Hz ~ 1KHz) | |
+/-(4%+/-30mA) 200mA ~ 40A (1KHz ~ 2KHz) | ||
+/-(6%+/-30mA) 200mA ~ 40A (3KHz ~ 5KHz) | ||
+/-(8%+/-0.3A) 40A ~ 65A (40Hz ~ 20KHz) | ||
Captured Conductor Size | 9mm maximum | |
Low Battery Indictor | red LED lighting | |
Operating Temperature | 0Cto 50C 70% R.H. | |
Storage Temperature | -20C to +70C, 80% R.H. | |
Battery Type | 9V DC, NEDA 1604, 6F22,0006P | |
Battery Life | 100 hours typical with alkaline | |
Weight | 250 gm typical | |
Dimensions | 195mm(H) x 70mm(W) x 33mm(D) | |
Output | Supplied with coil cable with straight banana plug or BNC plug |
