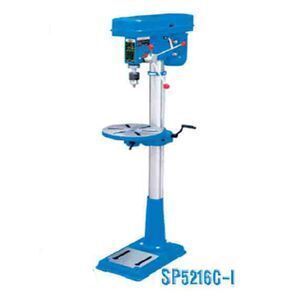

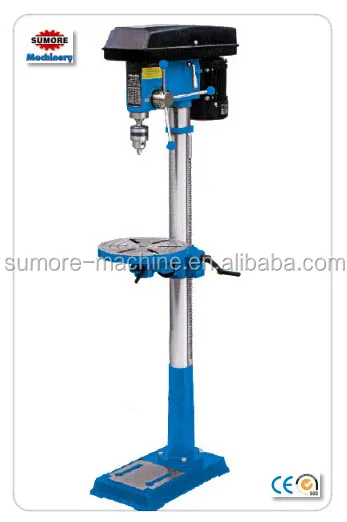

china cheap CE Approved Mini types of bench drill press machine SP5216C-I

Click here to contact

Product details

Height:	1580mm;	Place of Origin:	Shanghai China;
Packaging Detail:	1 set/polywood case (aluminum strips strengthen);	Model Number:	SP5216C-I;
Spindle taper:	MT2;	Column dia:	70-72;
Base size:	460*272mm;	Supply Ability:	10000 Set/Sets per Month;
Drilling capacity:	16mm 5/8'';	Spindle travel:	85mm;
Quantity 20':	200pcs;	Port:	Shanghai Port;
Swing:	325mm;	Payment Terms:	L/C,D/A,D/P,T/T;
Table size:	290mm;	Class of speed:	16;

HOME

Product Description

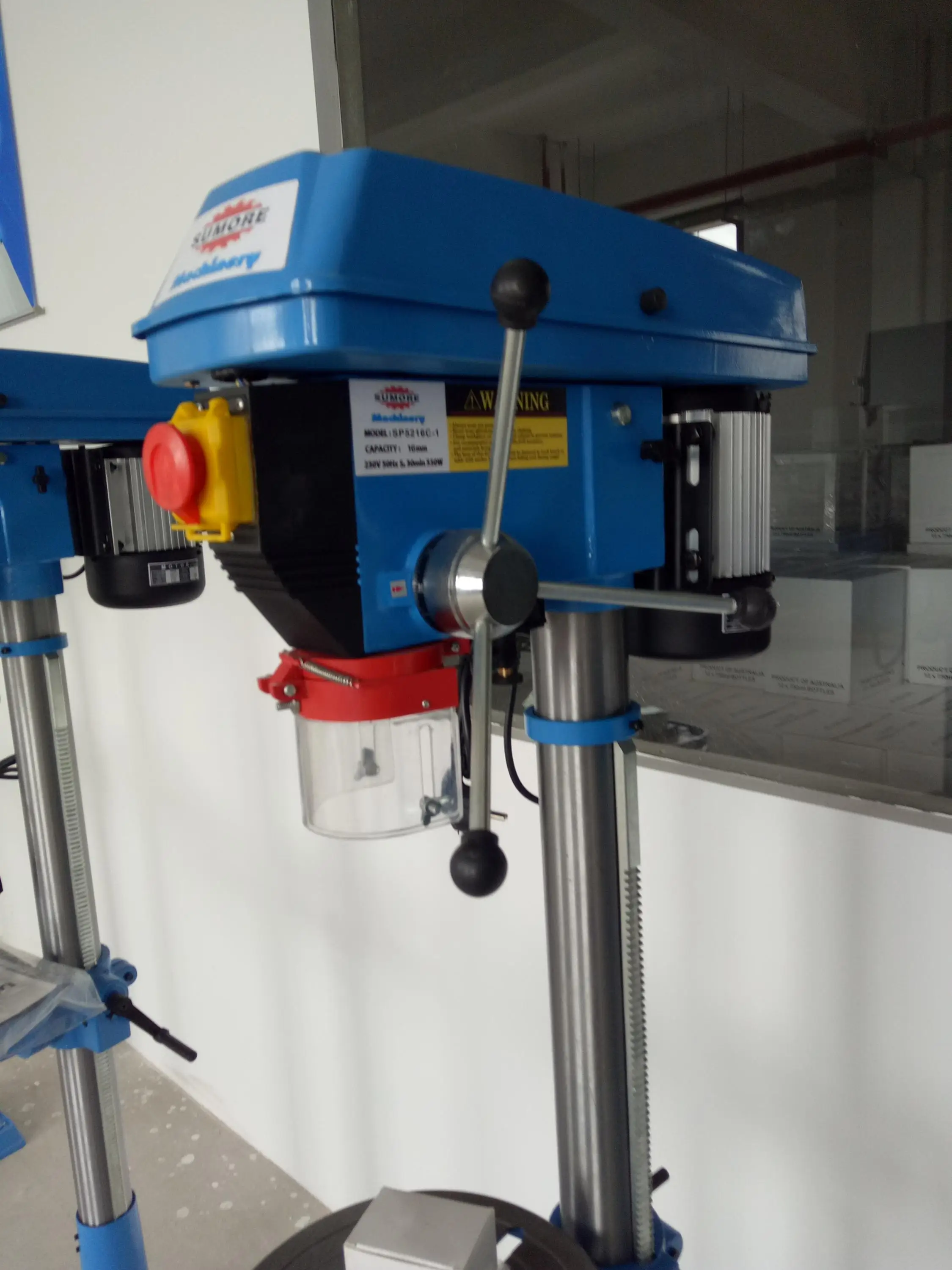

Sumore Drill Press increases the products range of Sumore Machinery. This type hobby drill

press is a compact and robust bench drill, extremely easy to operate and seldom goes wrong.

Superbly well robust construction enables it to handle all common metal-working duties drilling

classroom or workshop process. Clear components are also convenient to install or transport.

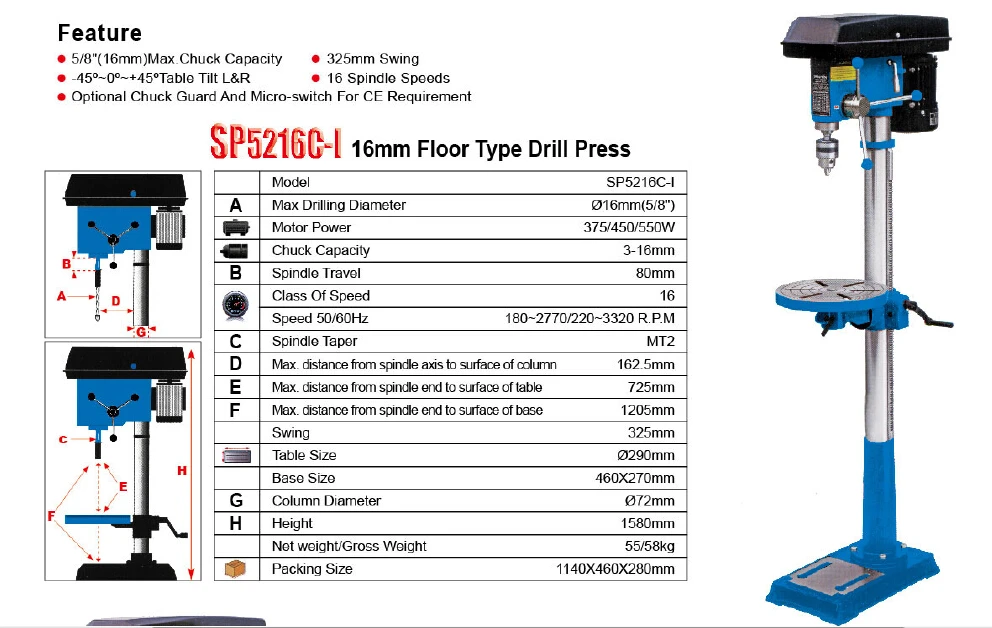

Technical Data

Model	SP5216C-I
Drilling Capacity	16 mm
Swing	360 mm
Spindle Taper	MT2
Spindle Travel	85 mm
Spindle Speed Step	16 Steps
Maximumn Distance from Spindle Axis to Surface of Column	180 mm
Maximumn Distance from Spindle End to Surface of Worktable	685 mm
Maximumn Distance from Spindle End to Surface of Base	1,175 mm
Column Diameter	72 mm
Height	1,580 mm
Worktable Size	290 x 290 mm
Base Size	460 x 272 mm
Motor Power	550 w
Net / Gross Wieght	60 / 63 kg
Packing Size	1,140 x 460 x 280 mm

Packaging & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 set
Full Container Loading Quantity (FCL)	200 sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
