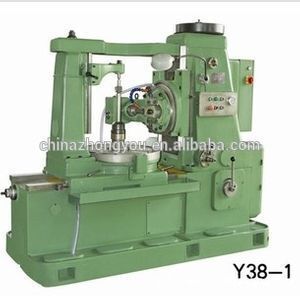

gear hobbing machine ,manual gear hobbing machine ,cheap price gear hobbing machineY38-1
| CNC or Not: | Normal; | Port: | qingdao /shanghai and so on; |
| Supply Ability: | 20 Set/Sets per Month; | After-sales Service Provided: | No overseas service provided; |
| Delivery Detail: | about 30 days upon receiving your deposit; | colour: | according to your requirement; |
| Power(W): | 3 kw; | Weight: | 3300 kg; |
| Certification: | QS; | Condition: | New; |
| Voltage: | 220/380/415; | Payment Terms: | L/C,T/T,Western Union; |
| Type: | Gear Hobbing Machine; | Dimension(L*W*H): | 2290*1100*1910 MM; |
| Packaging Detail: | wood case; | Model Number: | Y38-1; |
| Place of Origin: | China; |
Main technical parameters | Y38-1 | ||
Max working module | steel | 6 | |
Cast iron | 8 | ||
Max diameter of cutting cylindrical straight gear | with trestle (mm) | 450 | |
without trestle(mm) | 800 | ||
Max diameter of cutting Cylindrical helical gear
| Rotation angle 30° | 500mm | |
Rotation angle 60° | 190mm | ||
Max vertical travel of hob (mm) | 275 | ||
Max diameter of hob | 120 | ||
Distance from hob center to gear embryonic axis | Max(mm) | 500 | |
Min(mm) | With tool post,sliding plate ,shield and dowel | 55 | |
Without tool post,sliding plate ,shield and dowel | 30 | ||
Minimum distance from worktable surface to hob axis (mm) | 195 | ||
The changeable spindle diameter of of hob (mm) | 22 27 32 | ||
The travel length of hob axial movement(mm) | 30 | ||
The travel length of rear pillar movable trestle | 200 | ||
Diameter of workingtable hole (mm) | 80 | ||
Diameter of worktable axis(mm) | 35 | ||
Pitch diameter of indexing wormwheel (mm) | 546 | ||
Pitch diameter of indexing worm (mm) | 68 | ||
Speed of Hob main spindle | Grade | 7 | |
Range (r/min) | 47.5-192 r/min | ||
The workpiece vertical feed | 0.25-3 mm/r | ||
Main motor power | 3 kw | ||
Main motor speed | 1420 r/min | ||
Net weight | 3300 kg | ||
Size (L*W*H)(mm) | 2290*1100*1910 | ||
The main feature :
- It could machining the spur gear,helical tooth ,arc tooth .
- Basic guide surface:Hardening treatment
- Turbine material :Tin bronze (ZASN10-1)
