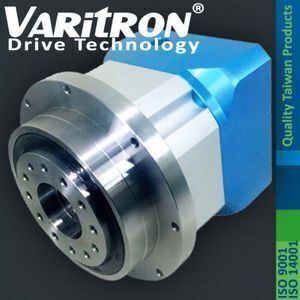

Varitron Planetary nema17 stepper motor gearbox

Supplier: VARITRON ENGINEERING (TAIWAN) CO., LTD.
Region: Taiwan, China
Contact: Ms Adeline Chiu
Price: $80.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Supply Ability:	500 Set/Sets per Week;
Gearbox type:	planetary gearbox;	Model Number:	Planetary Gearbox for stepper motor;
Gearbox Shaft Type:	Bore, solid shaft;	Place of Origin:	Taiwan, China;
Phase:	Gearbox planetary;	Step Angle(degrees):	0.03 or 3arcmin;
Certification:	CE,ISO,ROHS;	Gearbox Style:	Inline or Right angle;
Diameter:	042,060,070,080,090,120,150,220;	Packaging Detail:	Stepper Motor can be packed in Crate or Wooden boxes to ensure Highest protection and minimum damage;
Brand Name:	VARITRON;	Gearbox suitable for:	Stepper Motor, Servo Motor;
Enclosure:	IP55 or IP56;	Holding Torque:	gearbox torque depends raatio and motor;
Port:	Taipei Taiwan;	Quality Control System:	ISO 9001;
Type:	Gearbox planetary;	Current / Phase:	gearbox to meet customer requirement;
Precision:	minimum 3arcmin,;	Input motor frame sizes:	Nema17, Nema23 and others;

<< More Information is Available upon Request >>

Quality Gear box by Varitron from TAIWAN

Varitron Planetary nema17 stepper motor gearbox

Product Description

Main Features

-High Precision Gear
The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.

-High Torque and Stability

High tensile strength alloy steel and improved gear hardening technics employed to maintain high accuracy and long service life.

-High Efficiency

Exceeds 95% for single stage and 92% for Double Stage.

-Quiet Operation

Feature design to reduce vibration and noise to under 65dB.

-Single-piece Gear box & Advanced Surface Treatment
The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosion-resistant capability.

-Integrated Planetary Arm Bracket
The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.

-Modular Deisgn of Motor Connection Plate
The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.

-Modular Input Shaft
Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.

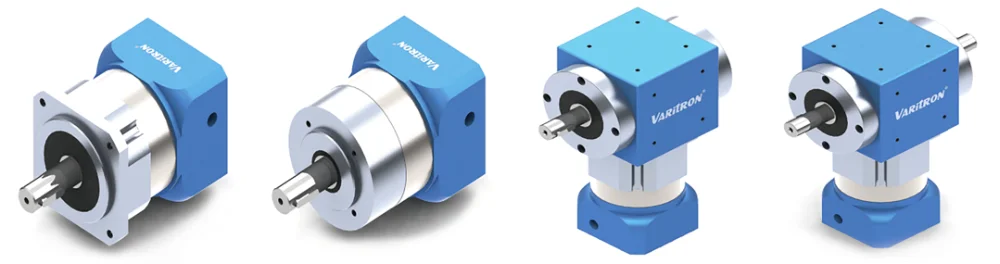

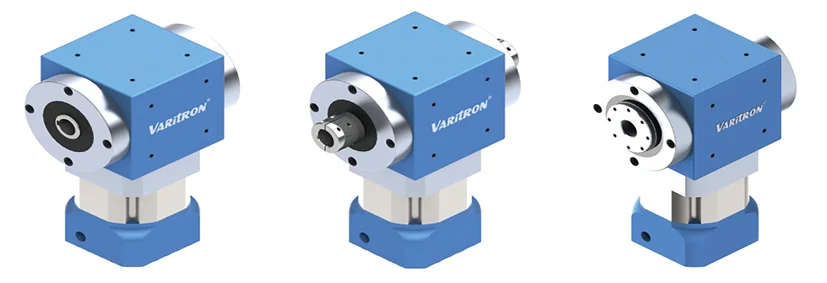

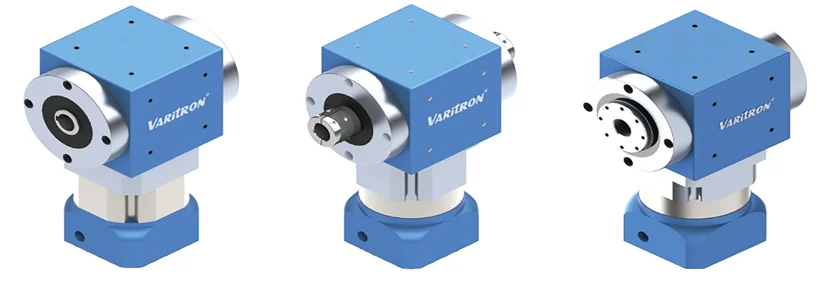

Model

-Precision


DM	DF	RAM-S	RAM-SS

RAM-H	RAM-D	RAM-F

-Standard


DH	DL	RAH-S	RAH-SS

RAH-H	RAH-D	RAH-F

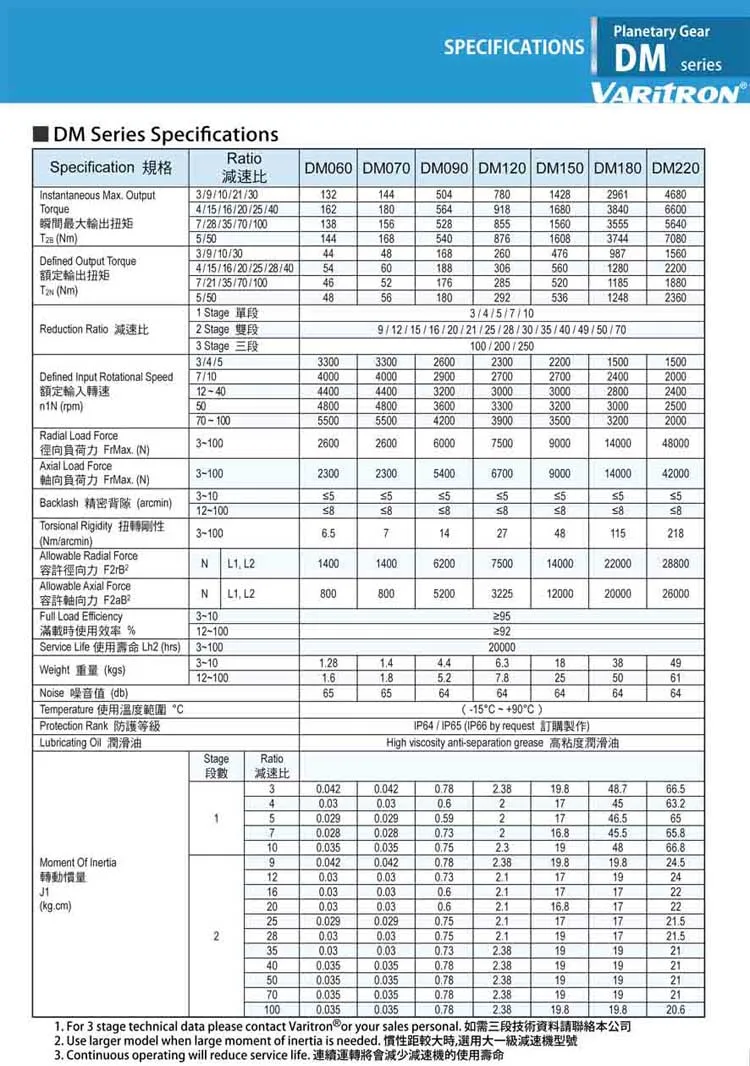

Quick Facts

Model Number	Varitron Planetary nema17 stepper motor gearbox
Speed Reduction Method	Planetary gear mechanism with designed tooth profile
Efficiency	95% per stage gearbox
Shock Load	300% as there are only compressive forces rather than shear forces on the tooth
Gear box Mounting	Flange Mounting, Foot mounting parts sold separately
Reduction Ratio	Up to 1:10 per stage 1:1000 on 3-stages
Capacity Range	100Watt to 11,000Watt
Enclosure	Totally enclosed IP55
Power Source	Servo motor, stepper motor
Backlash	DM series: below 5arcmin on single stage DH / DL series: below 10arcmin on single stage
Reduction Gearbox Lubrication Method	High viscosity anti-separation grease
Method of Coupling with Driven Machine	Coupling, gears, chain sprocket or belt
Standard	CE, UL, CSA, CCC, ISO 9001, ISO14001
Warranty	1 Year Limited Warranty
