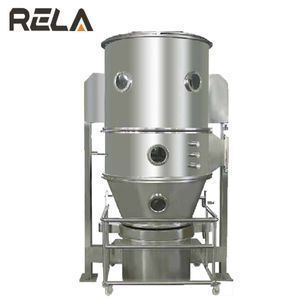

FL Model Fluid Bed Granulator Dryer

Product Application

RELA FL Fluid Bed Dryer Granulator is used to make granule from powder with binder, and to dry the granule at the same time. This machine can make dry granule from dry powder in one same chamber by one step. It is applicable for Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.

Working Principle

RELA FL Fluid Bed Dryer Granulator consists of Air Filter Unit, Heating Unit, Product Container, Spraying Chamber, Pocket Filter, Piping, Fan, etc.
The powder granule in container (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Main Features

1.Because of powder granulation, the fluidity is improved and the dust is reduced
2.Because of powder granulation, its solubility is improved.
3.The mixing, granulation and drying processes are completed in one step inside the machine.
4.The operation of equipment is safe because the anti static filtering cloth is adapted.
5.The operating personnel can not be damaged if explosion take place because there is releasing holes.
6.The equipment has no dead corner, Therefore the loading and unloading are quick and light and clean, It can meet the requirements of GMP.

Machine Parts

Name: Product Container & Trolley

Material: SS304 or SS316L

The container is tilted by rolling wheel.

Machine Part

Name: Heating Pipes
Material: SS304 or SS316L

This is electric heating unit.

Steam Heating is available as optional part.
