Hot air tray type dryer oven Food drying machine details
Price:Cost;Application:Medicine Processing,Chemicals Processing,Food Processing,Food Fruits Vegetables;
Payment Terms:L/C,T/T,Western Union;Material:Stainless Steel;
Type:Drying Equipment;Brand Name:RELA;
Packaging Detail:Plastic Film & Plywood Case.;Function:High Efficiency Drying;
Heating source:Electricity;After-sales Service Provided:Field maintenance and repair service;
Warranty:1 Year;Package Preview:;
Dimension(L*W*H):Depends;Certification:ISO,CE;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,industry;Port:Shanghai port;
Key Selling Points:High Productivity;Supply Ability:10 Set/Sets per Month;
Place of Origin:Jiangsu,China;Package:Wooden Case;
Condition:New;Voltage:220/380/415/600V, 3P, 50/60HZ;
Advantage:Low Consumption High Efficiency;MOQ:1 Set;
Weight:weight;Power:0.45;
Key word:food drying machine;Keywords:tray dryer;
Product Description

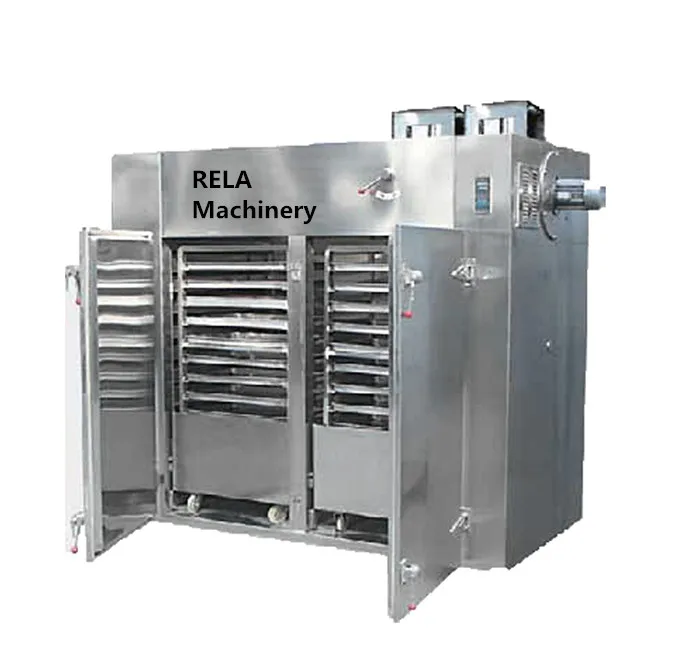

 Hot air tray type dryer oven Food drying machine

Application

RELA RXH Tray Dryer Oven is a static dryer with hot-air recycle. It is suitable to dry kinds of material (powder, granule, slice, bottle, etc.) in Pharmaceutical Industry, Foodstuff Industry, Spice Industry, Chemical Industry, etc.

Working Principle



RXH Tray Dryer is equipped with axial flow blower fan, which is low-noise and high temperature resistant. The drying temperature is controlled automatically. After the material being dried is loaded into the trays, start the electric heating or get through steam. Under the blowing of blower fan, the hot air recycles in the oven. As the recycle system is enclosed, the drying efficiency increases to 35%-45% from traditional 3-7%. So it can save much energy.

Technical Parameters

Model

RXH-7-C

RXH-14-C

RXH-27-C

RXH-41-C

RXH-54-C

Capacity (kg/batch)

50

100

200

300

400

Fan Motor (kw)

0.45

0.45

0.9

1.35

1.8

Steam consumption (kg/h)

10

18

36

54

72

Heat radiating area (m2)

10

20

40

80

100

Air flow (m3/h)

3400

3450

6900

10350

13800

Temperature difference

±2

±2

±2

±2

±2

Trolley No.

1

2

4

6

8

Tray No.

24

48

96

144

196

Main Features

1.Heat Source: electricity or steam, or both.

2.Commonly Drying Temperature: steam-50-130°; electricity-50-300°.

3.Commonly steam pressure: 0.2-0.8 Mpa.

4.The standard size of tray is 480x640x45mm

5.Contact part in SS304 or SS316L
6.Temperature is detected by a sensor PT-100 and controlled automatically.
7.PLC & HMI is available; simple printer is available.



Detailed Images



Company Information


WUXI RELA PHARMA MACHINERY CO.,LTD,with more than 10 years experience,is focused on the powder solution,from the unit machine to the production line.Our main products are Pulverizer,Mixing Machine,Conveying Machine,Sifting Machine,Granulator,Dryer,etc.,which are application to pharmaceutical,foodstuff,food additives,chemical raw material,baking ingredients,etc.



'RELA' Machinery:

Refine Quality &Service:as quality and service is the basis of a company we are striving to improve our product quality and provide better service to our customers.

Efficiency makes benefit.

Learning and innovation is the way of success.

Attitude decides everything.

Certifications



Our Services



Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship

Packaging & Shipping



Packaging Details

-Pre-pack by Plastic Film
-Plywood Case
If the machine is too big to be packed, we will pack the naked machine into container directly and fasten them.
