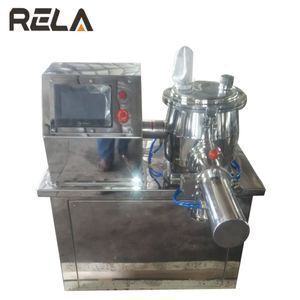

1L, 3L, 5L Lab High Speed Shear Mixer for Sale

Supplier: Wuxi Rela Pharma Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Refine Lee
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	RELA;	Certification:	CE ISO;
Model Number:	RMG-1,3,5;	Weight:	depends on the model;
Payment Terms:	L/C,T/T,Western Union;	Supply Ability:	10 Set/Sets per Month 1L, 3L, 5L Lab High Speed Shear Mixer for Sale;
Usage:	making granule;	Dimension(LWH):	depends on the model;
Port:	Shanghai;	Condition:	New;
Product Type:	food, pharmaceutical,chemical;	Delivery Detail:	30 days after the down payment;
Warranty:	12 Months;	Power(W):	2.2+0.75KW;
Machine Type:	Granulator;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	1L, 3L, 5L Lab High Speed Shear Mixer for Sale is packed by Plastic Film & Plywood Case.;	Name:	1L, 3L, 5L Lab High Speed Shear Mixer for Sale;
Material:	SUS304/316L;	Raw material:	food, pharmaceutical powder;
Voltage:	220/380/415/600V, 3P, 50/60HZ;	Place of Origin:	Jiangsu China;
Capacity:	0.5-2kg/h;	Type:	Granulate Making Equipments;
Application:	Pharmaceutical;

Product Description

Product Application

1L, 3L, 5L Lab High Speed Shear Mixer for Sale is the process of mixing dry material, or making granule from wet material.

Working Principle

The dry powders are fed into the bowl from top, and mixed together by propellers. Then the binder (water or other liquid, adhesive, etc.) is injected into the bowl from the port on cover. The dry powder and binder are mixed and become wet lump. Meanwhile, a chopper at side wall rotates fast to chop and cut the wet lump into small uniform granule. So it can be used as Super Mixer for dry powders, or as Rapid Mixer Granulator to make wet granule from dry powder, in Pharmaceutical Industry, Foodstuff Industry, Chemical Industry, etc.

Technical Parameter

Model	Volume (L)	Capacity (kg/batch)	Propeller speed (rpm)	Propeller motor (kw)	Chopper speed (rpm)	Chopper motor (kw)	Working time (min)	Granule size (mesh)
RMG-10	10	3	300/600	1.5/2.2	1440/2900	1.3/1.8	8-15	20-80
RMG-50	50	15	200/400	4/5.5		1.5/2.2
RMG-150	150	50	180/270	9/11		2.4/3
RMG-200	200	80	180/270	11/14		2/4/3
RMG-250	250	100	180/270	11/14		3.3/4
RMG-300	300	130	140/220	11/14		4.5/5.5
RMG-400	400	200	106/155	15/17		6.5/8
RMG-600	600	280	0-120	22		11
RMG-800	800	400	0-100	45		11
RMG-1000	1000	500	0-100	75		15

Working Video

1. RMG-10 Video: https://youtu.be/d0pwc_jLYa0

Detailed Images

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Introduce the product to the customer in detail, answer the question raised by customer carefully.
* Make plans for choice according to the needs and special requirements from customer.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Provide technical support
* Provide spare parts with cost price.
* Establish long-term and friendly relationship.

Packing & Delivery

Packaging
Size	Depends on the model
Weight	Depends on the model
Packaging Details	-Pre-pack by Plastic Film -Plywood Case If the machine is too big to be packed, we will pack the naked machine into container directly and fasten them.
