Battery Electrode Slurry Automatic Coating Machine For Battery Production Line

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CE;
Minimum gap:	5mm;	After-sales Service Provided:	Online support;
Maximum coating speed:	15m/min;	Power(W):	120Kw/160Kw;
Supply Ability:	10000 Set/Sets per Month;	Color:	Request;
Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;	Port:	Xiamen Port;
Substrate:	Metal;	Place of Origin:	Fujian China (Mainland);
Machine speed:	0~18m/min;	Brand Name:	Tmax;
Type:	Hydraulic Stretchers;	Voltage:	100V-230V;
Weight:	25mx2.5mx2.7m;	Type:	Coating Production Line;
Dimension(LWH):	25mx2.5mx2.7m;	Coating:	Powder Coating;
Condition:	New;	Name:	battery coating machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Warranty:	2 YEARS;
Single thickness accuracy:	±1.5um;	Coating width:	500mm / 650mm;

Product Description

Battery Electrode Slurry Automatic Coating Machine For Battery Production Line

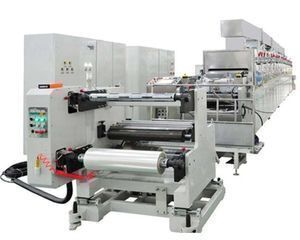

TMAX600 / TMAX750 is a CE Certified and UL inspection ready automatic and faster roll to roll coatingsystem for battery electrode with 15m/minute max coating speed . It is perfect for prototypes of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience. For Roll to Roll Coater Service, please fill in the Roll to Roll Request Form.

Technical Parameter

Type Item	TMAX600	TMAX750
Coating width	Max:500mm	Max:650mm
Maximum coating speed	15m/min	15m/min
Machine speed	0~18m/min	0~18m/min
Single thickness accuracy	±1.5µm	±1.5µm
The areal density the error	≤ ±1.5%	≤ ±1.5%
Minimum gap	5mm Related to the characteristics of the coating speed	5mm Related to the characteristics of the coating speed
Positive and negative coated overlay error	±0.5mm	±0.5mm
10mm thickness error within the coater head and tail	-10µm~ +5µm(single surface)	-10µm~ +5µm(single surface)
Length error	±0.5mm	±0.5mm
Orderly winding error	±0.5mm	±0.5mm
Retractable roll diameter	Max:φ550mm	Max:φ550mm
Retractable roller diameter	2µm/m	2µm/m
Coater roller straightness	φ160mm Circular Run ≤ 1.5µm	φ160mm Circular Run ≤ 1.5µm
Air pressure	Over 0.5Mpa	Over 0.5Mpa
Power	120Kw/160Kw	120Kw/160Kw
Machine Dimensions(LxWxH)	25mx2.5mx2.7m (drying box 18m) 31mx2.5mx2.7m (drying box 24m)	25mx2.5mx2.8m(drying box 18m) 31mx3.5mx3.6m(drying box 24m)

Product

Our Company & Team

Certifications

CERTIFICATE

Strength Proof

All our products are passed the inspection standards included SGS, CE, ASTM with 100% quality.

Cooperative Partner

Packaging & Shipping

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to production season and order quantity.

FAQ

About Product

1. Which procedure to secure your Quality?

Our company has own research & development and production base, the products have been calibrated by central laboratory professionals before they leave the factory, ensure the accuracy of test results and authority.

2.How about your company product after-sales service system?

Product after-sale guarantee period is 12 months, and we can provide a lifetime repair guarantee. We have agents in some countries, they can provide door-to-door service. If there is no agent, our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.

3.Products standards?

Our instruments adopt ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.

4. Our country's power supply and plug are different, how do you solve it?

We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.

5.Payment methods?

T/T, L/C, D/P and so on

6.Packing method?

Standard export wooden box packaging

7.How about customers evaluation for your products?

Our company has established long-term cooperation with the SGS, Bureau Veritas, TUV and Intertek, our high-quality products and first-class after-sales service. Our services get the trust of the customer satisfaction and recognition for themselves.

8.Main export market?

Now our products have been exported to North America, Europe, Southeast Asia, South America and other countries.

10. How to ensure the customer standard use the instrument?

We can provide each product-related video showing how to install and operate. If you have specific needs, we also can arrange the engineer to the customer's company for equipment operation training.

About Shipping

1.Order processing?

Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or weekends.)
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damaged part for you for free.
3.Order tracking?
An online order can be tracked by login to your account. Please allow 24 hours after order is shipped to see logging details.
If you need a tracking number for your order, please send an email to us with your order/invoice number.
4. Import/export tax, duty, GSM, Customs Clearance, and etc?
All import/export related expenses are the sole responsibility of the buyer; charges will vary from country to country. Please consult with your local import experts or transportation carrier for more details.
5.Lost or Stolen packages?
Please report all lost or stolen packages to us at the earliest possible time. An investigation will be open soon after reporting the incident to us, and a final ruling will be issued by the carrier for the claim after 10-15 business days. A replacement package will be sent as soon as the claim is accepted by the responsible carrier.
