High Efficiency Compact Structure Continuous OSLO type Crystallizer

Supplier: Zhejiang Tecellent Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Shreya Chung
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE, ISO;	Supply Ability:	10 Set/Sets per Month;
Discharge:	Salt Slurry;	Fabricating material:	Stainless steel, Customized;
Brand Name:	TECellent;	Power(W):	customized;
Packaging Detail:	1 All the components are wrapped by cotton leather; 2 Electric control cabinet, pumps and other electrical elements packed by wooden case; 3 All the components are fixed to the container.;	Application:	Fine Chemical Industry;
Delivery Detail:	within 40 working days;	Place of Origin:	Zhejiang China;
Model Number:	TECOSLO;	Dimension(LWH):	customized;
Port:	Ningbo;	Weight:	customized;
Capacity:	1000kg/h-10000kg/h;	Condition:	New;
Warranty:	1 Year Warranty;	Voltage:	380V, customized;
Product name:	Continuous OSLO type Crystallizer;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After-sales Service Provided:	Engineers available to service machinery overseas;

Product Description

Continuous OSLO Type Crystallizer

OSLO type crystallizer, is also know as fluid-bed type or cystals growing type. The fluid-bed area is available for crystals growing, the crystals produced is larger than Forced Circulation type and DTB type.

OSLO type crystallizer is consisted of a heater, a condenser, a evaporative crystallizer, an axial flow pump and circulation pipelines. And the evaporative crystallizer is devided into central circulation tube (fluid-bed layer), evaporating zone and crytal growing zone.

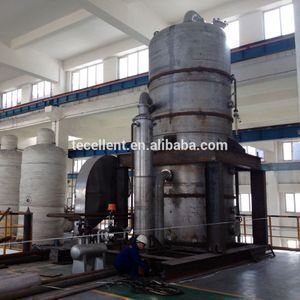

Detailed Images
