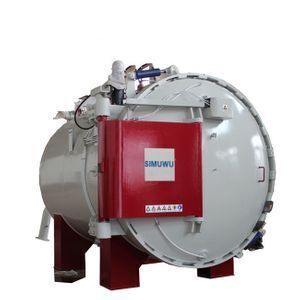

Vacuum Dehydroxylation Reaction heat treatment Furnace For Quartz Material

Supplier: Shanghai Gehang Vacuum Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Hang Ge
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SIMUWU;	Dimension(LWH):	different capacity;
Rated temperature:	customized;	Service:	Overseas market available;
Capacity:	customized;	Supply Ability:	4 Set/Sets per Month vacuum heat treating furnace;
Warranty time:	one year;	Voltage:	380-440V adjustable;
Certification:	CE / ISO9001;	Weight:	5-50T;
Chamber material:	Carbon or stainless;	Usage:	Heat Treatment Furnace;
Port:	Shanghai;	After-sales Service:	Engineers available to service machinery overseas;
Power(W):	100-950kw;	Furnace type:	quartz Dehydroxylation;
Application:	quartz material;	Structure:	double layer water cooling;
Warranty:	1 Year;	Place of Origin:	Shanghai China;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Condition:	New;
Type:	Resistance Furnace;	Packaging Detail:	Safety bulk lashing for over weight/volume part,normal part use container.;
Vacuum System:	EVP vacuum pumps;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Vacuum Dehydroxylation Reaction heat treatment Furnace For Quartz Material

Product Description

It is applied for dehydrogenation of quartz material to increase its performance and service life.It is widely used in quartz tube and lamps and lanterns industry.It featyres high vacuum,high pumping capacity,energy saving and operational reliability.It can relatively thoroughly remove hydroxyl in the materials.

Main technical data of Vacuum dehydroxy furnace
Models	Effective working dimension mm	Max temperature (C)	Ultimate pressure (pa)	Pressure rising rate (pa/h)	Temperature uniformity (C)
RVD-7712	700x700x1200	1300	8.5x10^-4	0.5	±5
RVD-8814	800x800x1400	1300	8.5x10^-4	0.5	±5
RVD-9915	900x900x1500	1300	8.5x10^-4	0.5	±5
