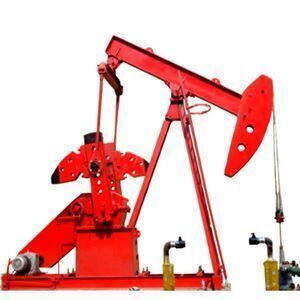

API 11E Standard Conventional Beam Pumping Unit

Supplier: Yantai Sanmon Machinery Equipments Co., Ltd.
Region: Shandong, China
Contact: Ms Candice TIAN
Price: $10000.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Dimension(LWH):	223.2386.61168.43;	Voltage:	High Pressue;
Product name:	pumping unit C-80-133-54;	Structure Capacity:	133((100lbs);
Reducer Rating:	80(1000in-lbs);	Condition:	New;
Weight:	3-35 Tons;	Packaging Detail:	seawothy package ,open top container;
Applicable Industries:	Energy & Mining;	Max.Stroke Length:	54m;
Model Number:	C-80-133-54;	After-sales Service Provided:	Online support,Video technical support;
After-sales Service Provided:	Overseas service center available;	Unit Weight:	8.7t;
Port:	Tianjin port or Qingdao port;	Power:	Electric;
Certification:	API 11E;	Warranty:	1 Year;
Supply Ability:	100 Piece/Pieces per Month pumping unit;	Features:	Conventional Walking-beam;
standard:	API 11E;	Production Capacity:	100%;
Model Number:	C-80-133-54;	Place of Origin:	Shandong China;
condition:	New;	Brand Name:	Sanmon;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;

Product Description

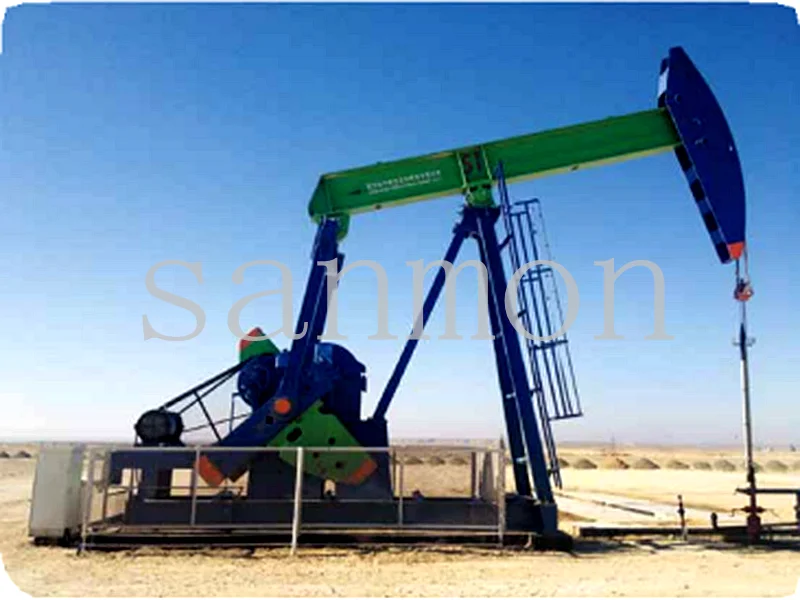

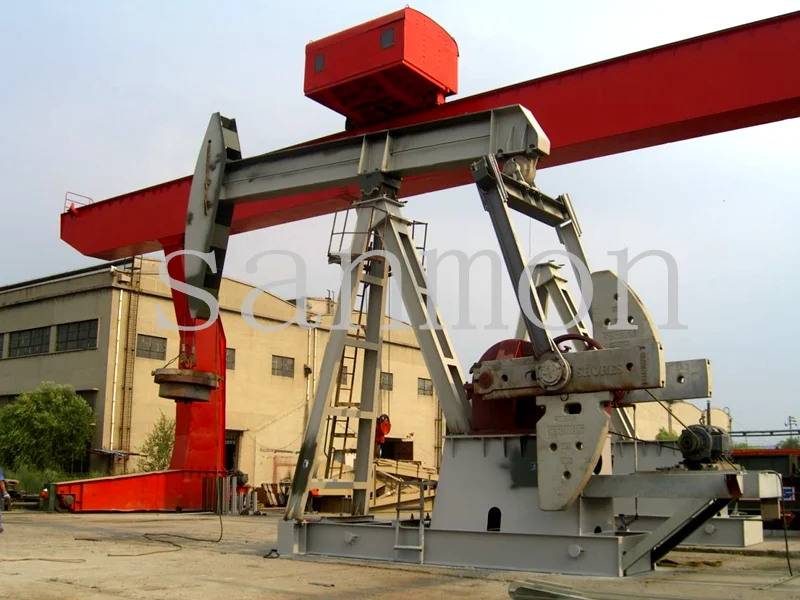

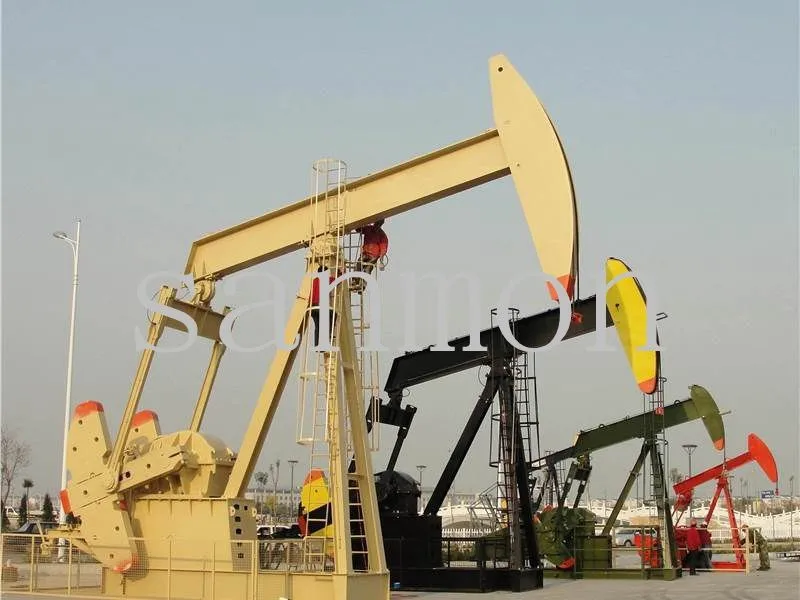

API series conventional pumping units are a kind of conventional beam pumping units with crank balance. They are the most common and most widely used ground power equipment.

API series conventional beam pumping units advantages:

1."H" section steel structure, high strength and nice load bearing capacity.

2.Middle width roller center bearing, strong endurance. Self-aligning bearings are adopted in equalizer beam bearing and crank pin bearing, reducing installation errors and the vibration when pumping unit is operating.

3.Rack gear is adopted to adjust the crank counterweight, which is very precise and convenient. 4.Hanging structure of the horsehead is"self-abdicating"mechanism , facilitating wellhead operations.

5.Gear reducer adopts herringbone involute or double circular toothed gear, high precision, nice load bearing capacity, and long service life.

Model	Rated polished rod load (lbs)	Stroke length (in)	Rated torque of reducer (in.lbs)
C-912D-470-240	47,000	240, 211, 181	912,000
C-912D-427-216	42,700	216, 185, 155	912,000
C-912D-427-192	42,700	192, 165, 138	912,000
C-912D-305-192	30,500	192, 165, 138	912,000
C-912D-365-168	36,500	168, 144, 121	912,000
C-912D-305-168	30,500	168, 144, 121	912,000
C-912D-427-144	42,700	144, 123, 102	912,000
C-640D-305-192	30,500	192, 165, 138	640,000
C-640D-305-168	30,500	168, 144, 121	640,000
C-640D-365-144	36,500	144, 123, 102	640,000
C-640D-305-144	30,500	144, 123, 102	640,000
C-640D-256-144	25,600	144, 123, 102	640,000
C-640D-305-120	30,500	120, 102, 84	640,000
C-456D-305-168	30,500	168, 144, 121	456,000
C-456D-305-144	30,500	144, 123, 102	456,000
C-456D-256-144	25,600	144, 123, 102	456,000
C-456D-365-120	36,500	120, 102, 84	456,000

Our Company

SANMON is a leading supplier of pump unit, subsurface pumps, sucker rods, tubes, casing, wellhead and related products for the world's oil & gas industry, and certain other industrial applications.
