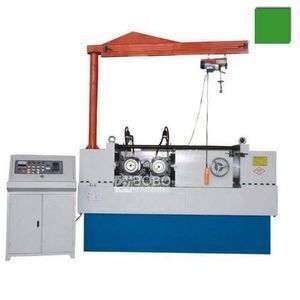

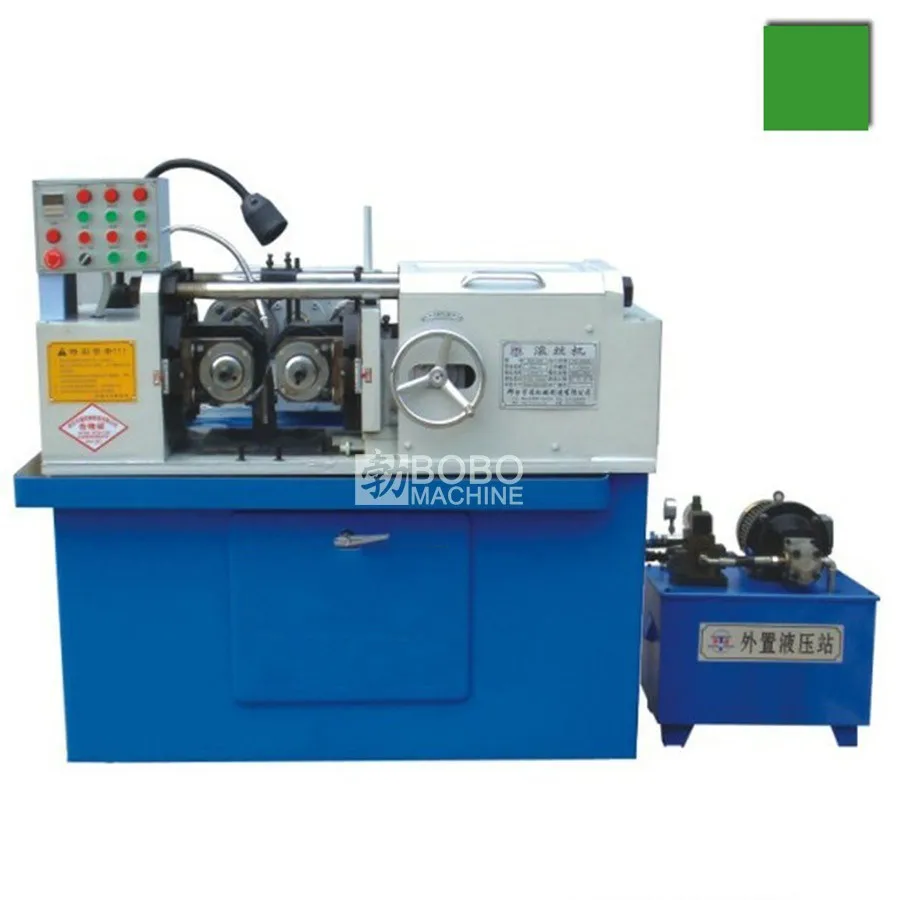

Hydraulic automatic thread roller making machine with best price in china

Supplier: Bobo Machine Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sotu Zhu
Price: $28000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Power(W):	22kw;
Color:	customized;	Thread pitch:	standard and non-standard;
Port:	Hydraulic automatic thread rolling machine with best price will be delivered from Shanghai;	Cooling power:	125w;
Voltage:	CUSTOMIZED;	Certification:	ISO, CE;
Application:	THREAD ROLLING;	Purpse:	thread rolling machine;
Condition:	New;	Max roll diameter:	120mm;
Place of Origin:	Jiangsu China;	Dimension(LWH):	230025402700mm;
Brand Name:	BOBO;	Packaging Detail:	Hydraulic automatic thread rolling machine with best price is packaged within wooden case.;
Item:	Hydraulic automatic thread rolling machine with best price;	Production Capacity:	1m/min;
Weight:	6100kg;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Hydraulic automatic thread rolling machine with best price;
Supply Ability:	10 Set/Sets per Quarter Hydraulic automatic thread rolling machine with best price;	Hydraulic power:	17.5kw;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Rolling length:	unlimited;
Roller:	customized;	Active power:	22kw;

Product Description

Product Application

Hydraulic automatic thread rolling machine with best price Hydraulic automatic thread rolling machine is mainly used for radial cold roll forming, cold rolling process is an advanced non-chip processing technology, the process uses rolling tool extrusion, rolling metal fibers are continuous, rolling generated when pressure should be able to effectively improve the surface roughness, hardness and strength of the workpiece, improve work efficiency than cutting times, even a few times, it can save the material easier to automate processing..

Detailed Parameter

MODEL	ITEM	PARAMETER
1	MODEL	BO-650
2	PRESSURE	650KN
3	RANGE OF PROCESSING DIAMETER	20-120 mm
4	SCREW PITCH	2.5-12mm
5	ACTIVE POWER	22kw
6	HYDRAULIC TRANSMISSION POWER	7.5kw
7	DIMENSION	230025402700mm
8	WEIGHT	6100kg

Detailed Images

Machine Parts

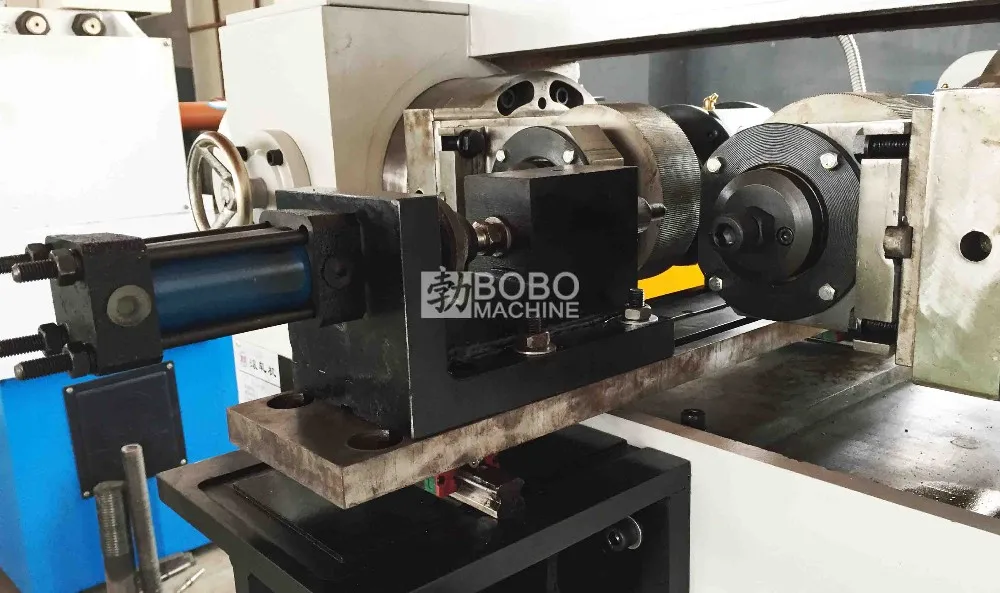

Name: Holder
Round bar mechanism mainly are:

round rod holder, round bar housing, round rod holder can be adjusted within the range of ±3°-±10°

Machine Parts

Name: Bearing block
Bearing block mounted on the bearing seat above the top of welded carbide, loosen the bearing block and tight the screw, at the bottom of the supporting block shims to adjust the level of support block, then tight the screw.

Machine Parts

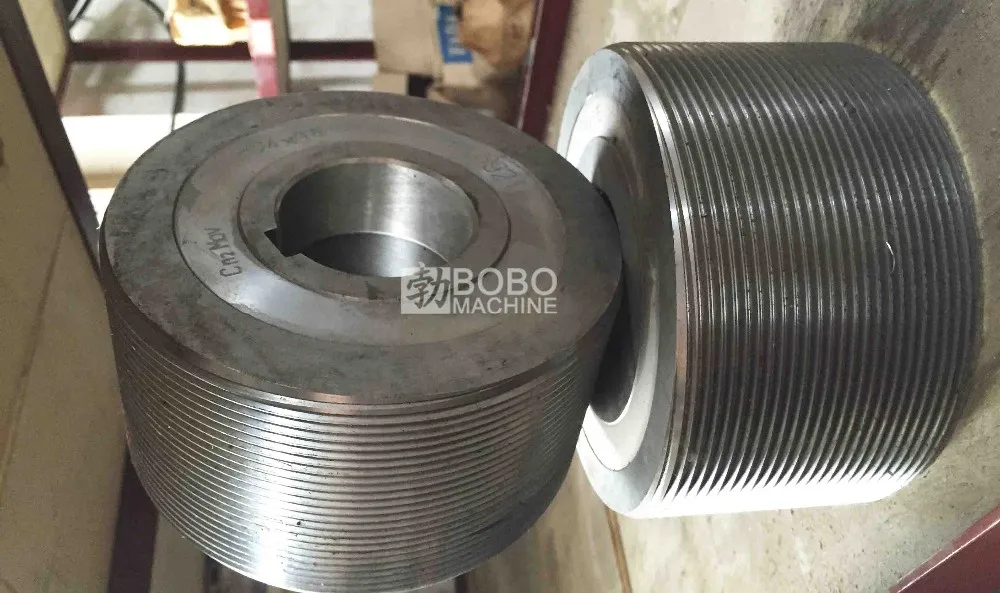

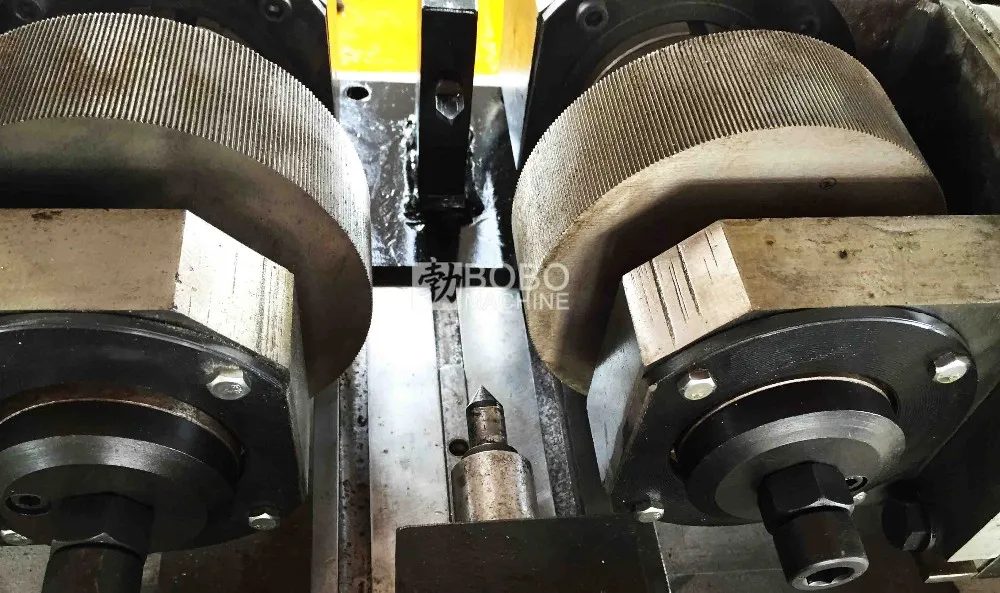

Name: Thread rollers
Workpiece material: ≤ HRC37
Elongation: ≥ 10%
Tensile strength: ≤100Kgf/mm

Machine Parts

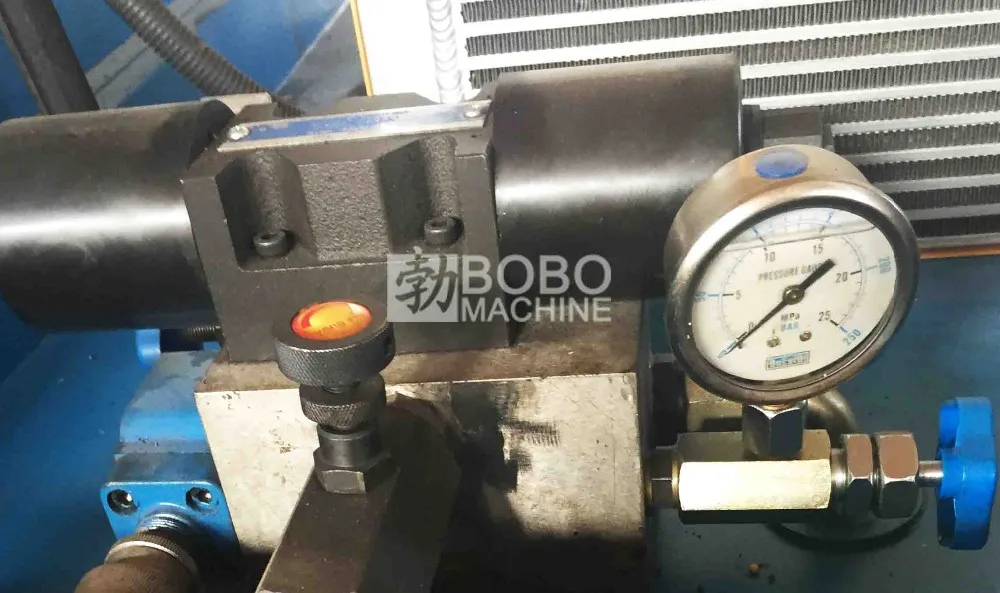

Name: Relief valve
Adjust the relief valve handle to adjust pressure and adjust the throttle valve to adjust sliding seat feed speed ( to the machine nameplate marked reorientation), in order to prevent hydraulic shock pressure gauge, after adjusting the size of the pressure switch must turn off the switch.

Main Products

Packing & Delivery

Packaging
Size	230025402700mm
Weight	6100KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
