CNC alloy wheel repair& turning rim refurbishment lathe AWR2840-PC

Supplier: Taian Hiscience Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Lee
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	AWR2840-PC;	Place of Origin:	Shandong China;
Color:	Customized Option;	Packaging Detail:	Free fumigation wooden cases or fumigation wooden cases;
Certification:	CE Certificate;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
After-sales Service Provided:	Online support,Video technical support,No after-sales service,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Name:	Alloy Wheel Repair;
CNC or Not:	CNC;	Port:	Qingdao tianjin shanghai liyungang ,etc;
Machine Type:	Flat Bed wheel repair machine;	Power(W):	7.5kw;
Type:	Horizontal;	controller:	pc touch screen control;
Voltage:	380V;	Warranty:	1 Year;
Max. Swing Diameter:	720mm;	Brand Name:	HIENCE;
After-sales Service Provided:	Overseas service center available;	Precision:	High Precision;
Warranty:	1 Year;	Weight:	2100kg;
Condition:	New;	Dimension(LWH):	220015201840;
Supply Ability:	100 Set/Sets per Month;	Automatic Grade:	Automatic;

Product Description

Product Application

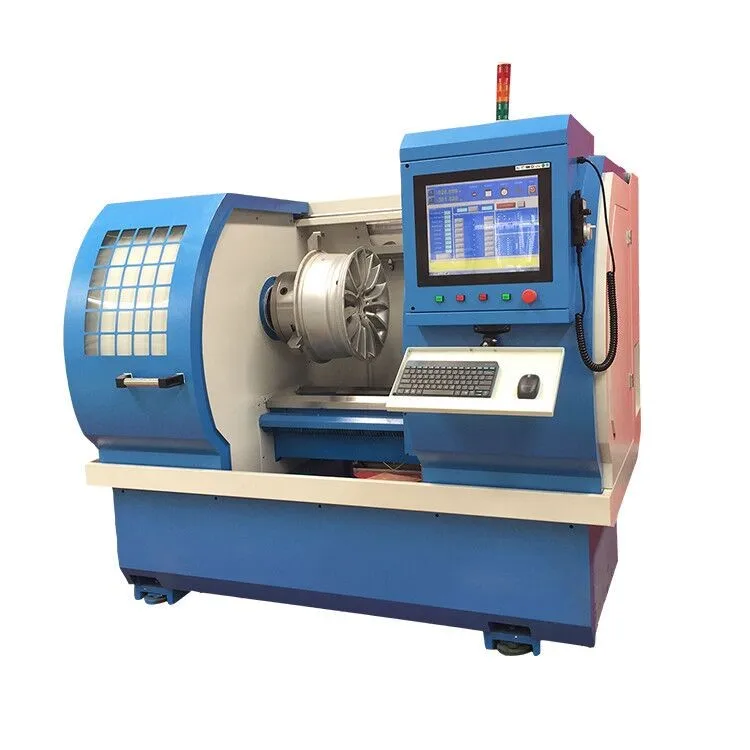

Our company has developed newest PC controller type wheel repair lathe to repair damaged wheel face. The machine use 17'' touch industrial PC, so the machine get rid of complicated operation and many useless CNC controller button. And all steps will finished on PC.

ITEMS	AWR2840PC
Max. swig over bed (mm)	Φ720(28 inch)
Max. swig over cross slide (mm)	Φ540
Max. Size of alloy wheel	27'
Cross slide travel (mm)	350
Width of the rail	330
Length of the rail	1320
Size of the three-jaw chuck	12'
Range of spindle speed (RPM)	50~2000
Spindle speed control	Automatic
Spindle bore (mm)	Φ60
Taper of spindle bore	MT6
Taper of spindle nose	A2-6
Max. size of tool post	25×25mm
Stations of tool carrier	4 station
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8m/min,(X) cross 4m/min
Motor power	7.5KW
Mchine base	Whole cast iron base
Machine size(L×W×H) (mm³)	2300×1750×1950
Net weight	2200kgs

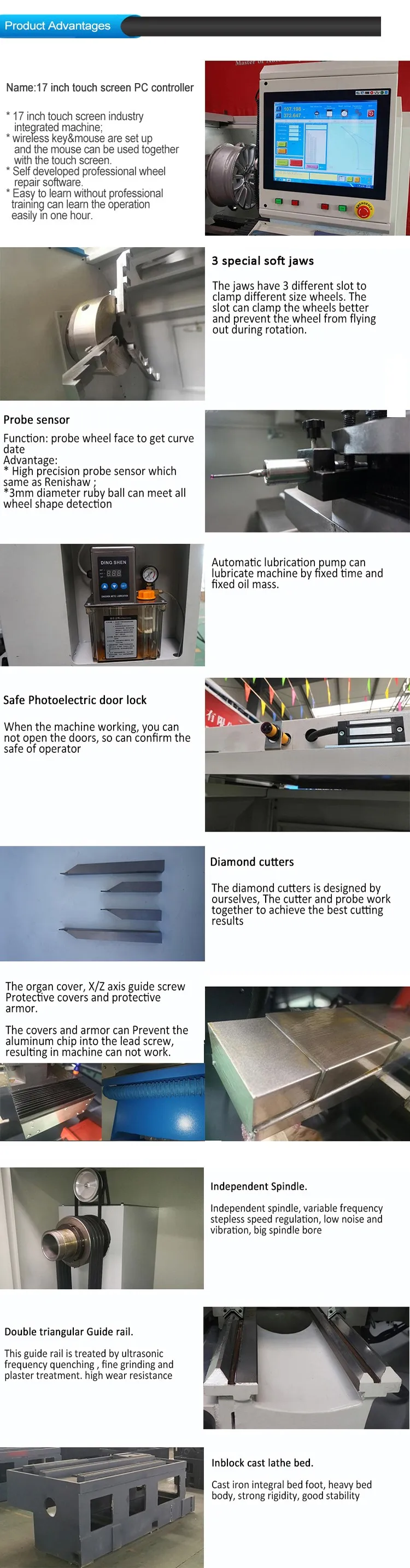

Main Features

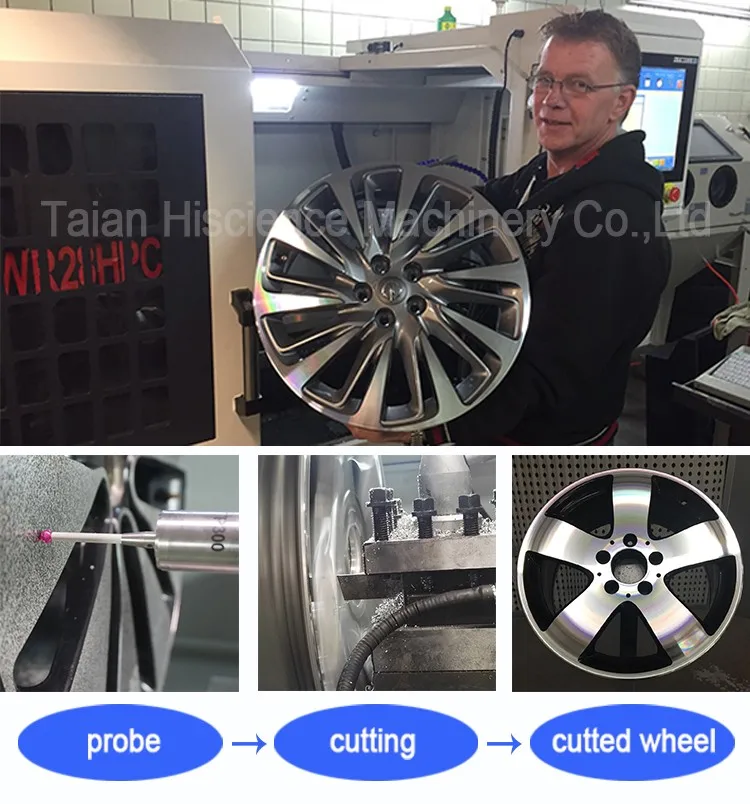

1.Our machine can probe and cutting alloy wheels automatic.
2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.

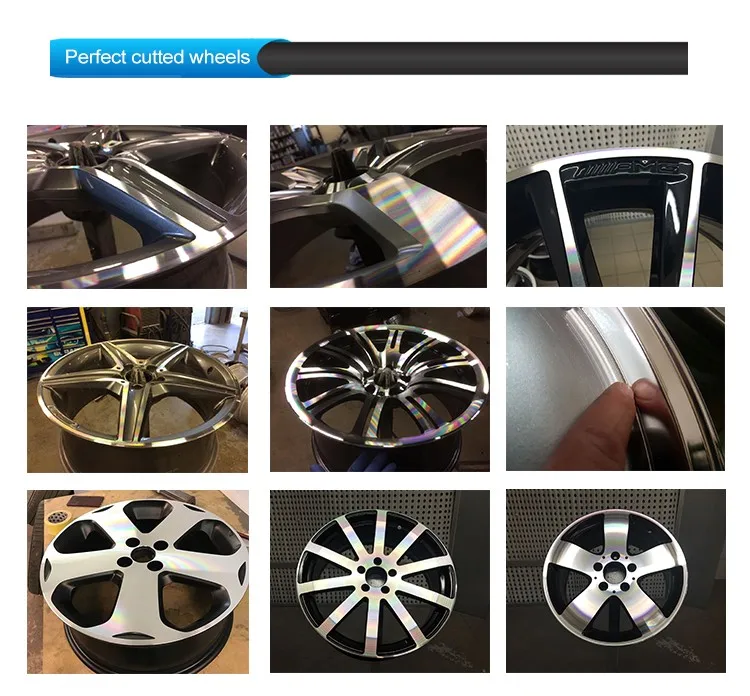

3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.
4.Can save program for next save models wheels, so no need to probe again for same model wheels. Can save time and money.
5.We offer detailed training video and manual with machine, you can learn the machine by yourself.
