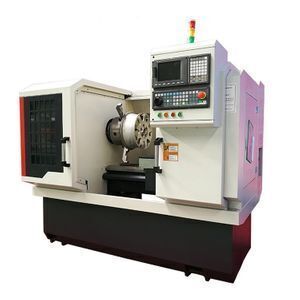

China diamond cut wheel polishing equipment rim repair tools cnc lathe machine AWR28H(6TA)

Supplier: Taian Hiscience Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Lee
Price: $13000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Automatic;	Brand Name:	HIENCE;
Weight:	2200kg;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Condition:	New;	probe:	famous brand touch ruby probe;
Voltage:	380V;	Product type:	Aluminium Wheel Repair Machine;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	50 Set/Sets per Month;
Dimension(LWH):	2300 17502100;	Place of Origin:	Shandong China (Mainland);
Type:	Horizontal;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Warranty:	1 Year;	cutter:	diamond cutter tips;
Spindle bore:	82mm;	Spindle speed:	50-2000rpm;
Control system:	SYNTECTaiwan's SIEMENS GSK FANUC (optional);	Max. Swing Diameter:	770mm;
Model Number:	AWR28H(6TA);	CNC or Not:	CNC;
Precision:	High Precision Machine;	Power(W):	7.5kw;
Packaging Detail:	standard export package wooden case;	Port:	Shanghai Qingdao Ningbo Tianjin;
Certification:	CE ISO;

In order to meet the request for alloy wheel end-face repair, our company developed the lathe with special function for alloy wheel repairing. Detect the surface curve of alloy wheel and generate the machining program automatically, and using the diamond cutter to repair the wheel end-face. After probe, the program will be automatically generated, it is very easy to operation, and the operator do not have to know everything on programming.

ITEMS		AWR28H
Max. swig over bed (mm)(inch)		Φ770 (30’)
Max. Size of alloy wheel (inch)		Φ720 (28’)
Adjustable stroke of carrier in X direction		100mm
Cross slide travel (mm)		390
Width of the rail (mm)		300
Length of the rail (mm)		1300
Size of the three-jaw chuck (inch)		12’
Range of spindle speed (RPM)		50~2000
Spindle speed control		Automatic
Spindle bore (mm)		Φ82
Taper of spindle bore		1:20(Φ90)
Max. size of tool post		25×25mm
Stations of tool carrier		4 position
Min. setting unit of motor		(Z) long0.001mm, (X) cross0.001mm
Moving speed of post		(Z) long 8m/min, (X) cross 6m/min
Motor power		7.5KW
Mchine base(cast iron base)		Whole
Machine size	(L×W×H) (mm³)	2140 ×1600×1860
Package size		2300×1750×2100
Weight		2200kgs

1.Can probe and cutting alloy wheels automatic. Can set start and end detection point by one key.

2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.

3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.

4.Can save program for next save models wheels, so no need to probe again for same model wheels. Can save time and money.

5.We offer detailed training video and manual with machine,you can learn the machine by yourself.

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 1 hours on work days, and within 4 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or You can let our seller know what is your request specification or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: Warranty is two year, but we will offer lifetime service for machine.
