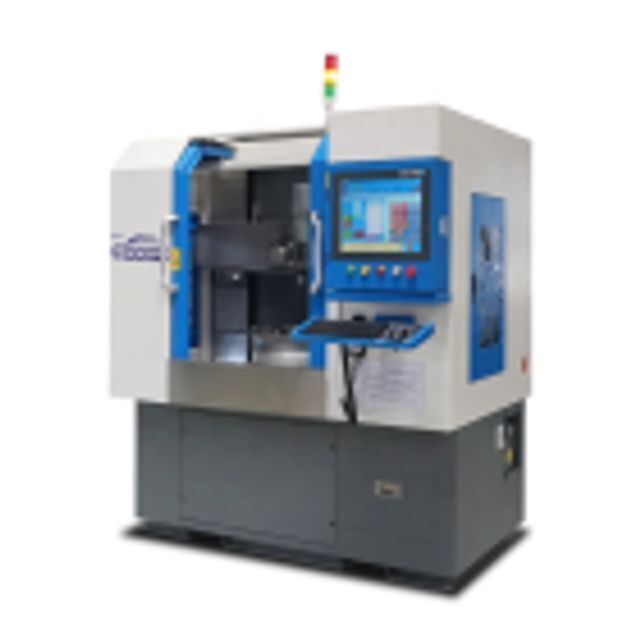

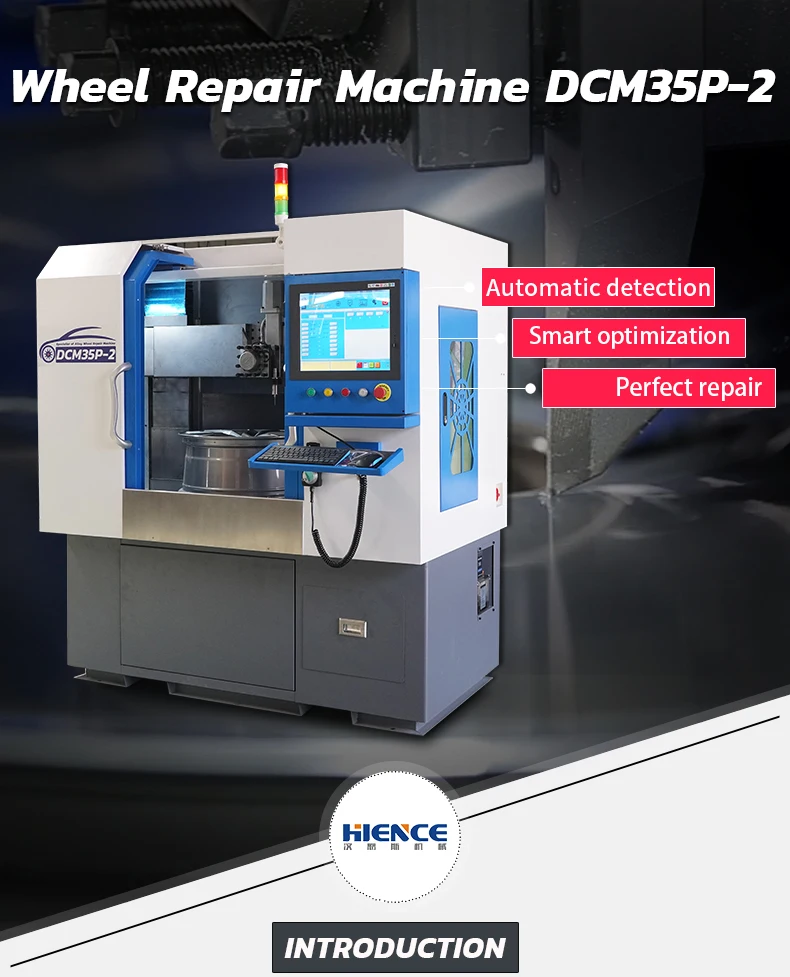

Top automatic vertical alloy wheel repair machine rim repair lathe for sale DCM35P-2

Supplier: Taian Hiscience Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Lee
Price: $16700.00 / 1 - 2 sets
$16200.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	12 Months;	Supply Ability:	50 Sets per Month;
Package Preview:	;	Function:	Rim Surface Repair;
Place of Origin:	Shandong, China;	Wheel repair size:	5-32inch;
Packaging Detail:	Standard export package wooden case;	Color:	Customized Option;
Product type:	Aluminium Wheel Repair Machine;	Chuck size:	320mm;
Payment Terms:	T/T;	CNC or Not:	CNC;
Turret Type:	4 Station Tool Post;	Brand Name:	HIENCE;
Port:	Qingdao;	Precision:	High precision;
Automatic Grade:	Automatic;

Our company developed the vertical wheel repair lathe. The machine covers a small space, can be designed to meet different space request. The 2 axis of wheel lathe adopt the most stable gantry structure.The structural body is made of cast iron and resin sand casting. The Z axis is driven by four linear guides, double ball screws and double servo motor. Meanwhile, the counterweight is used to balance the z-axis with a large load bearing capacity, which effectively ensures the influence of the two axes due to different stress structures. The cutting feed in the process of wheel repair can keep sensitive control response and achieve the perfect alloy wheel repair effect.

DCM35P-2 Wheel repair lathe Advantages:

l The Max.wheel repair size can up to 32 inch;

l Two-axis adopts linear guide rails and ball screws for precise control;

l The gantry structure can ensure perfect wheel repair effect from the center to the edge;

l Cast iron body, strong rigidity, avoiding the vibration texture caused by the wheel during the cutting process;

l Automatic tool holder: the tool and detection station conversion can be realized by CNC system;

l Guide rail and screw are fully closed and protected to avoid precision damage caused by the entry of aluminum chips;

l Automatic lubrication system is used for main moving parts;

l Can choose different machine appearance;

	ITEMS	DCM35P-2
Technical specifications	Max. wheel repairable size (inch)	5''~32''
Mechanical parts	X axis guide rail type/Number	Linear guide rail / Double
	X axis driving torque	6N·M
	Z axis guide rail type/Number	Linear guide rail / 4 pieces
	Z axis Driving motor power	2×6N·M
	Number of jaws	3 extended jaws
	Chuck diameter	320mm
Main drive	Range of spindle speed (RPM)	50~1500
Main drive	Rated total power	9KW
Feeding system	Max. Stroke of the X-axis(mm)	550
	Max. Stroke of the Z-axis (mm)	750
	Min. setting unit of motor	(Z) Long 0.001mm, (X) Cross 0.001mm
	Fast moving speed of tool post	(Z)Long 12m/min, (X) Cross 16m/min

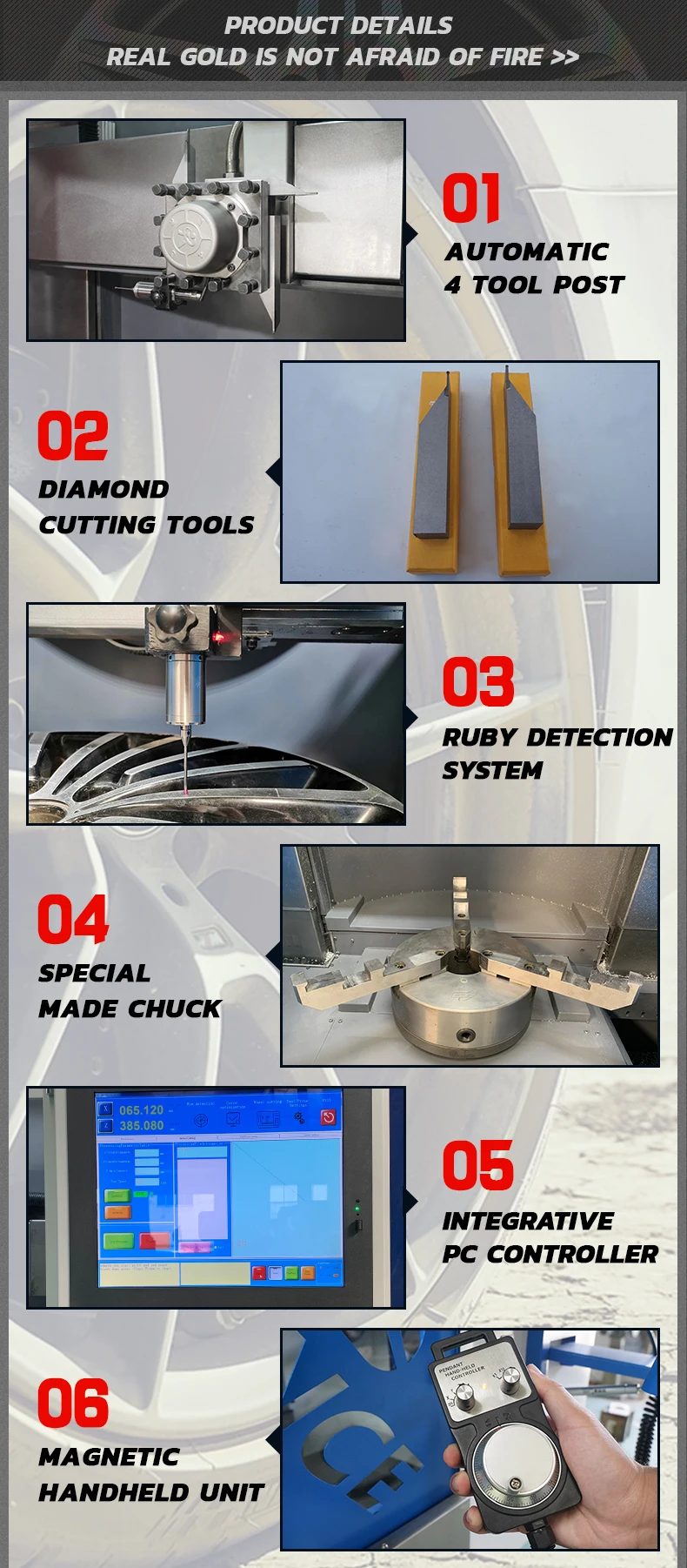

Tool post	Stations of tool carrier	4 position
	Max. size of tool post	25×25mm
	Tool holder control method	Automatic

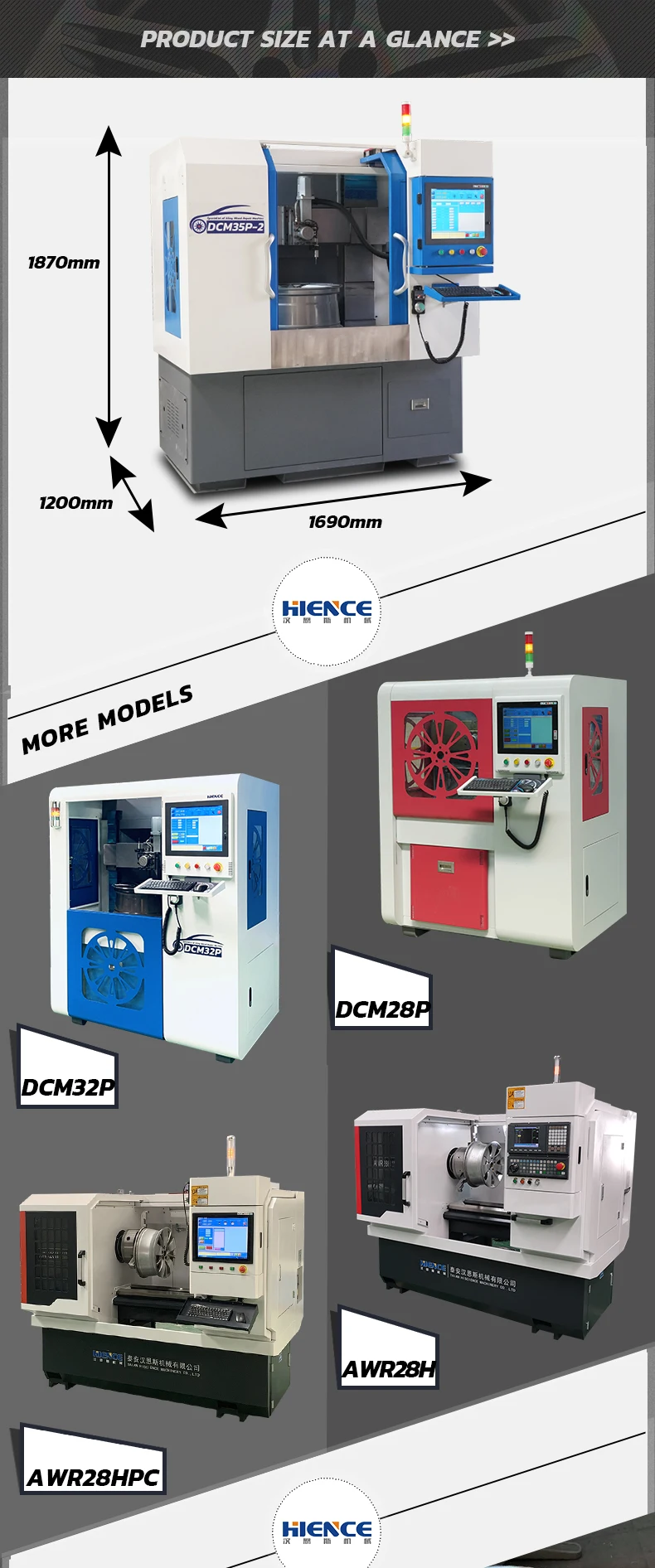

Machine size/weight	Machine size(L/W/H) (mm)	1690×1200×1870
Machine size/weight	Machine weight	1500KG
