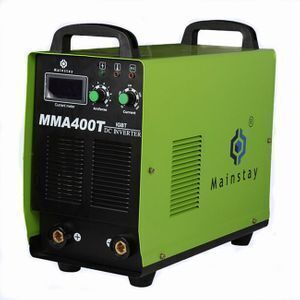

MMA-400T Carbon Steel Pipe Ring Welding Machine Hot Sale Welder
- 200.00 >=5 sets
| Certification: | CE CCC; | Supply Ability: | 1000 Set/Sets per Month; |
| Condition: | New; | Voltage: | 380V; |
| Power(W): | 7.6 KVA; | Packaging Detail: | Carton; |
| Brand Name: | TZBELIEVE; | Weight: | 28kg; |
| Name: | MMA-400T Carbon Steel Pipe Ring Welding Machine Hot Sale Welder; | Model Number: | MMA-400T; |
| Place of Origin: | Shandong China; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Usage: | Welding; | Payment Terms: | L/C,T/T; |
| Port: | QINGDAO; | Application: | welding machine; |
| Dimensions: | 565MM*286MM*500MM; | Delivery Detail: | 20 days; |
MMA-400T Carbon Steel Pipe Ring Welding Machine
Hot Sale Welder
1. HF inverter
2. DC 3ph
3.1 year warranty
4. OEM available
Features:
1. Limitless adjustment, easy to operate, easy to carry, economical, durable and reliable.
2. Stable electric arc, easy-controlled molten bath, artistic welded joint forming, automatic protection on overvoltage and overcurrent.
3. Continuous working, stable performance, has the function of automatic compensation on voltage undulate.
4. No-load loss is less than 10W, saves 50% energy compares to traditional welding machine.
5. Suitable to stainless steel product, decoration, hardware and so on to make the thin plate welding.
Applications:
The MMA-400T IGBT welder are widely used in stainless steel,carbon steel,low carbon steel,alloy,hardware and so on thin plate welding.
Technical Data:
| Model | MMA-400 |
| Rated input voltage | AC380V±10%,3ph 50/60Hz |
| Rated Input Power | 7.6KW |
| Rated output | 400A/36V |
| Range of welding current regulation | 40-320A |
| No-load voltage | 67V |
| Duty cycle | 60% |
| Efficiency | 85% |
| Power factor | 0.93 |
| Outer covering protection rank | IP21 |
| Insulation grade | B |
| Outlook size | 565x286x500mm |
| Weight | 28KG |
| No-load loss | 200w |
| Rod diameter | 2.0-5.0 |
Standard Configuration:

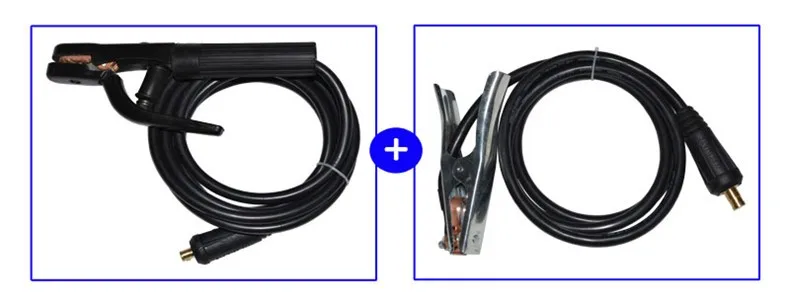

2pcs fast connector
