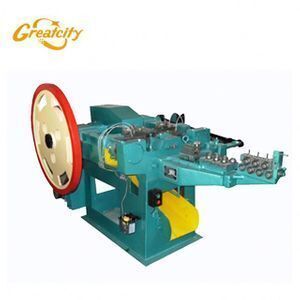

Steel Automatic Nail Making Machine for Making Nail and Screw

Supplier: Xingtai Judu Technology Co., Ltd.
Region: Hebei, China
Contact: Ms Mary Wang
Price: $5700.66 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/P,T/T,MoneyGram;	Place of Origin:	Hebei China;
size:	200014001400mm;	Applicable Industries:	Construction works ;
Max length:	80mm;	Packaging Detail:	steel nail making machine in standard export wooden box;
Warranty:	More than 5 Years;	After-sales Service Provided:	Engineers available to service machinery overseas;
Min diameter:	2.0mm;	Brand Name:	Greatcity;
Power (kW):	3;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Production Capacity:	300pcs/min;	Design output:	280pcs/min;
Key Selling Points:	Competitive Price;	Port:	Tianjin, Qingdao and so on;
keyword:	Nail and screw making machine;	Min length:	40mm;
Supply Ability:	100 Set/Sets per Month Automatic Nail Making Machine;	Max diameter:	3.7mm;
Condition:	New;

Steel Automatic Nail Making Machine for Making Nail and Screw

Product Description

Steel Nail Making Machine adopts plunger type structure to ensure high speed, low noise, less impact characteristics, Nail Making Machine can produce a variety of ordinary nails, rivets, cement nails and other round nails, In particular, it is possible to manufacture oil felt nails and other profiled nails for high quality welding machines and nail guns. The aircraft design is advanced, compact structure, beautiful appearance, easy to use, safe operation.

Processing of Steel Nail Making Machine

Steel Nail Making Machine is divided into four, the most important is the drawing.
Brushed - to buy after the nail to determine what kind of bar after the use of nails, such as new steel bars, scrap steel, etc. Waste bar drawing more trouble, as new steel so fast, but the cost of waste steel it is very The finished wire is brushed and the speed is quicker, eliminating some of the manpower. The speed of the nail is also very fast.
Nail Making - the wire after a good, through the automatic wire head, and then pull the wire and then send the head inside the machine to produce a good semi-finished product nails.
Polished - put the finished semi-finished nail into the polishing machine inside the polishing, polishing machine into the sawdust, paraffin, gasoline and some chemical raw materials, after the impact of friction.
Packaging - the above three are important, the packaging can be based on the user's own needs from the tailored.

Technical Parameters

Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5.5C
Power	1.5KW	2.2KW	3KW	5.5KW	5.5KW
Capacity	600pcs/min	450pcs/min	300pcs/min	220pcs/min	150pcs/min
Length of nail	1-30mm	20-50mm	40-80mm	50-120mm	80-180mm
Diameter of nail	0.8-2.2mm	1.8-2.8mm	2.0-3.5mm	2.5-4.5mm	3.0-5.5mm
Weight	450kg	750kg	1005kg	1700kg	2500kg
Size	0.90.81m	1.711m	1.91.21.2m	2.41.51.3m	2.61.581.66m

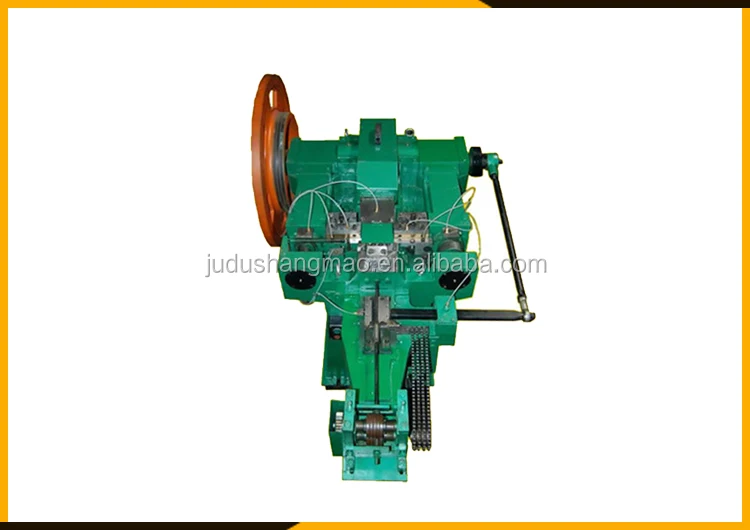

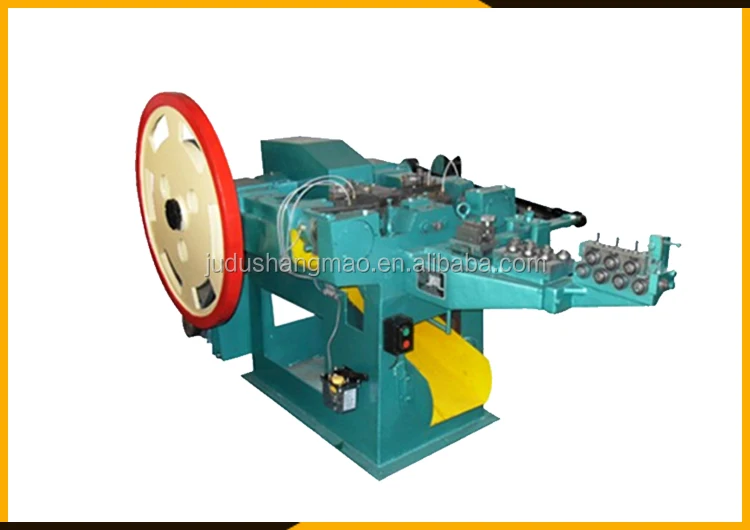

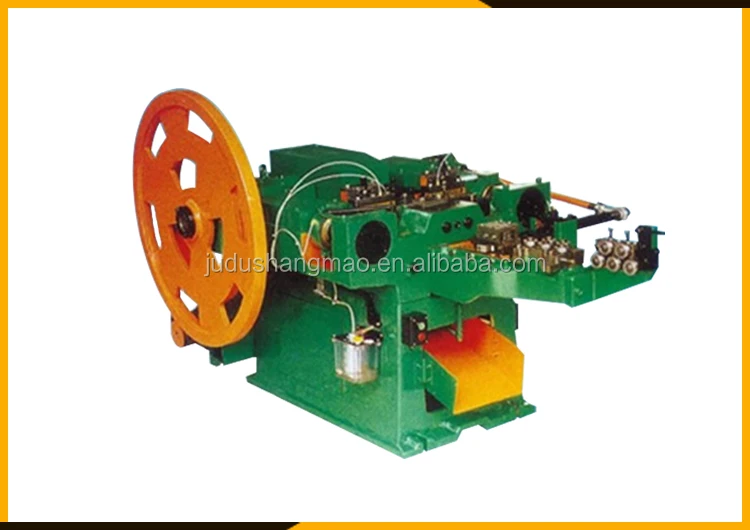

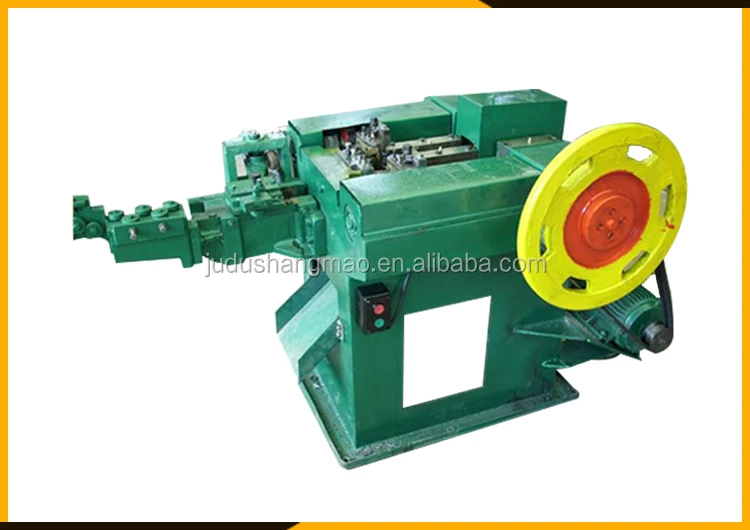

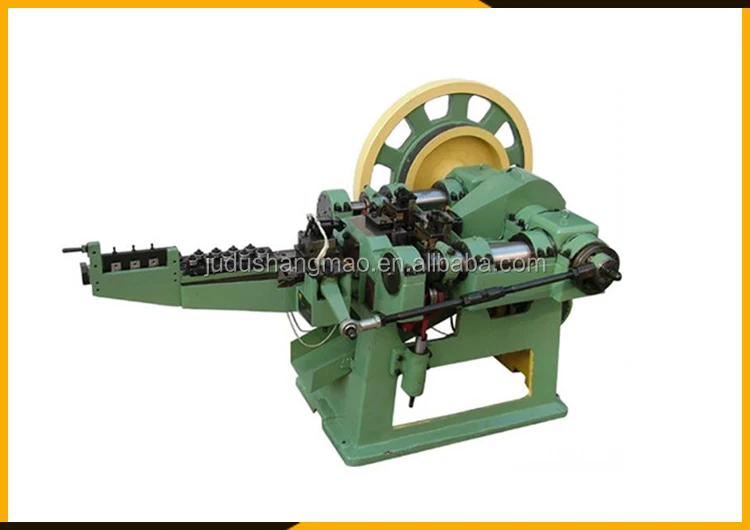

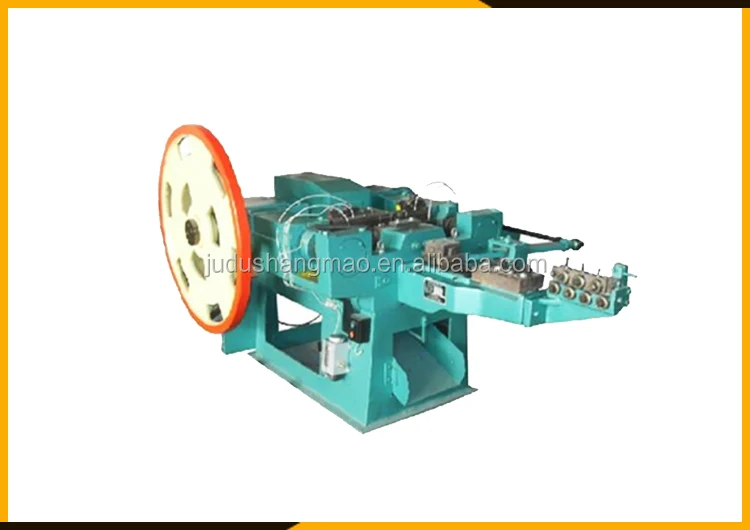

Product Images

Packaging & Shipping

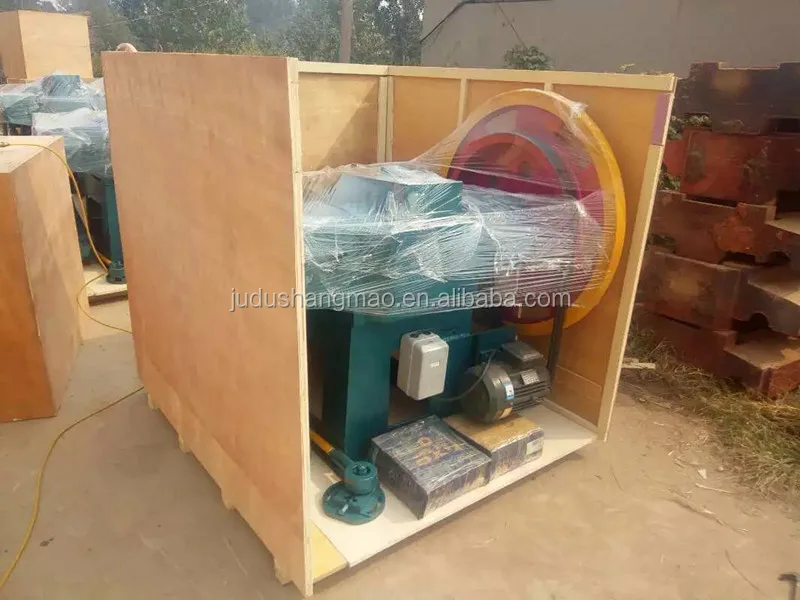

Package:Wooden package .
Shipping way:Every Steel Nail Making Machine will be tested before sending out and you can choose the shipping way of by sea,by air or by land.

Our Services

Service before sale
1, 24 hours online .Your inquiry will be quickly reply by email, Wechat or Whatsapp .
2,Will offer you the professionally and patiently introduction,details pictures and working video of Steel Nail Making Machine.
Service on sale
1,Test every machine and inspect the machine seriously .
2,We will send you the delivery pictures and testing for the Steel Nail Making Machine.
Service after sale
1, Free insurance for goods
2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem.
