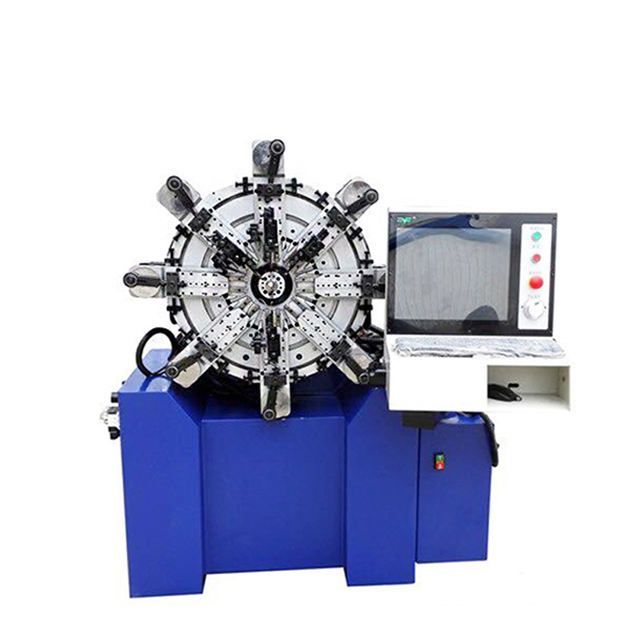

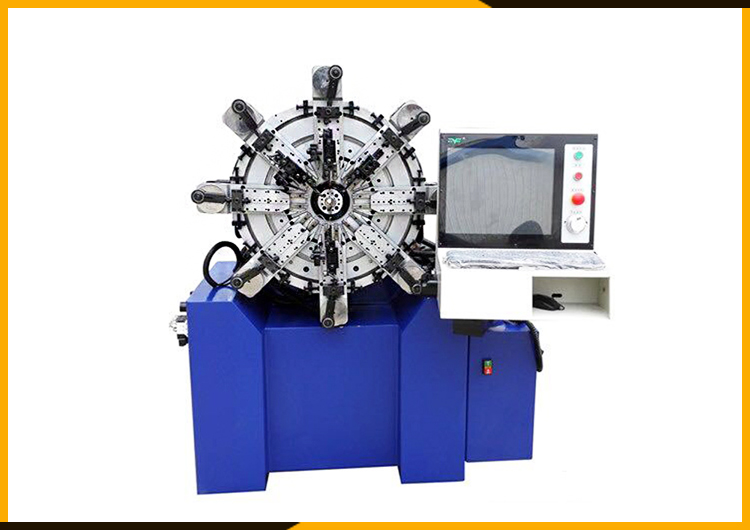

CNC tension spring coiling machine spring forming machine

Supplier: Xingtai Judu Technology Co., Ltd.
Region: Hebei, China
Contact: Ms Mary Wang
Price: $14999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Origin:	Hebei china	Warranty:	3 years
Power (kW):	9.4	Marketing Type:	factory supplier
Core component warranty:	3 years	Wire diameter:	0.2-2.3
Video outbound inspection:	if	Voltage:	can be customized
Health status:	new	Mechanical test report:	if
payment terms:	L/C, Western Union, D/P, T/T, MoneyGram	axis:	10
Feed length:	unlimited	Maximum feeder:	10000 mm
Applicable industries:	Energy and Mining, Household, Printing Store, Food and Beverage Store, Hotel, Food and Beverage Factory, Retail, Farm, Construction Works, Clothing Store, Restaurant, Building Supply Store, Food Store, Advertising Agency, Machinery Repair Shop, Manufacturing Plant, Other	Dimensions (LWH):	11006001600 mm
brand:	great city	Showroom location:	Canada
application:	making springs	product name:	CNC spring machine
Packaging Details:	export wood packaging	Weight (kg):	960
Minimum feeder:	0.01mm	Main selling points:	10 axis
Supply capacity:	30 sets per month	Maximum outer diameter:	50 mm
computer system:	industrial computer	Wire feeding speed:	120m/min
Core components:	PLC, bearing, motor	port:	Tianjin

CNC Coil Spring Machine Spring Manufacturing Machine Extension Spring CNC Spring Forming Machine

Product Description

CNC Coil Spring Machine Spring Manufacturing Machine Extension Spring CNC Spring Forming Machine

CNC spring machineSpecializing in the production of various springs with high precision and fast speed.

CNC spring machineImported servo motor and high-quality control system are adopted.

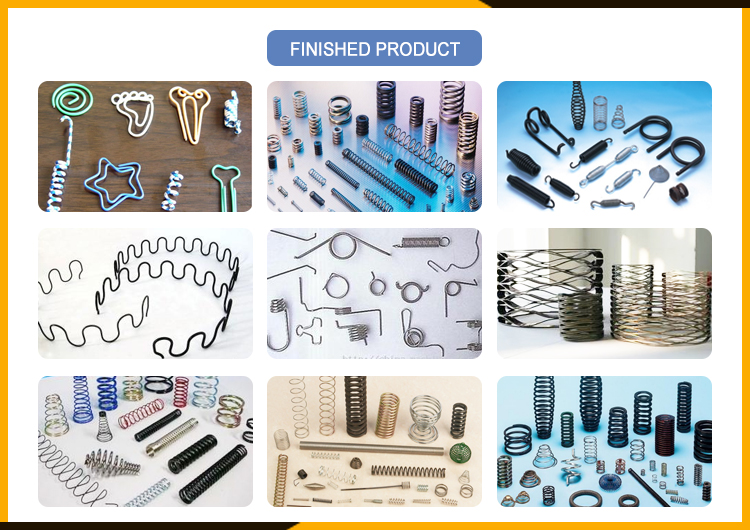

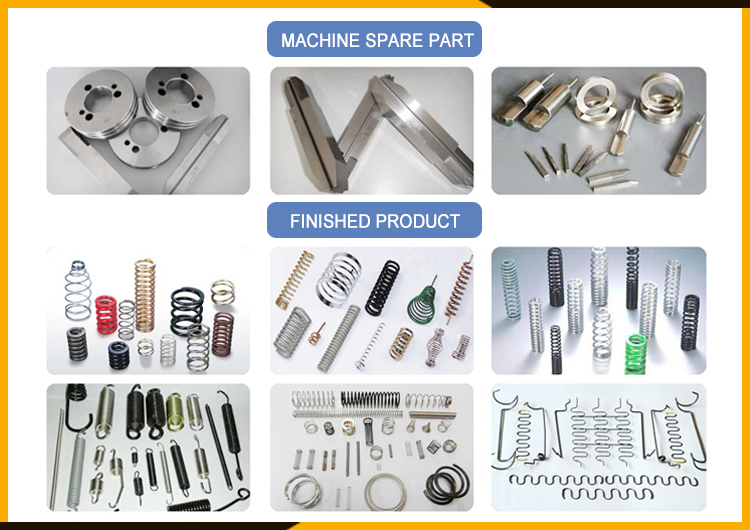

It can produce various compression springs, torsion springs, tension springs, special-shaped springs and other wire forms.

advantage:

1. Ten servo motorsCNC spring machineIndependently control eight stations for core rotation and wire feeding. It is a fast-adjusting machine, which is more than 50% faster than the convex turbine and 10% faster than similar machines.

2.CNC spring machineWith high-precision wire feeding box

3.CNC spring machineWith unique bilateral support of the eccentric shaft, the large production diameter spring is more stable.

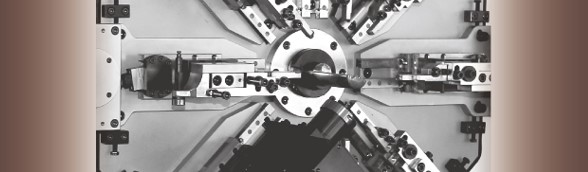

4. Knife seatCNC spring machineIt is composed of parallel double slides, and the lateral movement speed is fast. is a more flexible regulation machine

5. It adopts the world-renowned servo reducer for supporting transmission, high precision, maintenance-free, and has the same long life as the servo motor.

Technical Parameters

CNC Coil Spring Machine Spring Manufacturing Machine Extension Spring CNC Spring Forming Machine

CNC Spring Machine, CNC Spring Making Machine, CNC Spring Machine

Model	ZD23-10CNC spring machine
Wire diameter	0.2-2.3mm
wire feed	10000 mm
Minimum wire feed	0.01 mm
speed	120m/min
wire length	unlimited
Axis number	10 axis
strength	9.4 kW
Voltage	380v/customizable
software	industrial computer
program storage	more than 2000
air pressure	5-6 kg/cm
detection	3 pieces

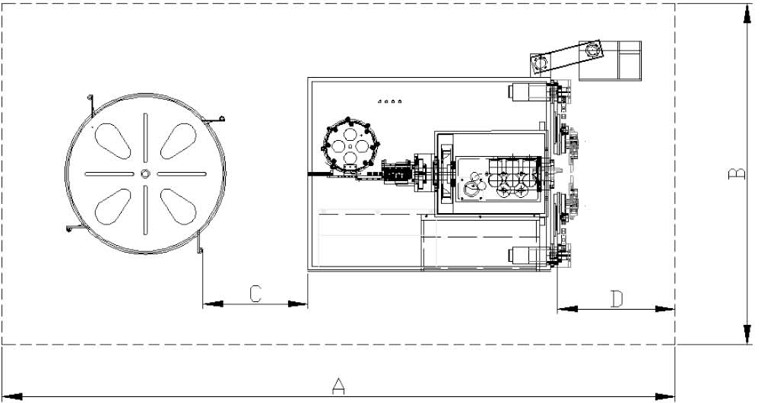

length	1200mm
width	1250mm
high	1760 mm
weight	960 kg
