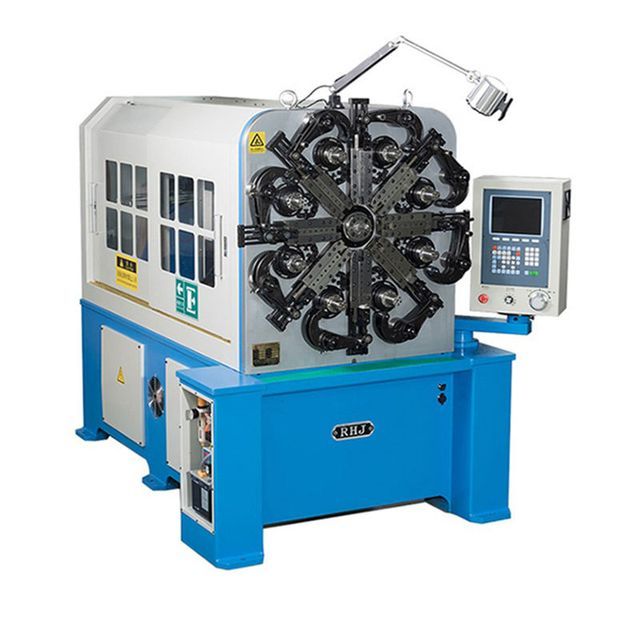

RHJ RH-650Z CNC Spring Coil Spring Manufacturing Equipment
- 60000.00 1 - 9 sets
- 50000.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Core components: | PLC, bearings, motors, gears | Supply capacity: | 10 sets per month |
| Video outbound inspection: | if | Core component warranty: | 1 year |
| Main selling points: | automatic | Motor type: | Japanese servo motor |
| Applicable industries: | other | Mechanical test report: | if |
| Weight (kg): | 4000 | Origin: | Zhejiang, China |
| port: | Ningbo Port | Showroom location: | Türkiye, India, Spain, Uzbekistan |
| Number of axes: | multi-axis | Type of machine: | automatic spring machine |
| brand: | Relative humidity | Voltage: | Three-phase 380±10%V.AC.50HZ |
| Warranty: | 1 year | Health status: | new |
| Weight (kg): | 4000 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Marketing Type: | normal product | Power (kW): | 20.8 |
Product Description

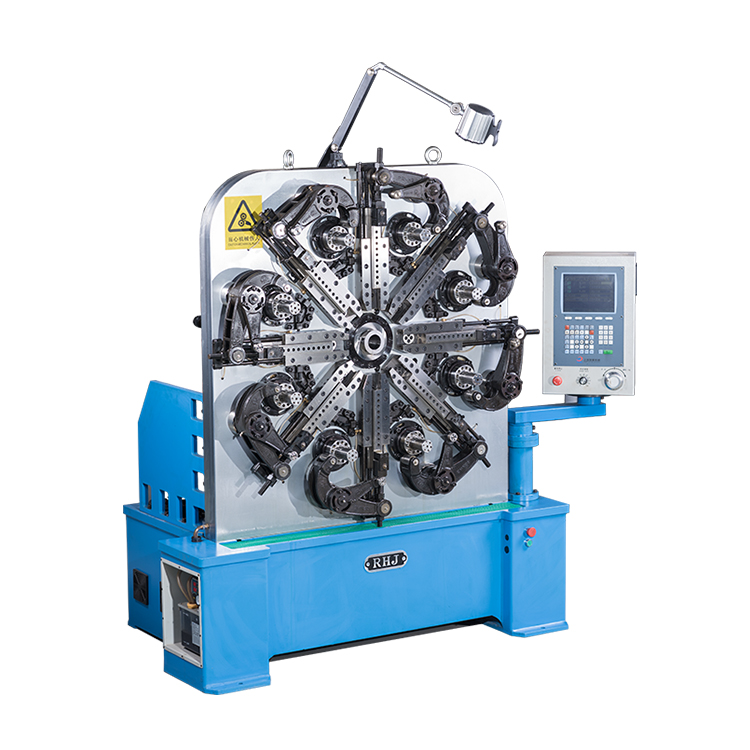

RH-625Z/635Z/645Z CNC spring machine (360° wire rotation function)
1. The wire feeding has a 360° rotating wire feeding function, which is easy to adjust.
2. Equipped with computer control system imported from Taiwan and servo motor imported from Japan.
3. Equipped with a precious inspection and tracking device, it will automatically stop working when unqualified products are found.
4. Parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescent screen.
5. Suitable for the production of double torsion springs, straight springs, pagoda-shaped compression springs, rectangular springs, and eddy current springs
Springs and other special-shaped springs, special-shaped springs, etc.
2. Equipped with computer control system imported from Taiwan and servo motor imported from Japan.
3. Equipped with a precious inspection and tracking device, it will automatically stop working when unqualified products are found.
4. Parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescent screen.
5. Suitable for the production of double torsion springs, straight springs, pagoda-shaped compression springs, rectangular springs, and eddy current springs
Springs and other special-shaped springs, special-shaped springs, etc.
Specification
type | RH-625Z | RH-635Z | RH-645Z | ||
Coil wire diameter (mm) | φ0.3~φ2.5 | φ1.5~φ3.5 | φ2.0~φ4.5 | ||
Rotating wire diameter (mm) | φ1.0~φ2.5 | φ1.5~φ3.5 | φ2.0~φ4.5 | ||
Maximum outer diameter of coil spring (mm) | φ50 | φ60 | φ85 | ||
Wire feeding command value (mm) | ±0.01~±9999.99 | ||||
Cam command value | ±0.1°~±359.9° | ||||
storable system | 99 groups | ||||
Motor power (kw) | XY axis 2.7 Z axis 1.0 A axis 2.7 | XY axis 5.5 Z axis 1.0 A axis 5.5 | XY axis 7.5 Z axis 1.0 A axis 5.5 | ||
Weight (kg) | 1500 | 2000 | 3500 | ||
Voltage | Three-phase 380±10%V.AC.50HZ | ||||
