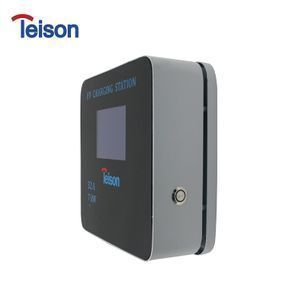

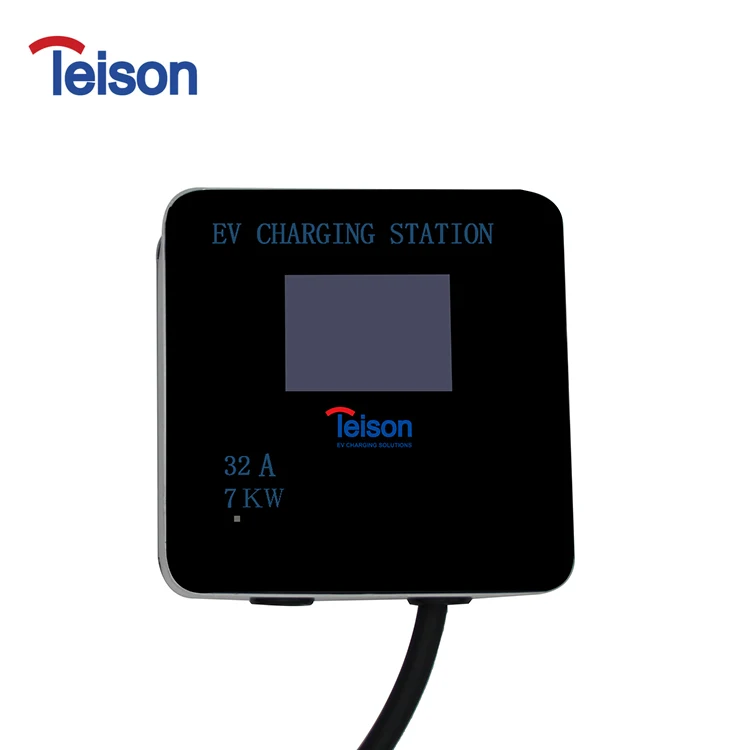

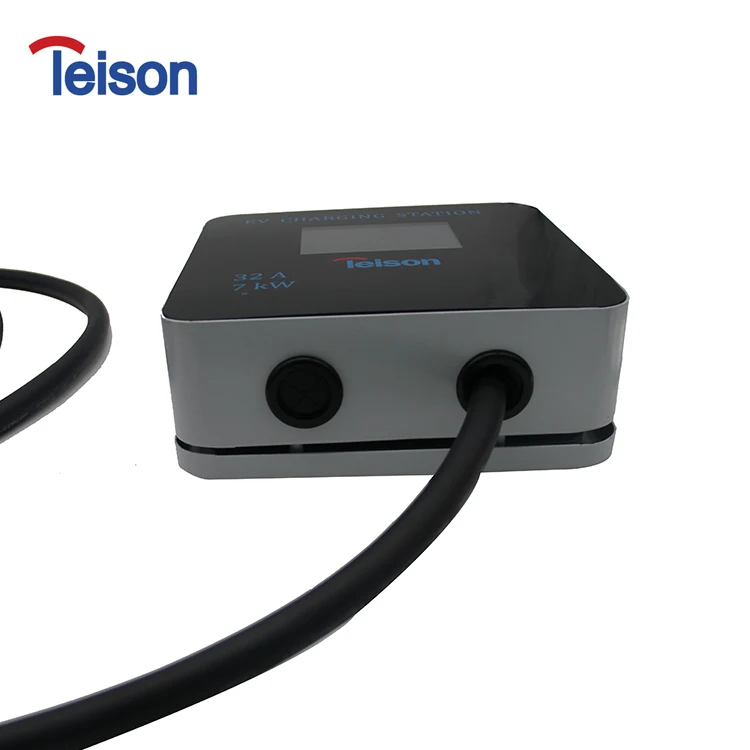

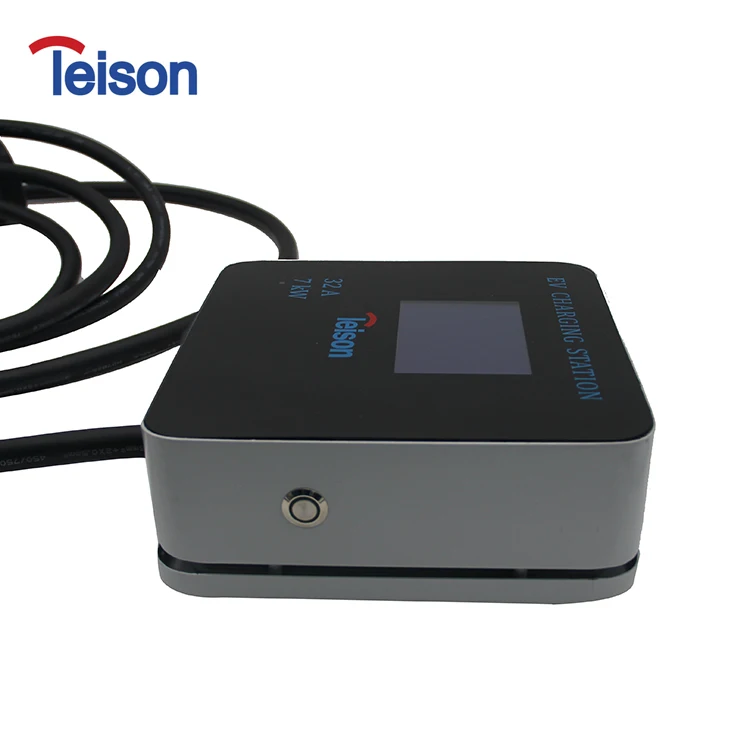

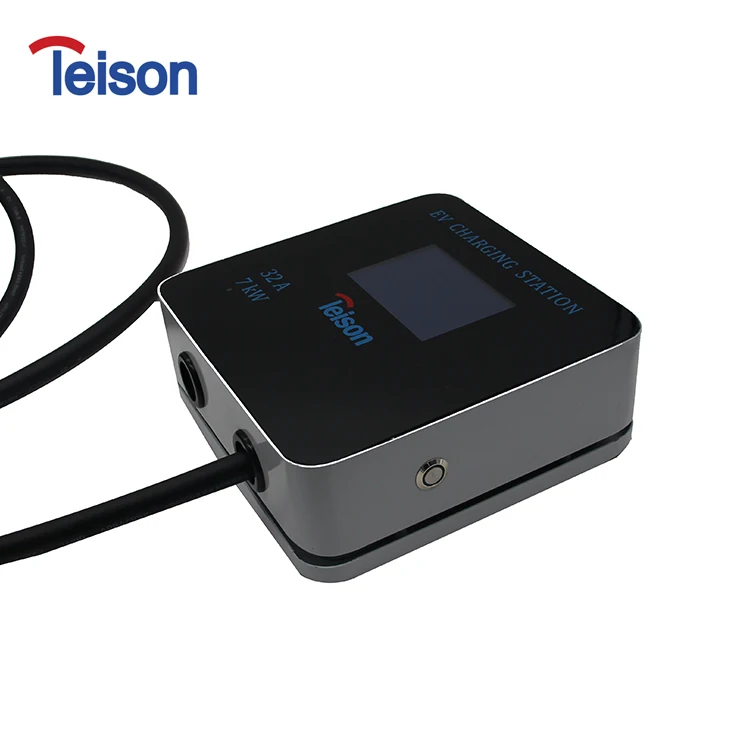

Teison Hot Selling 32A 7.2KW LCD Display Wall Mounted EV Charging Station Wall Box EV with Type2 Socket

Click here to contact

Product details

Operating Temperature:	-30 ℃ to ~60 ℃;	Product name:	EV charging station;
Storage Temperature:	-40 ℃ to +80 ℃;	Input Voltage:	230V±20%;
Brand Name:	Teison;	Total Power:	7.4KW;
Output Voltage:	230V±20%;	Protection Class:	IP65;
Model Number:	TS-EVC07-001;	Packaging Detail:	Teison Hot Selling 32A 7.2KW LCD Display Wall Mounted EV Charging Station Wall Box EV with Type2 Socket by film in carton;
Supply Ability:	2000 Piece/Pieces per Month chademo charger station;	Output Current:	32A;
Port:	Shanghai or Ningbo;	Phase:	1 phase;
Place of Origin:	Jiangsu China;	Certificate/Compliance:	IEC 61851-1: 2017,EN 62196-2: 2017;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Teison Hot Selling 32A 7.2KW LCD Display Wall Mounted EV Charging Station Wall Box EV with Type2 Socket
Product Name		7KW EV Charging Station
Product Item No.		TS-EVC07-001
Power Input	Input Voltage	230V±20%
Power Output	Phase	1Phase
	Output Voltage	230V±20%
	Output Current	32A
	Total Power	7.4KW
Protection		Short circuit protection,Leakage current protection,Over voltage and under voltage protection,Over current protection, Over temperature protection,Ground protection,Lightning protection
Control	Charging Interface	Type2/Type1
Environmental	Operating Temperature	-30 ℃ to +60 ℃
	Storage Temperature	-40 ℃ to +80℃
	Humidity	5%-95% without condensation
	Altitude	≤2000m
Mechanical	Protection Class	IP65
	Weight	3.51/2.71kgs
	Socket	Type2
	Housing Material	Galvanized steel or Aluminium Alloy
	Dimension(WxHxD)	20020081mm
Regulation	Certificate/Compliance	IEC 61851-1:2017,EN 62196-2:2017
Cable	Length	5m
Cable	Cable Specification	36mm²+20.5mm²
