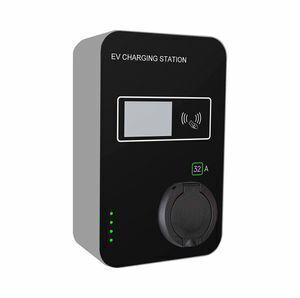

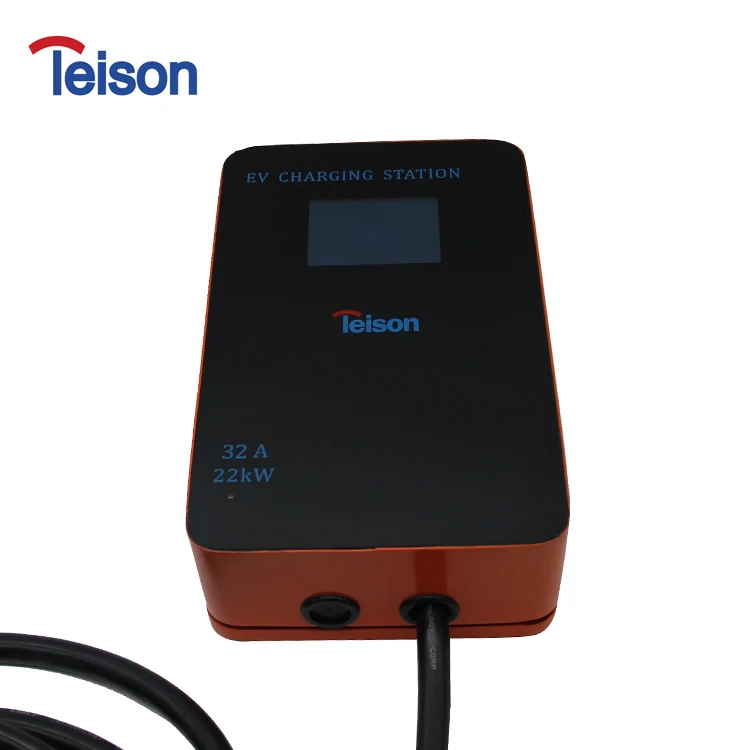

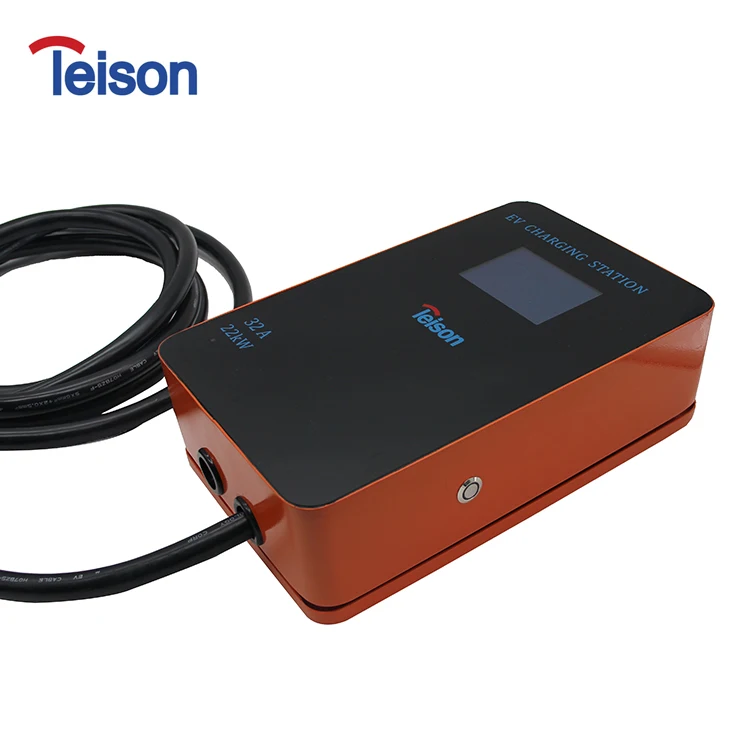

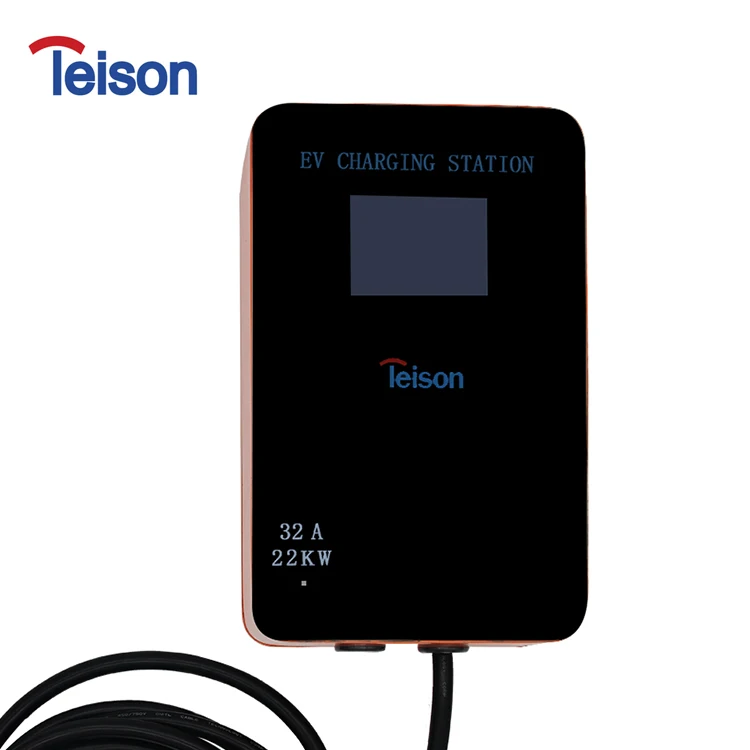

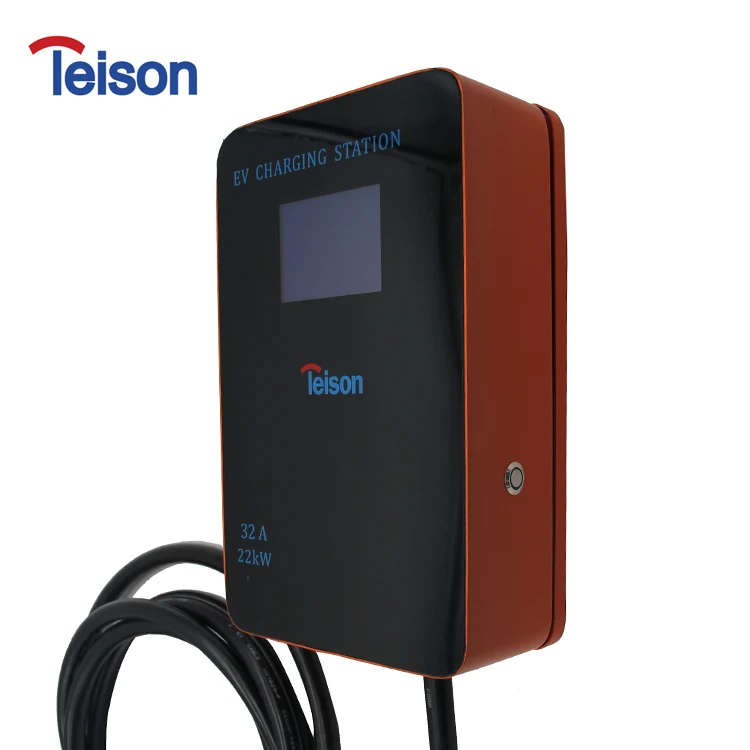

Teison Fast Home electric vehicle charging Pile wallbox partners 22kw 32a ev charger stations

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Frequency range:	50Hz±5Hz;
Insulation resistance:	>10MΩ;	Packaging Detail:	Packages: 1pc/carton, 350mm490mm290mm,6kg/carton Teison Fast Home electric vehicle charging Pile wallbox partners 22kw 32a ev charger stations;
Input power voltage:	single-phase 230V;	Output voltage range:	single-phase 220V±20%;
Port:	Shanghai or Ningbo;	Model Number:	TS-EVC22-001S;
Product name:	EV charging station;	Place of Origin:	Jiangsu China (Mainland);
Socket's connecting plug:	Standard European standard tyep1/2;	Max output current:	32A;
Customized service:	Logo or Color;	Supply Ability:	2000 Piece/Pieces per Month;
Output voltage:	single-phase 230V;	Brand Name:	EV Teison;
Input power voltage range:	single-phase 220V±20%;

Teison Fast Home electric vehicle charging Pile wallbox partners 22kw 32a ev charger stations
Product Name		7KW EV Charging Station
Product Item No.		TS-EVC07-001S
Power Input	Input Voltage	230V±20%
Power Output	Phase	1Phase
	Output Voltage	230V±20%
	Output Current	32A
	Total Power	7.4KW
Protection		Short circuit protection,Leakage current protection,Over voltage and under voltage protection,Over current protection, Over temperature protection,Ground protection,Lightning protection
Control	Charging Interface	Type2
Environmental	Operating Temperature	-30 ℃ to +60 ℃
	Storage Temperature	-40 ℃ to +80℃
	Humidity	5%-95% without condensation
	Altitude	≤2000m
Mechanical	Protection Class	IP65
	Weight	3.51/2.71kgs
	Socket	Type2
	Housing Material	Galvanized steel or Aluminium Alloy
	Dimension(WxHxD)	32020095mm
Regulation	Certificate/Compliance	IEC 61851-1:2017,EN 62196-2:2017
